Crankshaft Position Sensor: Removal

The sensor is located at the rear lower passenger side of motor (Fig 1).

1. Disconnect electrical connector from crankshaft position sensor (Fig 2).
2. Remove sensor mounting bolt.
3. Pull sensor out. A light tap to top of sensor may ease removal.
   Fig 1: Identifying Crankshaft Position Sensor

   Courtesy of DAIMLERCHRYSLER CORP.

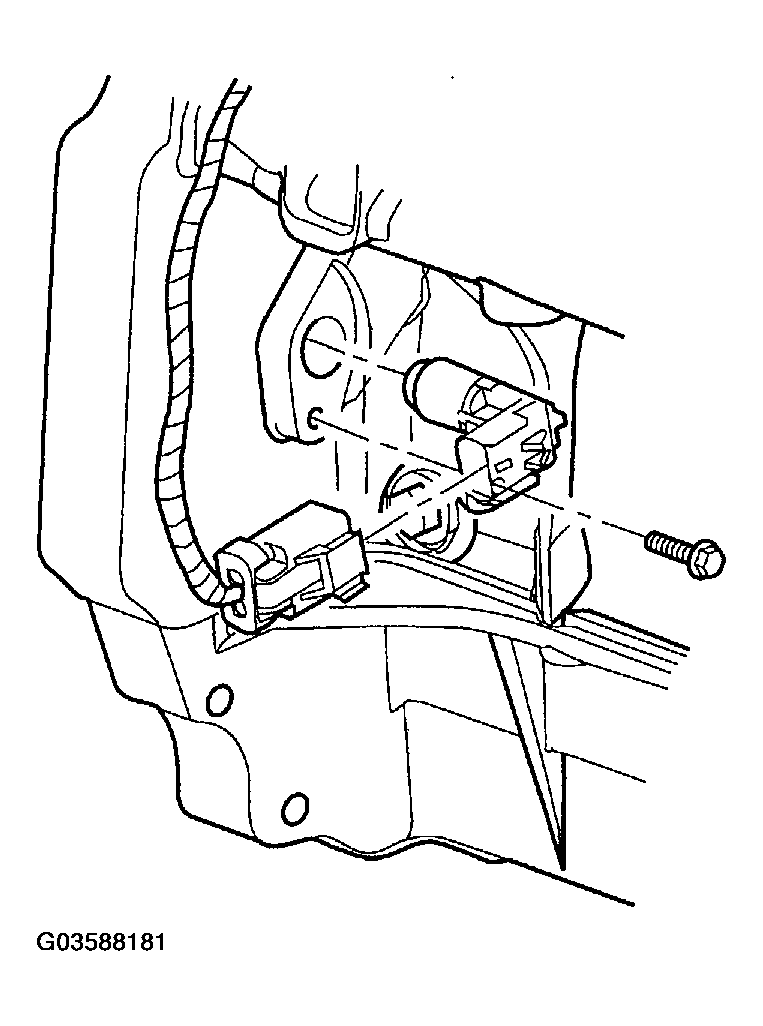

   Fig 2: Disconnecting Crankshaft Position Sensor Assembly

   Courtesy of DAIMLERCHRYSLER CORP.
