Throttle Cable: Installation

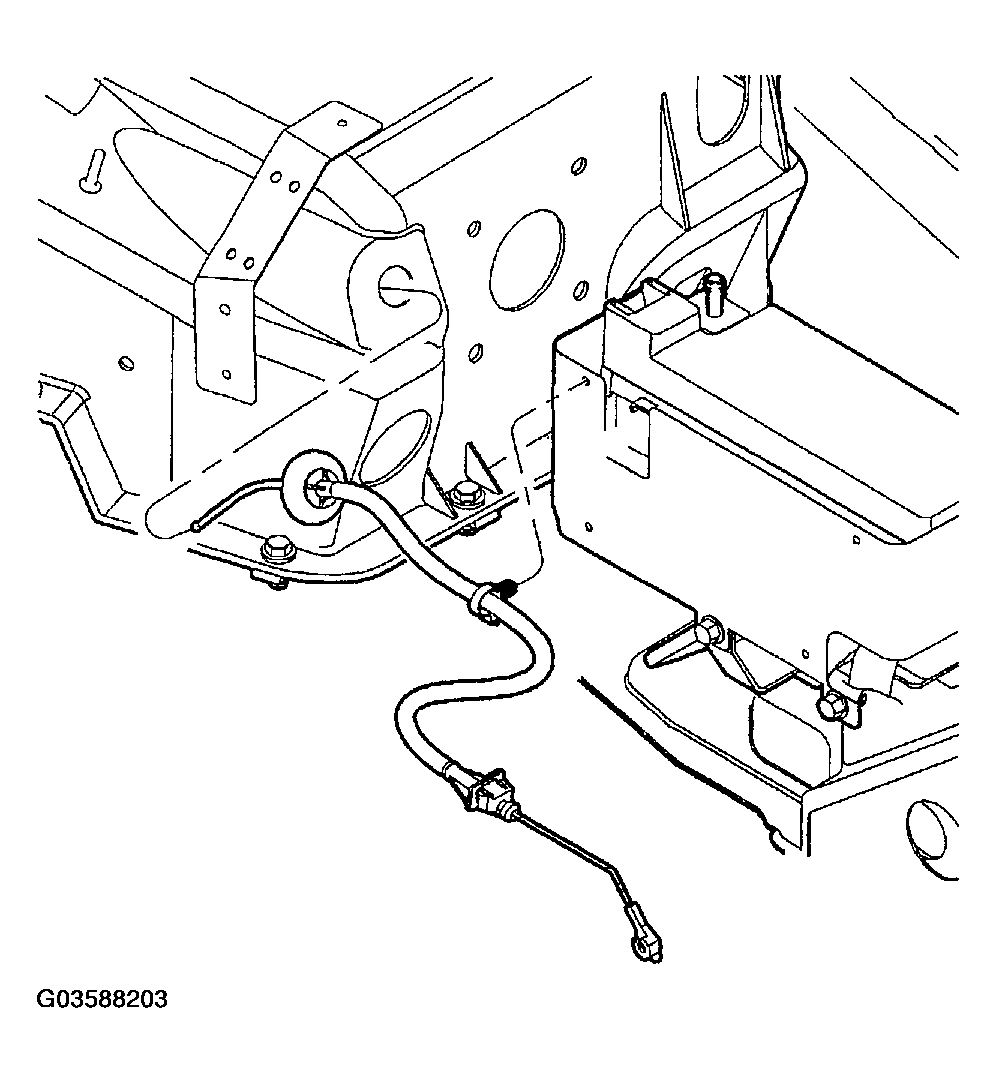

Insert cable assembly through opening in dash panel (Figure). Seat cable retainer in dash panel.

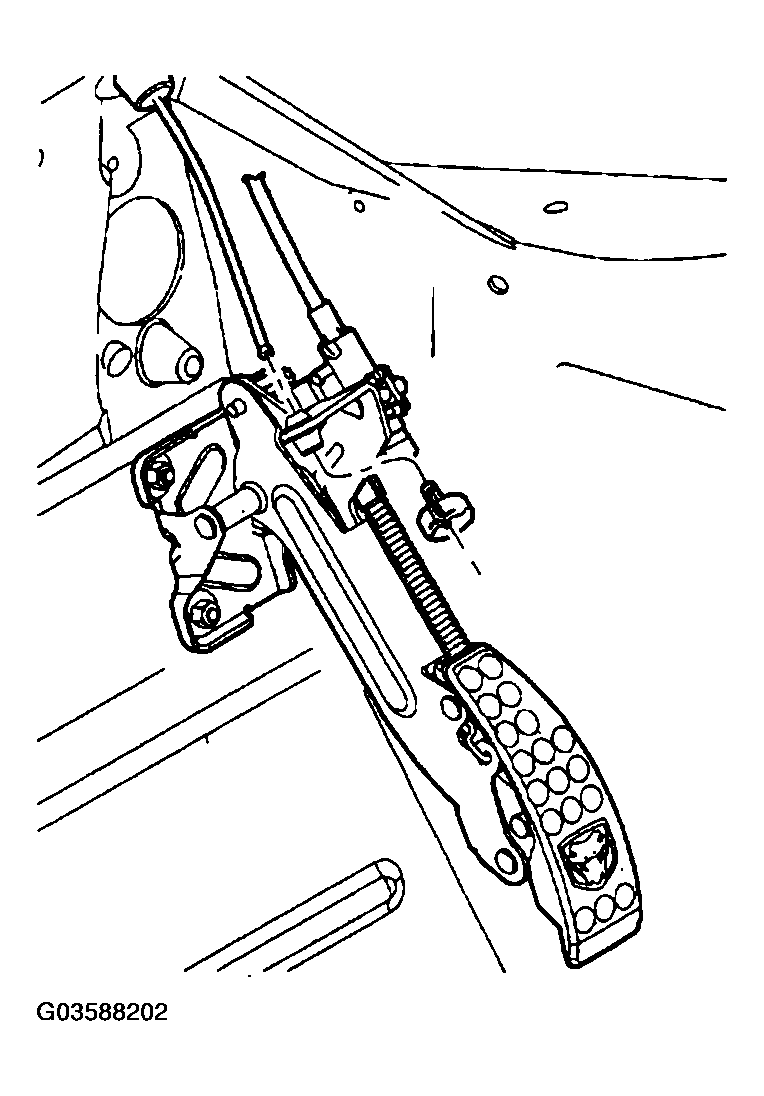

From inside the vehicle, hold up the pedal and install the throttle cable and cable retainer in the upper end of the pedal shaft (Figure).

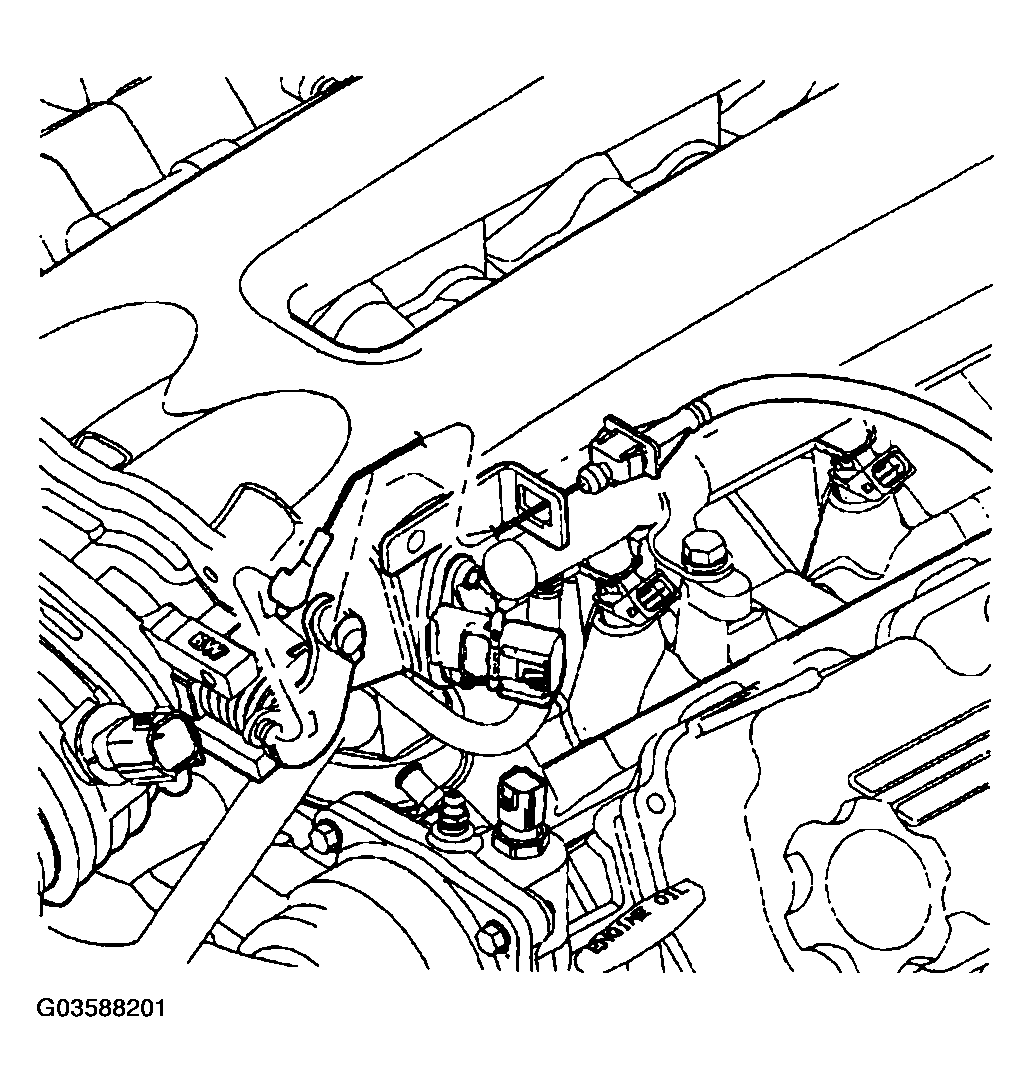

Connect the throttle cable to the throttle body (Figure).
