Clutch Interlock Switch - DK.Green 2 Way
Clutch Interlock Switch - DK.Green 2 Way

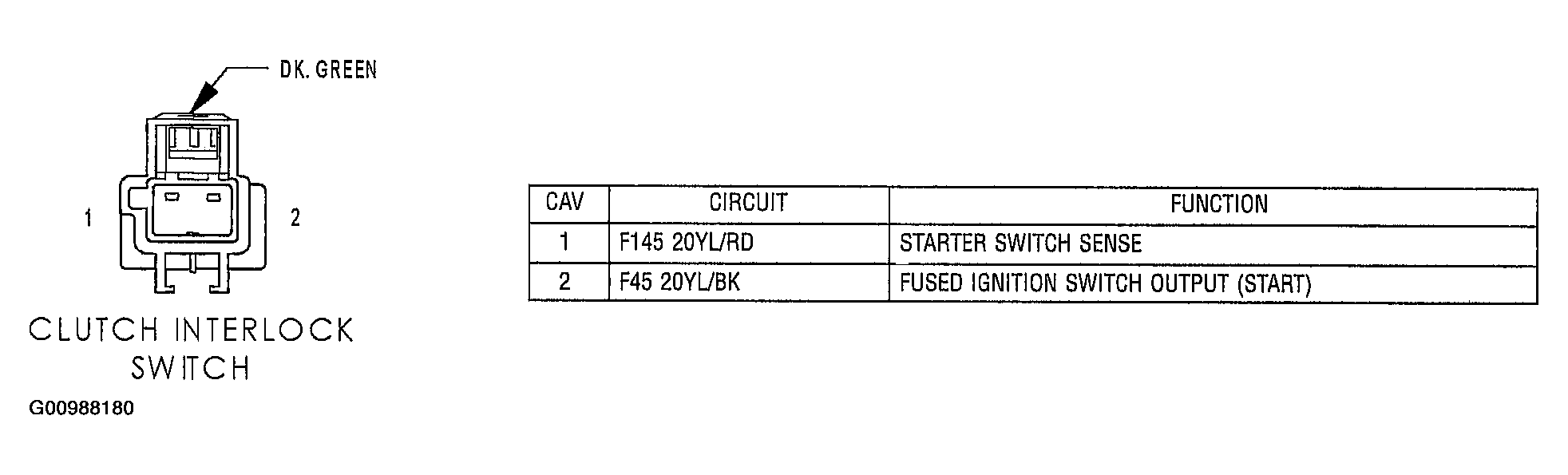

Fig 1: View Of Clutch Interlock Switch 2 Way Connector Pinouts And Function Description Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
