Data Link Connector - Black 2 Way

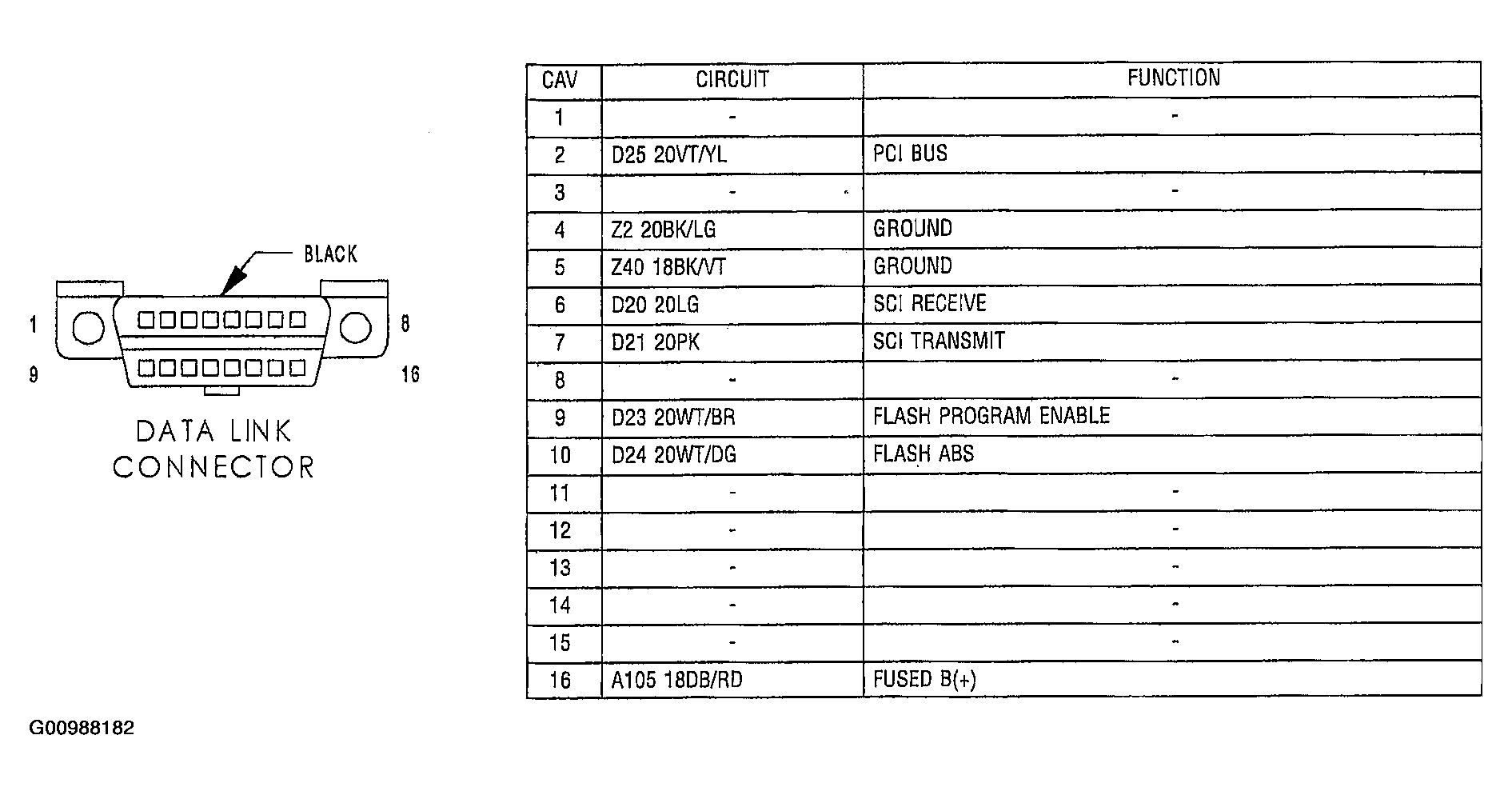

Fig 1: View Of Data Link Connector 2 Way Connector Pinouts And Function Description Chart
G00988182Courtesy of DAIMLERCHRYSLER CORP.
