Tire Pressure Monitor Module-Blue 6 Way
Tire Pressure Monitor Module-Blue 6 Way

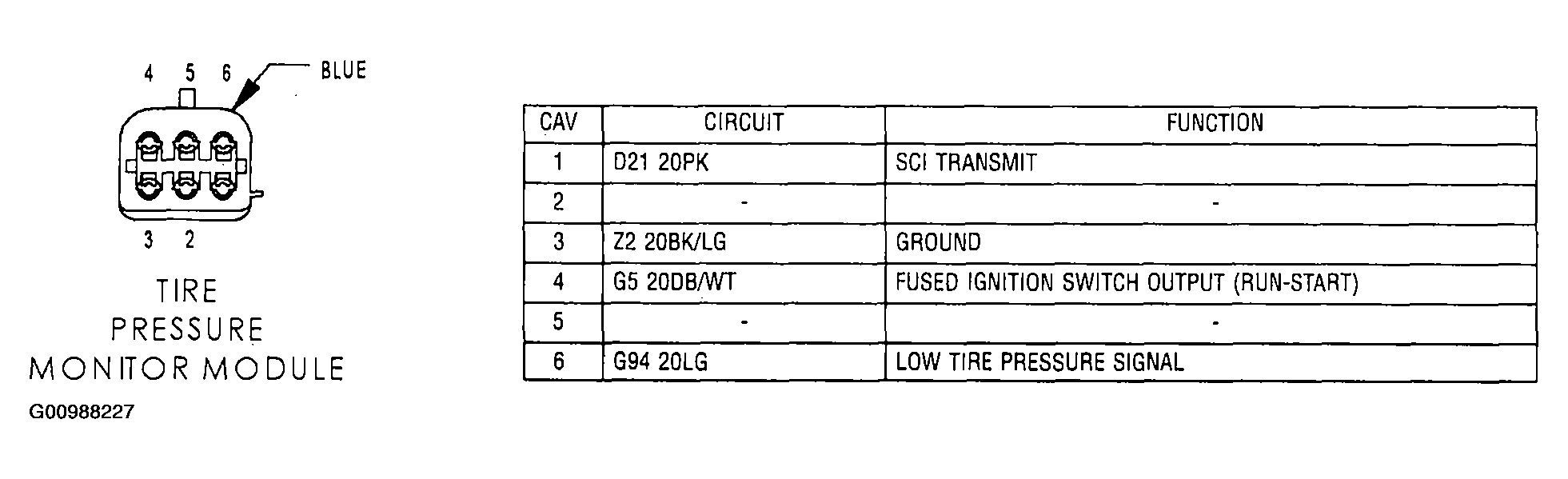

Fig 1: View Of Tire Pressure Monitor Module 6 Way Connector Pinouts And Function Description Chart
Courtesy of DAIMLERCHRYSLER CORP.
