Powertrain Verification Test VER-1
Powertrain Verification Test VER-1

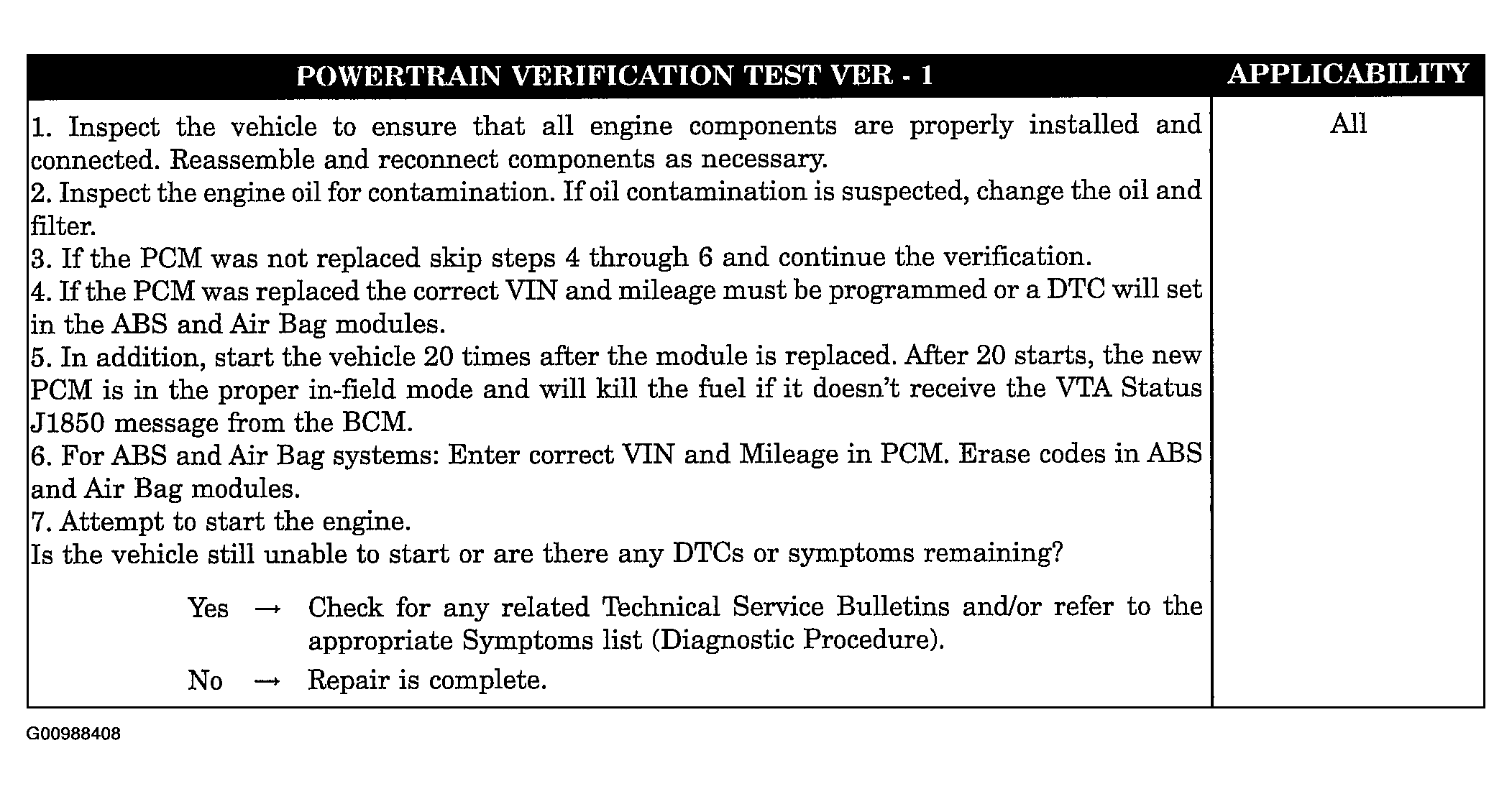

Fig 1: Powertrain Verification Test VER-1 Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
