Installation - 2.4L

The fuel rail must be removed first. Refer to REMOVAL .

1. Before installing an injector the rubber O-ring must be lubricated with a drop of clean engine oil to aid in installation.
2. Install injector clip by sliding open end into the top slot of the injector. The edge of the receiver cup will slide into the side slots of clip.
3. Install injector top end into fuel rail receiver cap. Be careful not to damage O-ring during installation. See Fig 1.
4. Repeat steps for remaining injectors.
5. Connect fuel injector wiring.

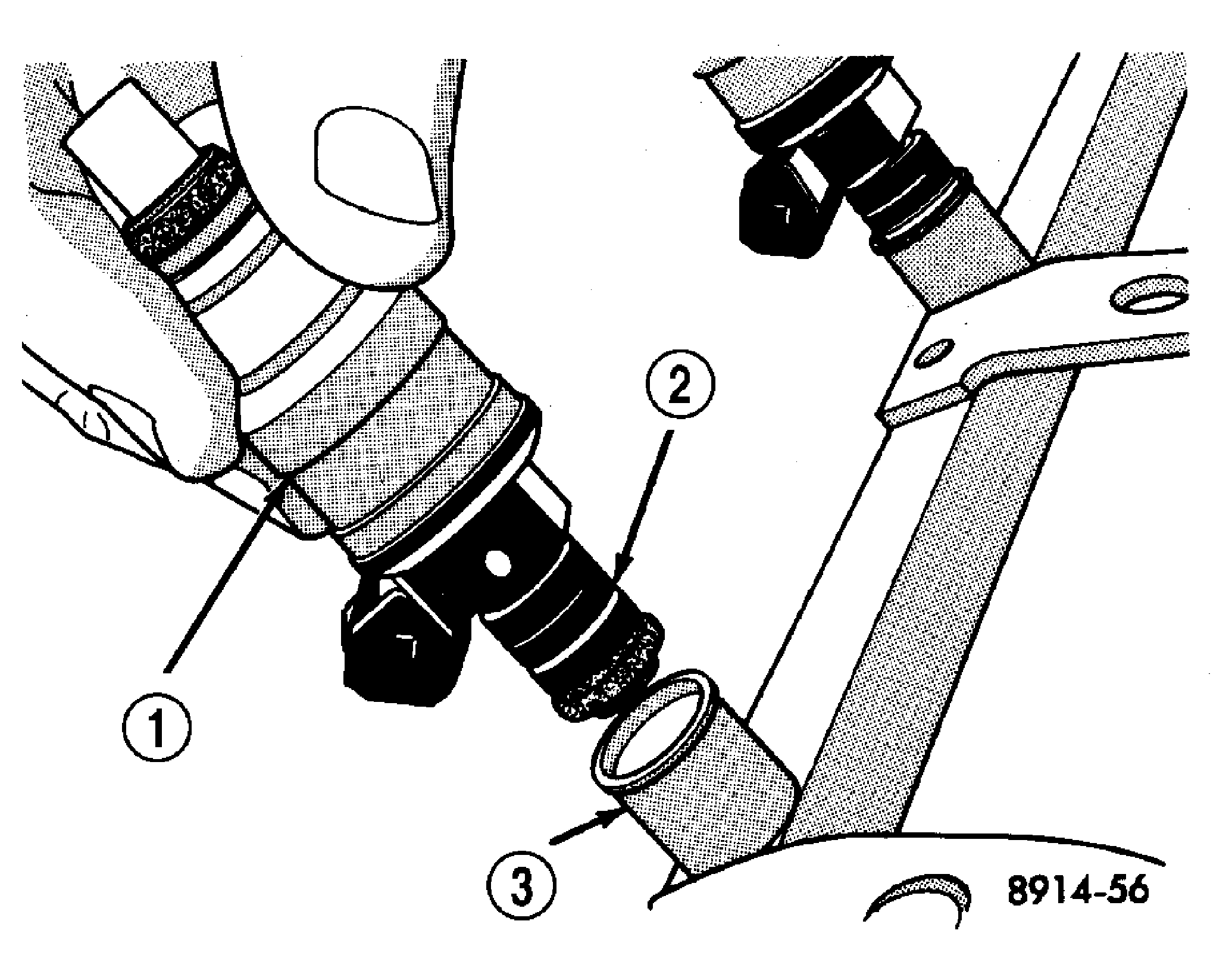

Fig 1: Servicing Fuel Injector Typical

Courtesy of DAIMLERCHRYSLER CORP.
