Firing Order

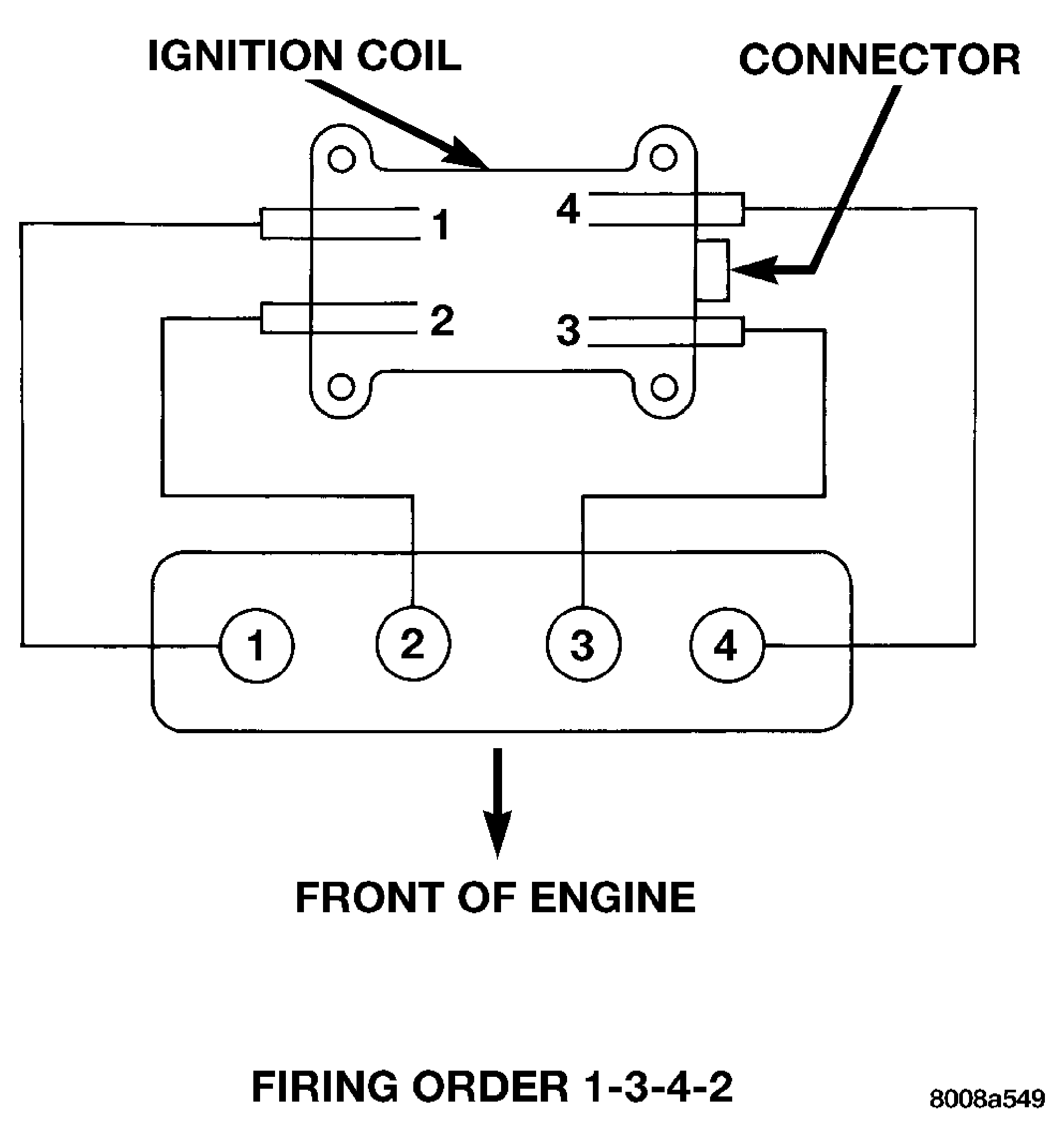

Fig 1: Firing Order 1-3-4-2 (2.4L)
GC0019908Courtesy of DAIMLERCHRYSLER CORP.

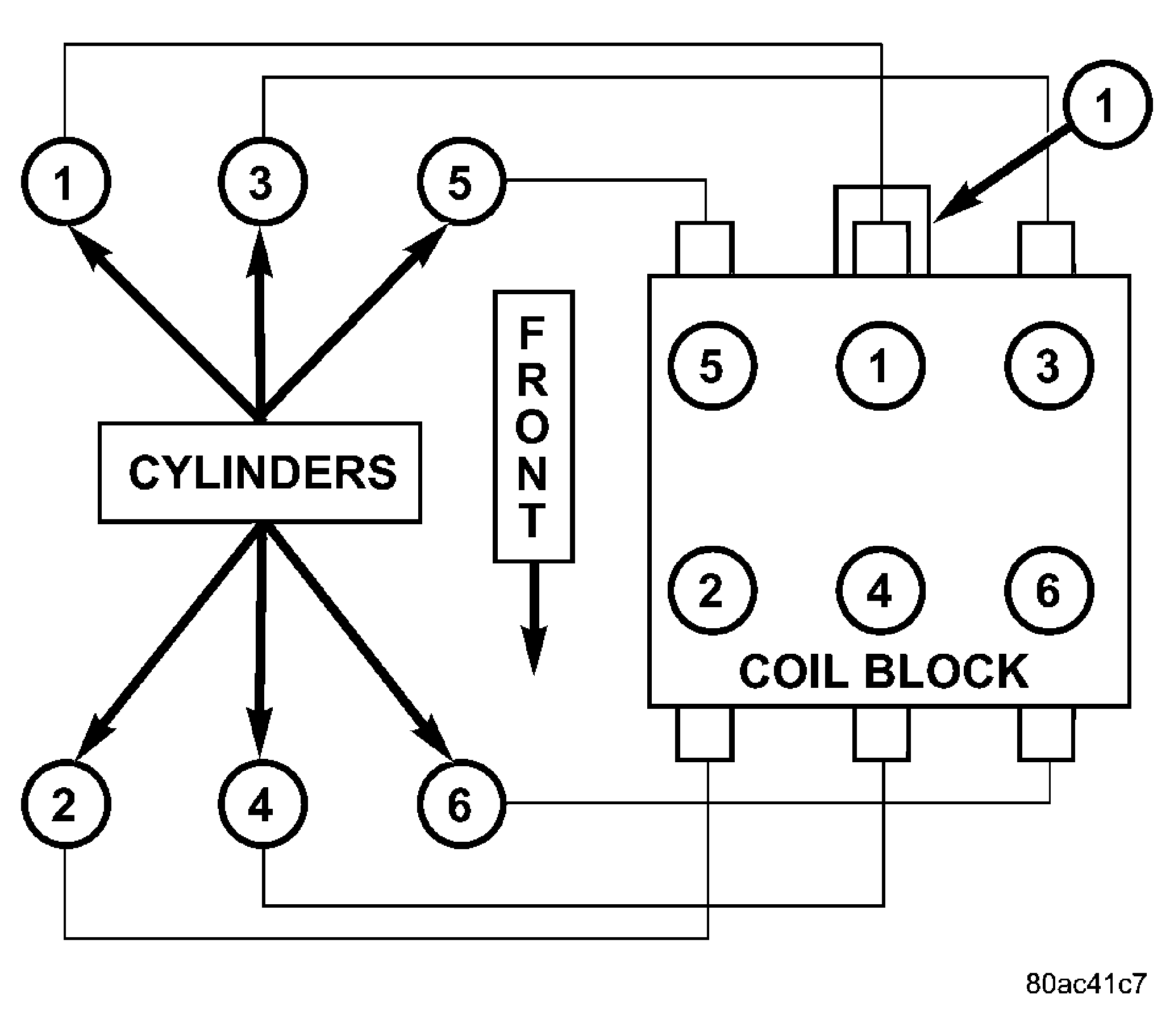

Fig 2: Firing Order 1-2-3-4-5-6 (3.3L/3.8L)
GC0024724Courtesy of DAIMLERCHRYSLER CORP.
1 - Electrical Connector
