Front Control Module - Black 49 Way

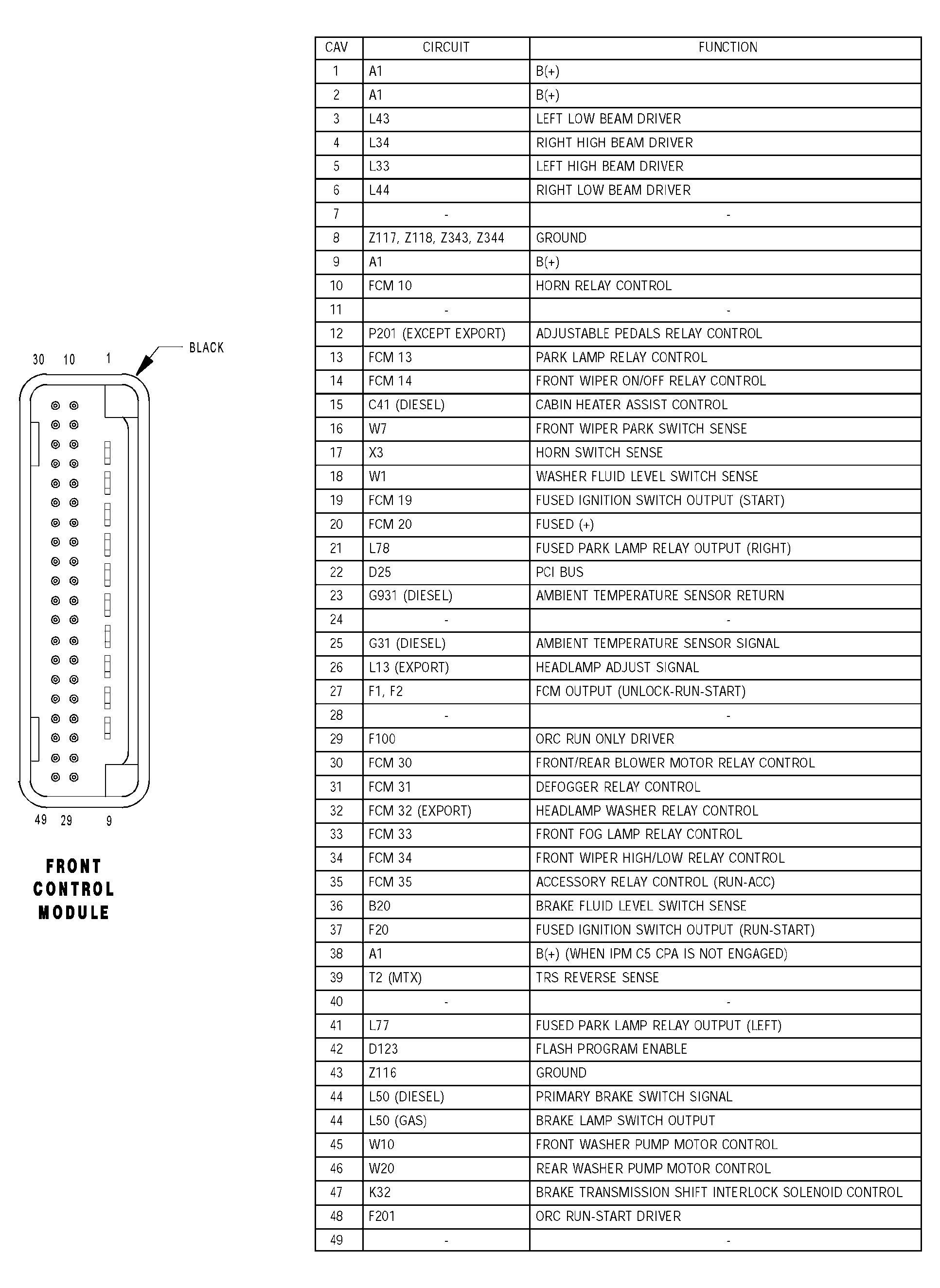

Fig 1: Identifying Front Control Module - Black 49 Way Connector Pinouts
G04549643Courtesy of DAIMLERCHRYSLER CORP.
