SBEC Vehicles

Fig 1: Identifying SBEC Vehicles Components Locations
G04549275Courtesy of DAIMLERCHRYSLER CORP.

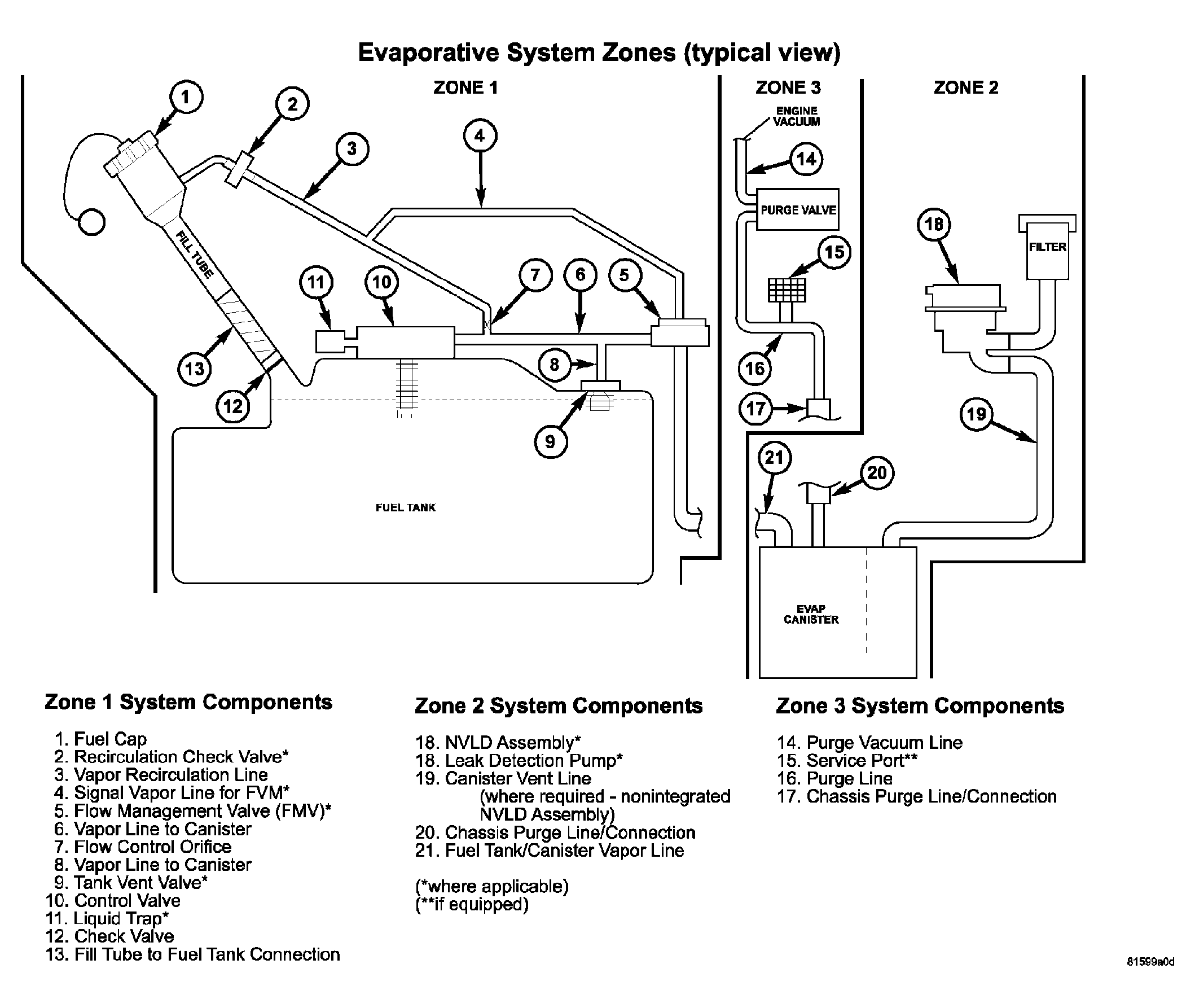

Fig 2: Evaporative Emissions System Diagram
G04549276Courtesy of DAIMLERCHRYSLER CORP.
