Installation - RHD

  1. Open APPS module and connect cable.
  2. Route electrical connector though mounting bracket. See Fig 1.

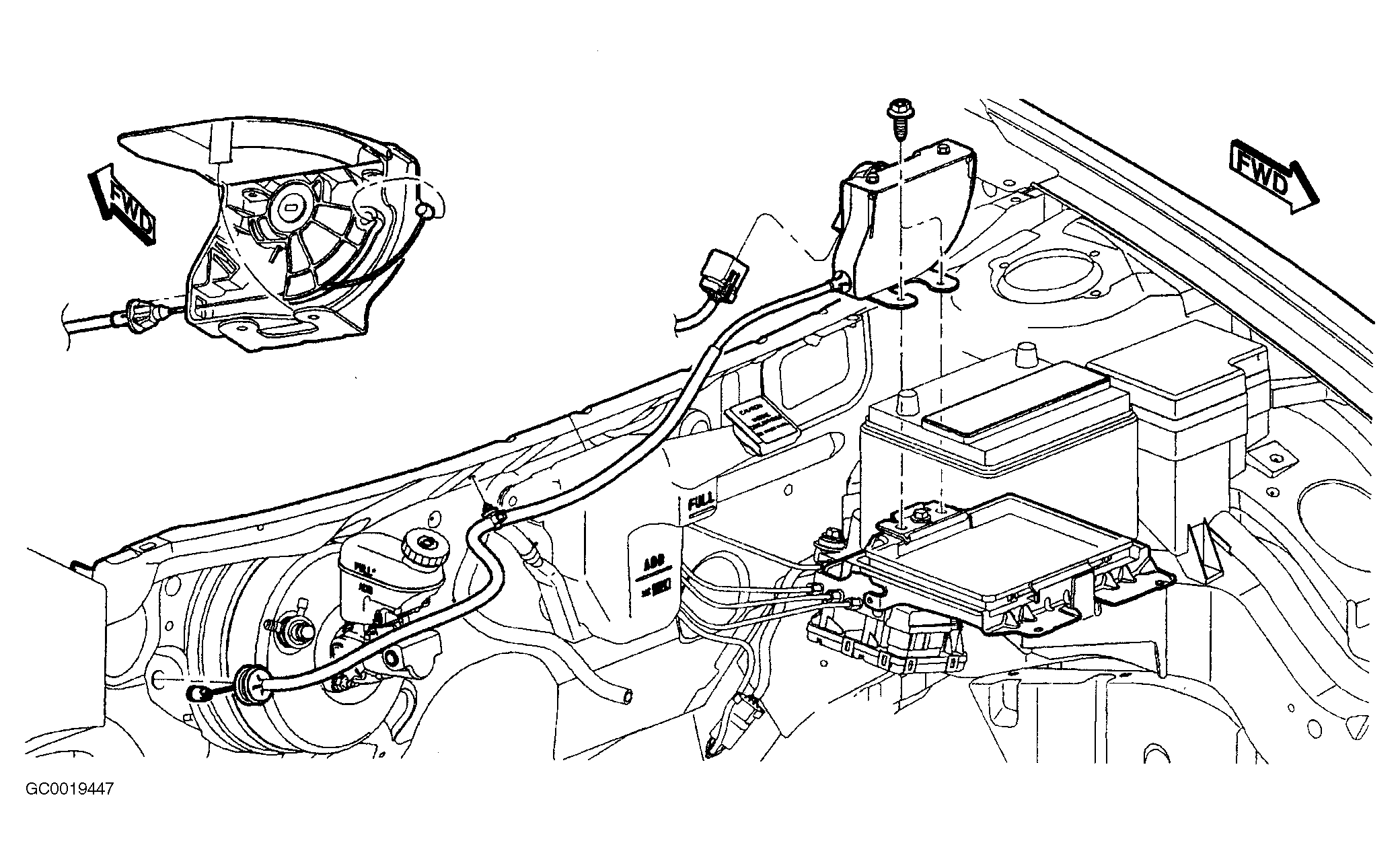

    Fig 1: APPS AND CABLE RHD
    GC0019447Courtesy of DAIMLERCHRYSLER CORP.
  3. Install electrical connector and lock. See Fig 2.

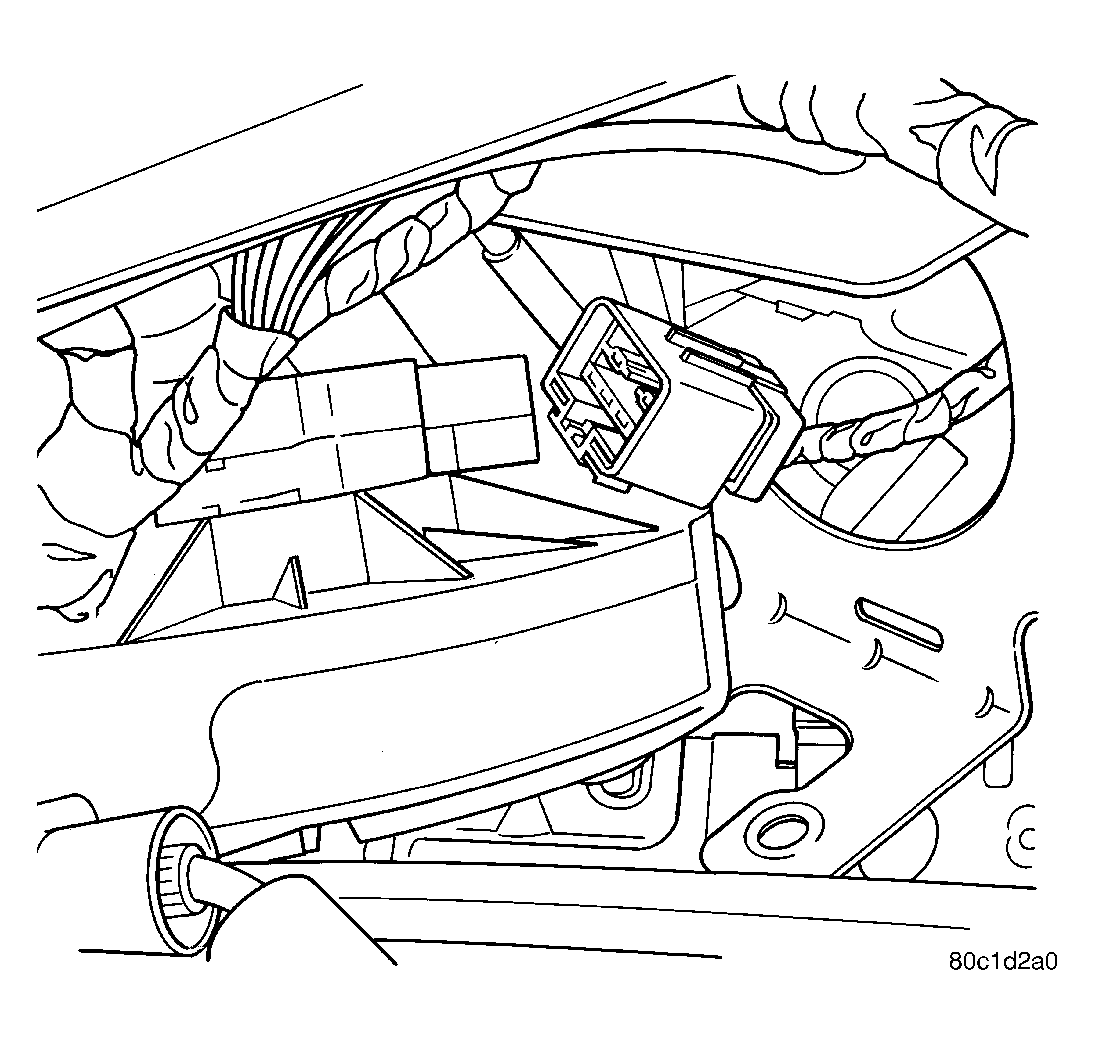

    Fig 2: ELECTRICAL CONNECTOR
    GC0019451Courtesy of DAIMLERCHRYSLER CORP.

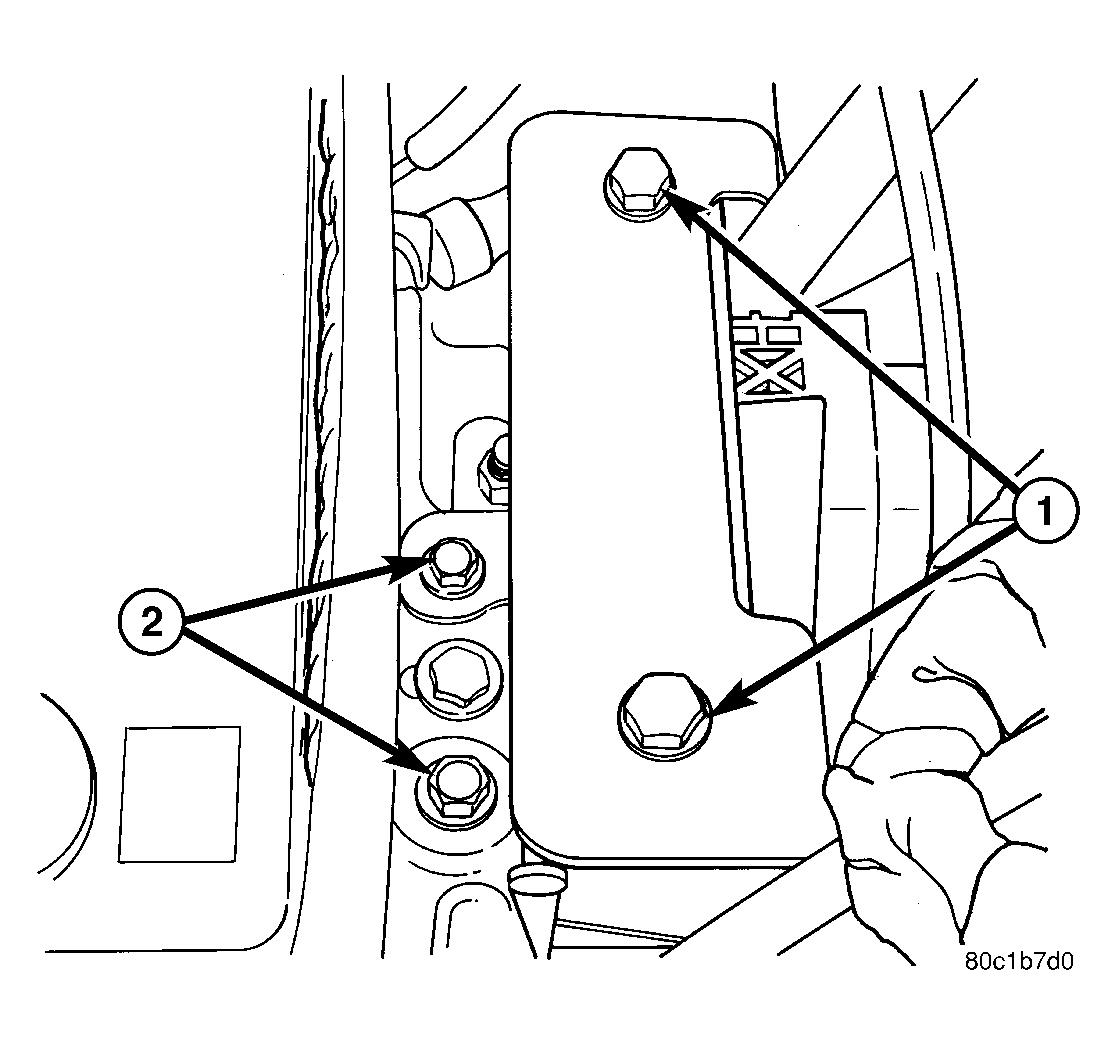

  4. Install the 2 top bolts. See Figure.
  5. Install the 2 mounting bolts. See Figure.
  6. Connect the negative battery cable.
