Automatic Transmission Diagnostic Procedures
›
Charts And Graphs
›
Transmission Temperature Sensor Specifications
Transmission Temperature Sensor Specifications

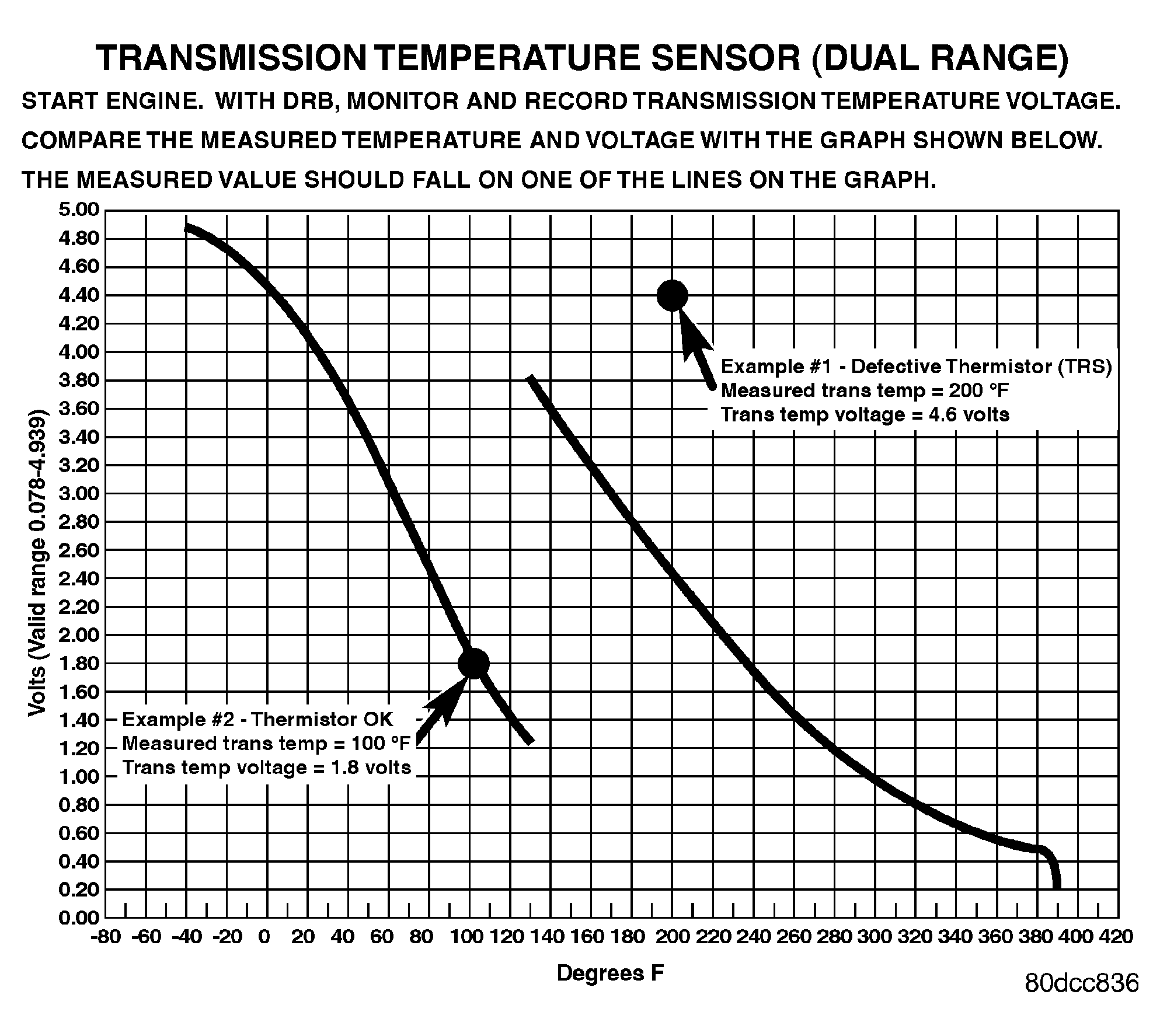

Fig 1: Transmission Temperature Sensor Voltage And Temperature Graph
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
