Emergency Release Cable: Removal
Remove the decklid cover.
(Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/COVER - REMOVAL)
Unclip cable and handle assembly. See
Fig 1
.

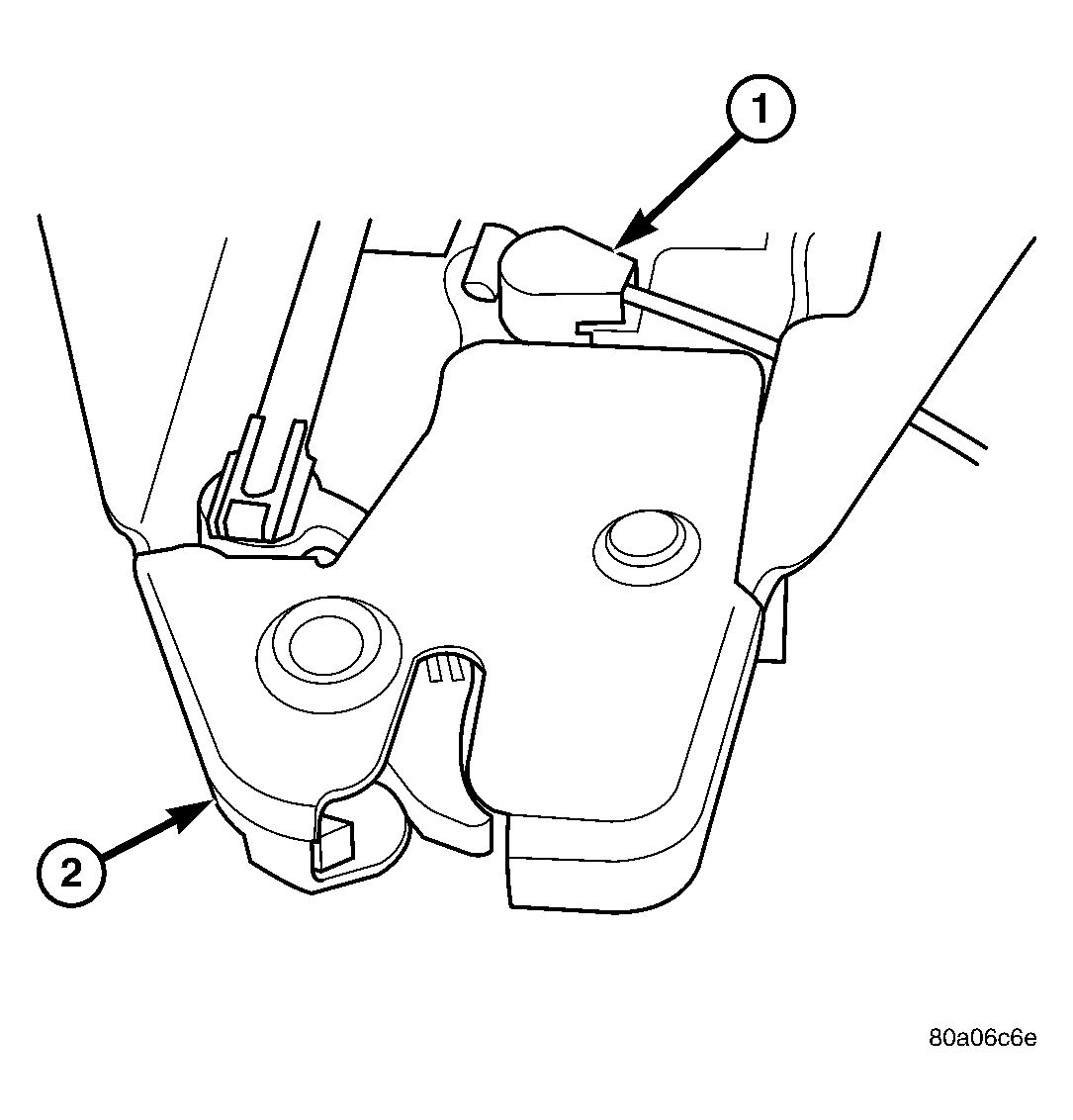

Fig 1: EMERGENCY RELEASE CABLE - TYPICAL
Courtesy of DAIMLERCHRYSLER CORP.
1 - Release Cable Clip
2 - Decklid Latch
