Removal - 1.6L

Disconnect the negative battery cable.
Remove the electrical connector at the Manifold Absolute pressure (MAP) sensor. See Fig 1.

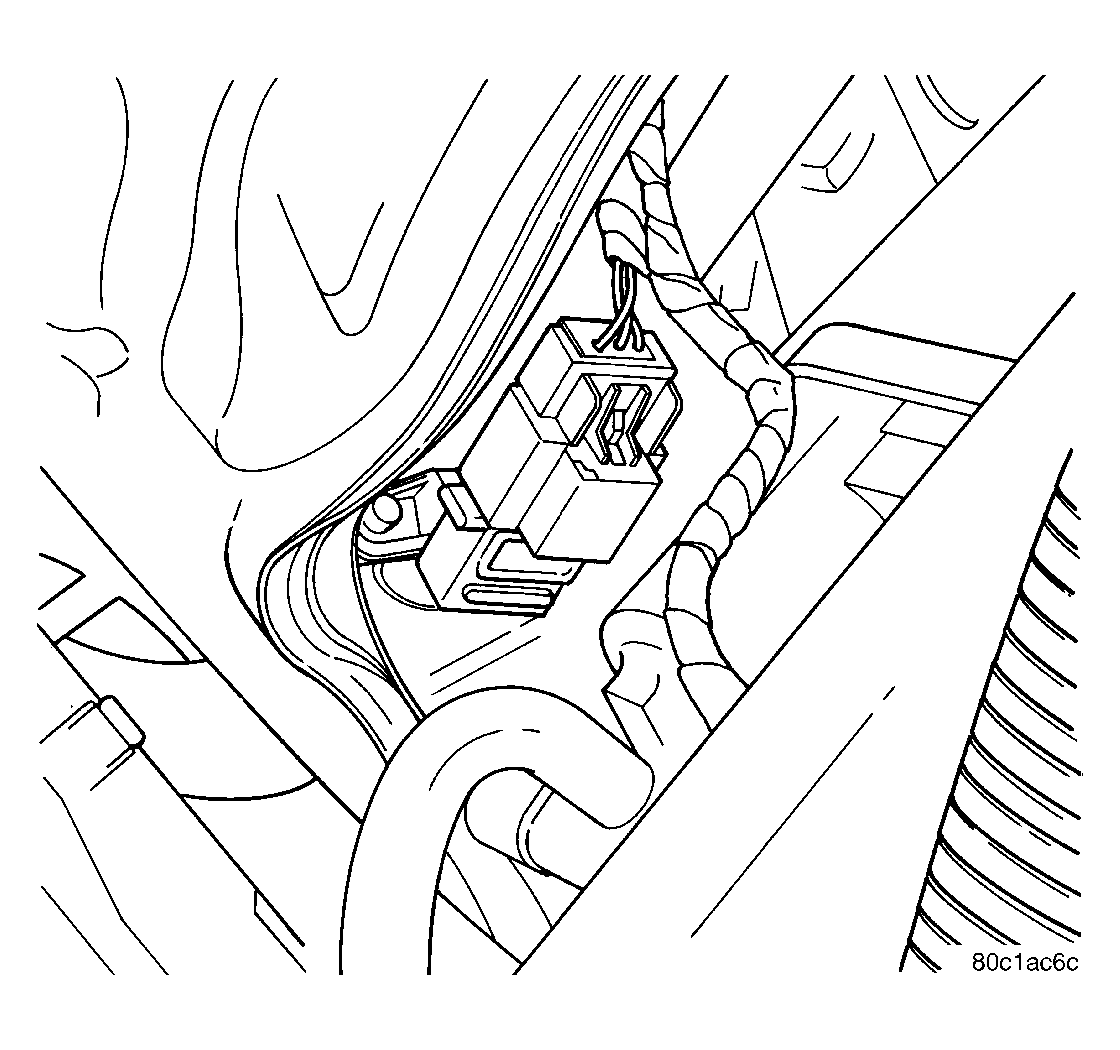

Fig 1: MAP SENSOR
Courtesy of DAIMLERCHRYSLER CORP.
Remove 2 screws from sensor.
Remove sensor.
