Fuel Pump Module - LT. Gray 4 Way

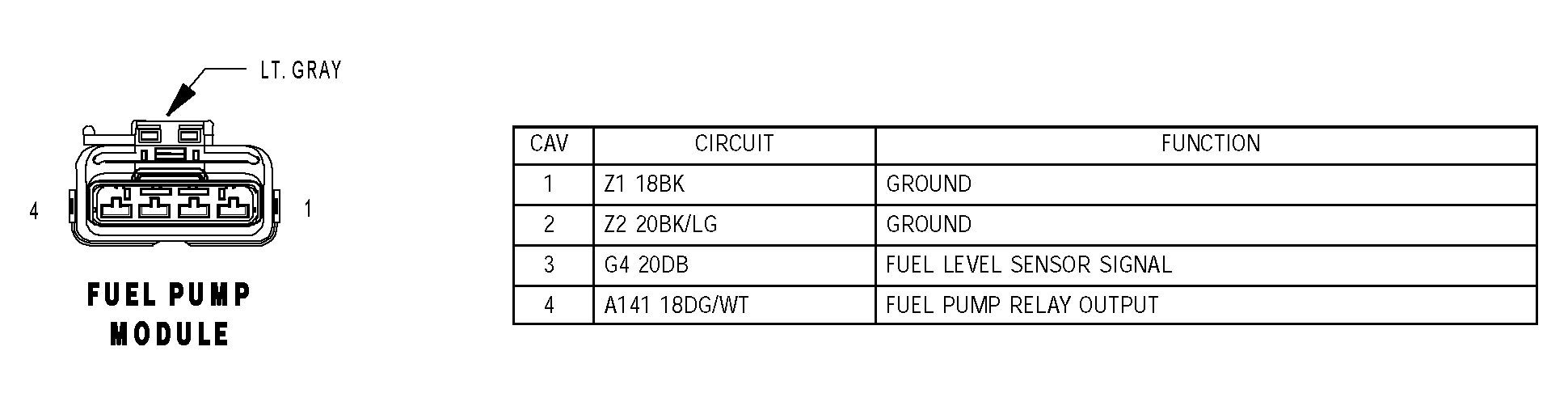

Fig 1: Identifying Fuel Pump Module Connector Pinouts - LT. Gray 4 Way
G04549727Courtesy of DAIMLERCHRYSLER CORP.
