Powertrain Control Module C1 - Black/Black 38 Way
Powertrain Control Module C1 - Black/Black 38 Way

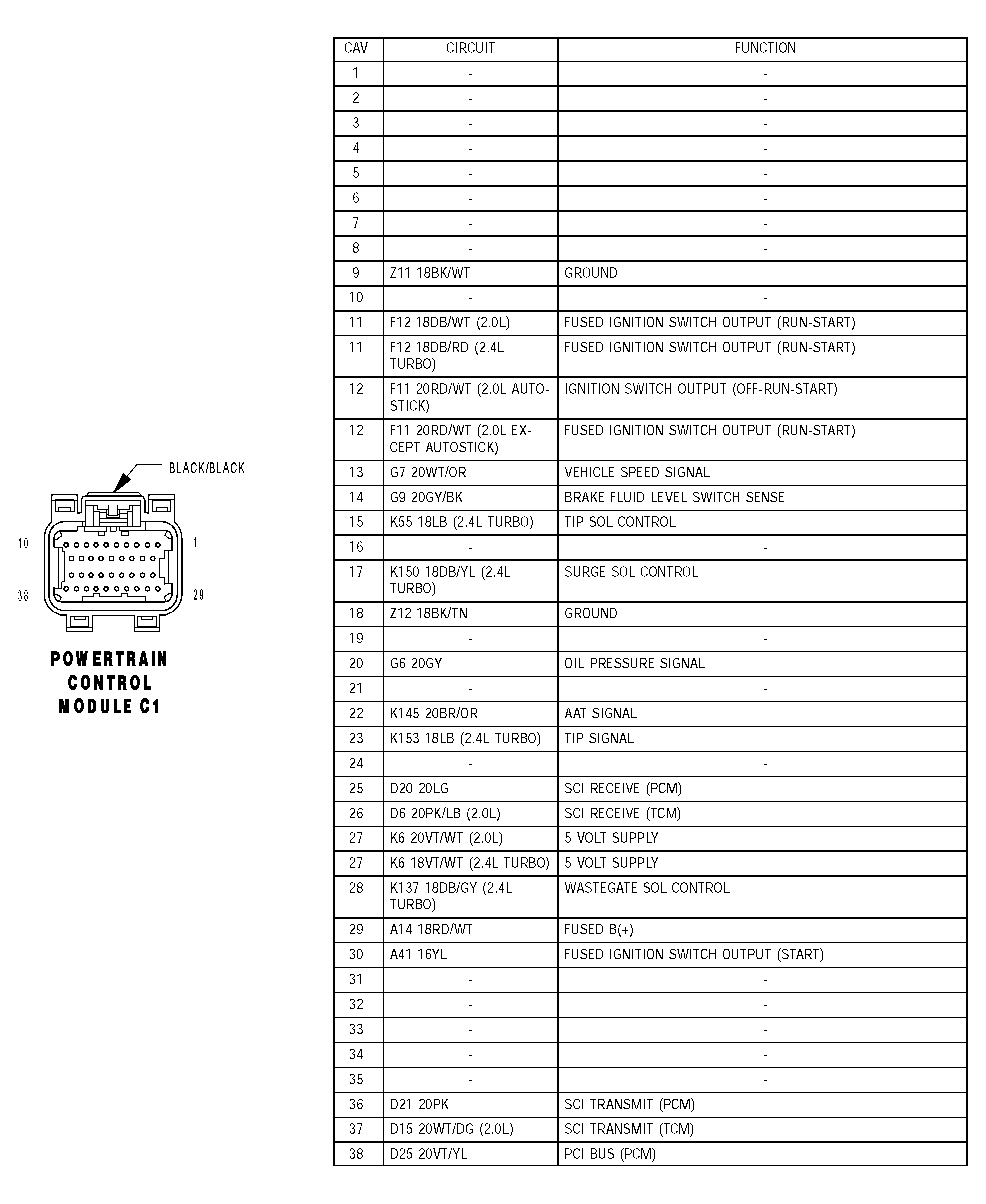

Fig 1: Identifying Powertrain Control Module C1 Connector Pinouts - Black/Black 38 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
