Schematic Diagrams: Pl

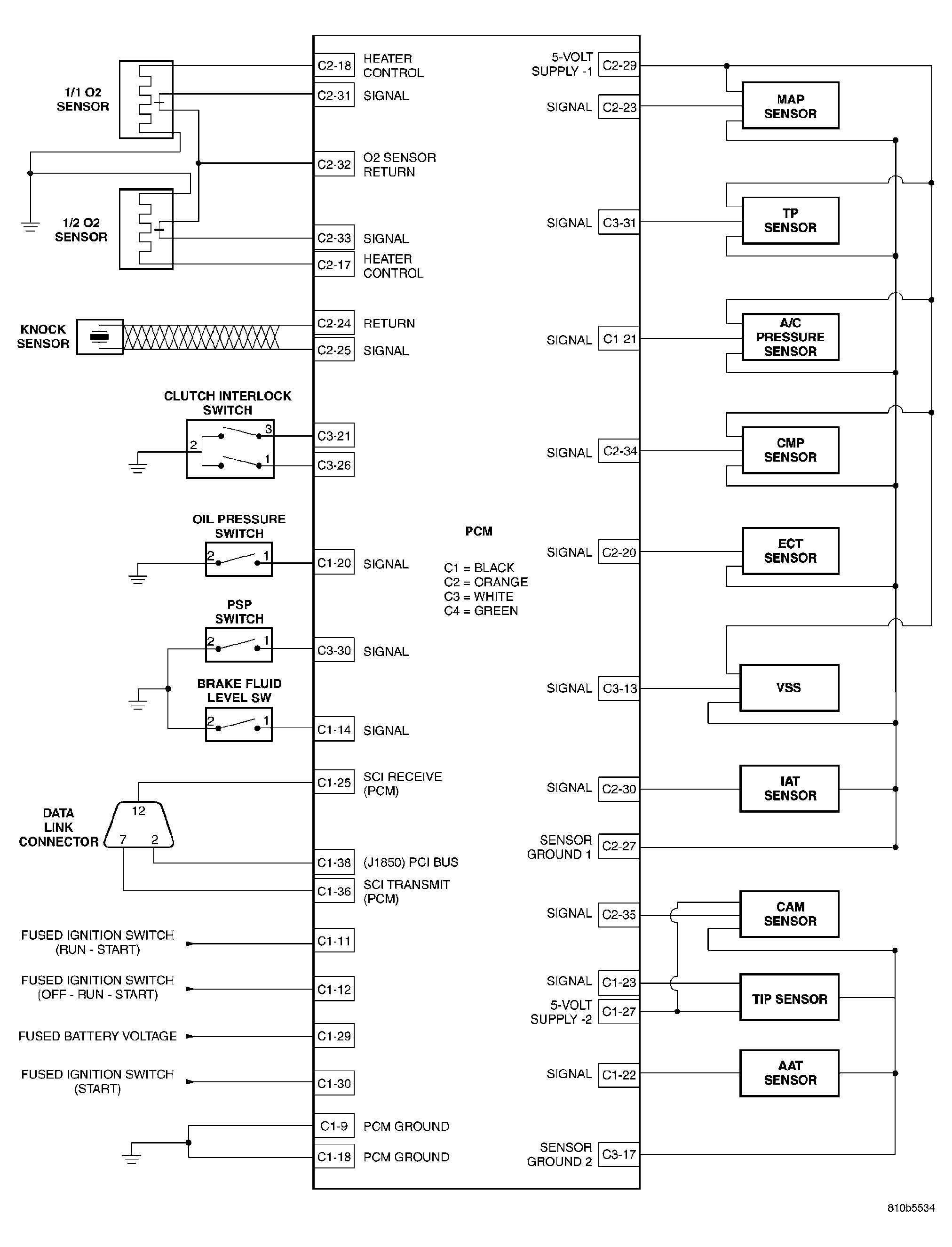

Fig 1: Schematic Diagrams - PL (1 Of 2)
G04549757Courtesy of DAIMLERCHRYSLER CORP.

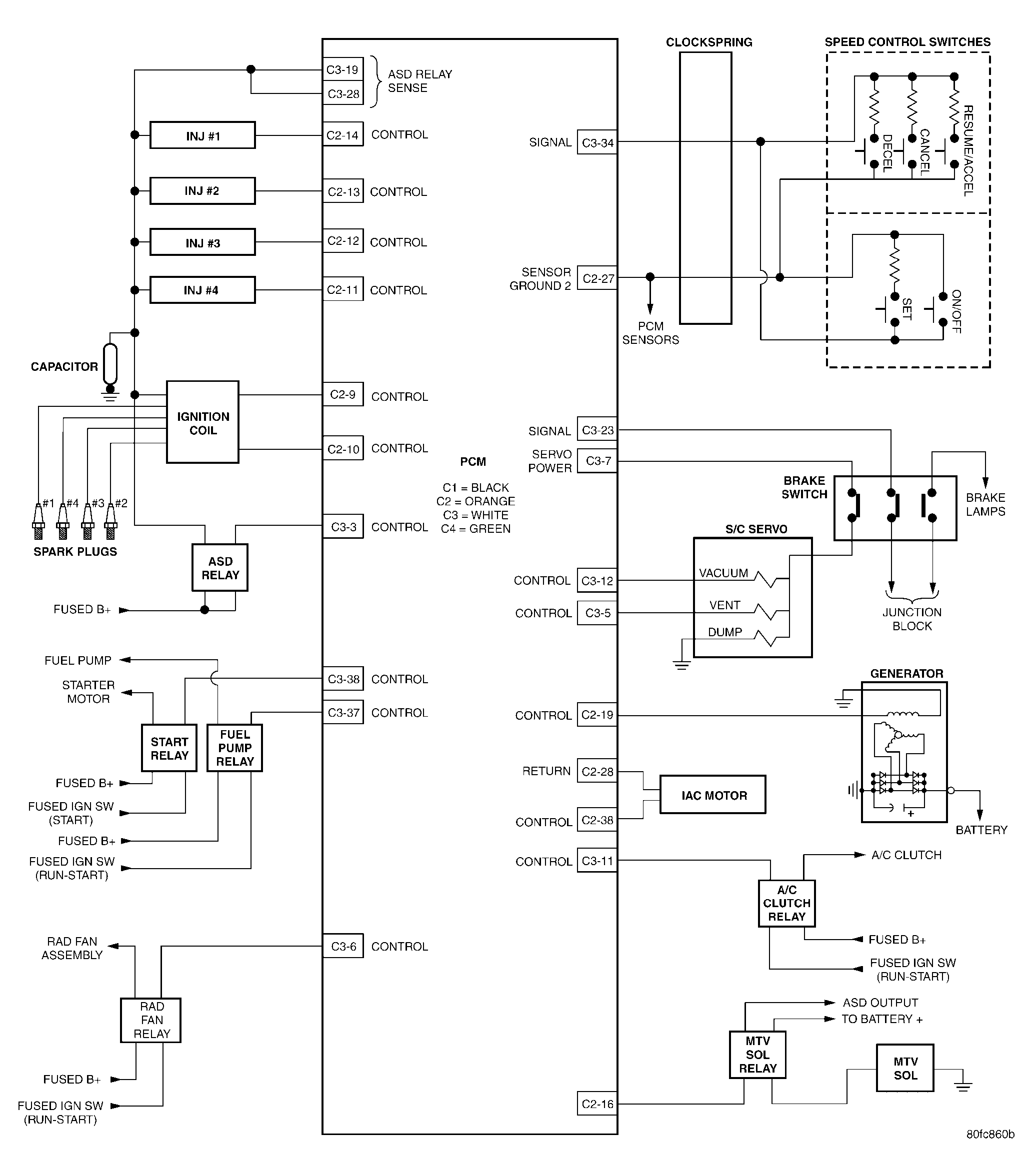

Fig 2: Schematic Diagrams - PL (2 Of 2)
G04549758Courtesy of DAIMLERCHRYSLER CORP.
