SRT-2.4L Engine
SRT-2.4L Engine

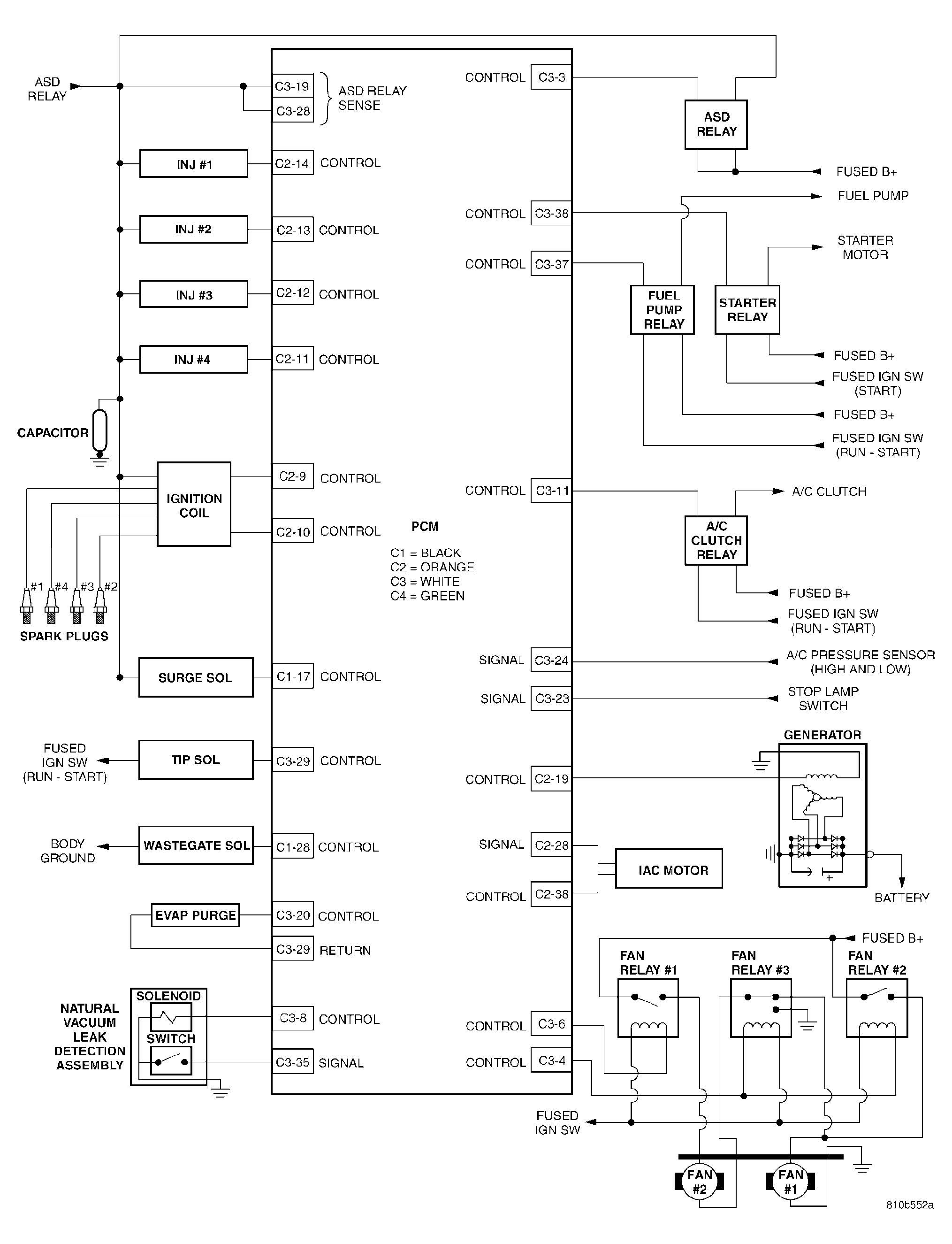

Fig 1: Schematic Diagrams - SRT-2.4L Engine
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
