Shoulder Belt Height Adjuster: Removal

CAUTION: Front seat belt assemblies must be replaced after a collision.

1. Remove B-pillar trim. See Figure.
2. Remove the two bolts attaching shoulder belt adjuster to B-pillar. See Fig 1.
3. Remove shoulder belt adjuster from vehicle.

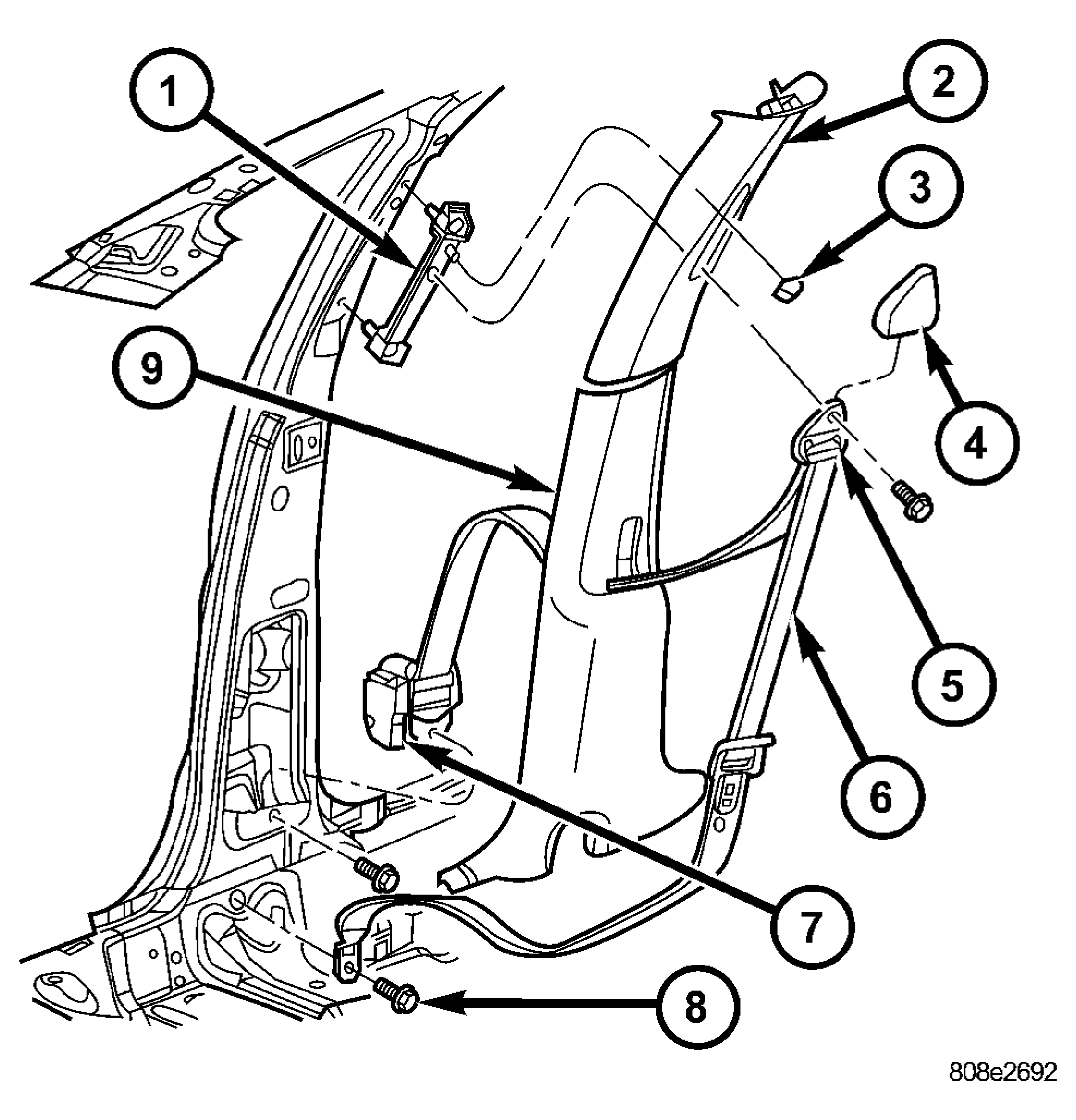

Fig 1: Front Shoulder Belt Adjuster

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT SHOULDER BELT ADJUSTER

2 - TAB IS ON BOTTOM
