Dodge and Ram
›
2005
›
Sprinter 2500, Cab Chassis
›
Repair and Diagnosis
›
Body & Frame
›
Body, Cab Control Systems
›
Body Diagnostic Procedures
›
Connector PINOUTS
›
Engine Control Module C2 - Black
Engine Control Module C2 - Black

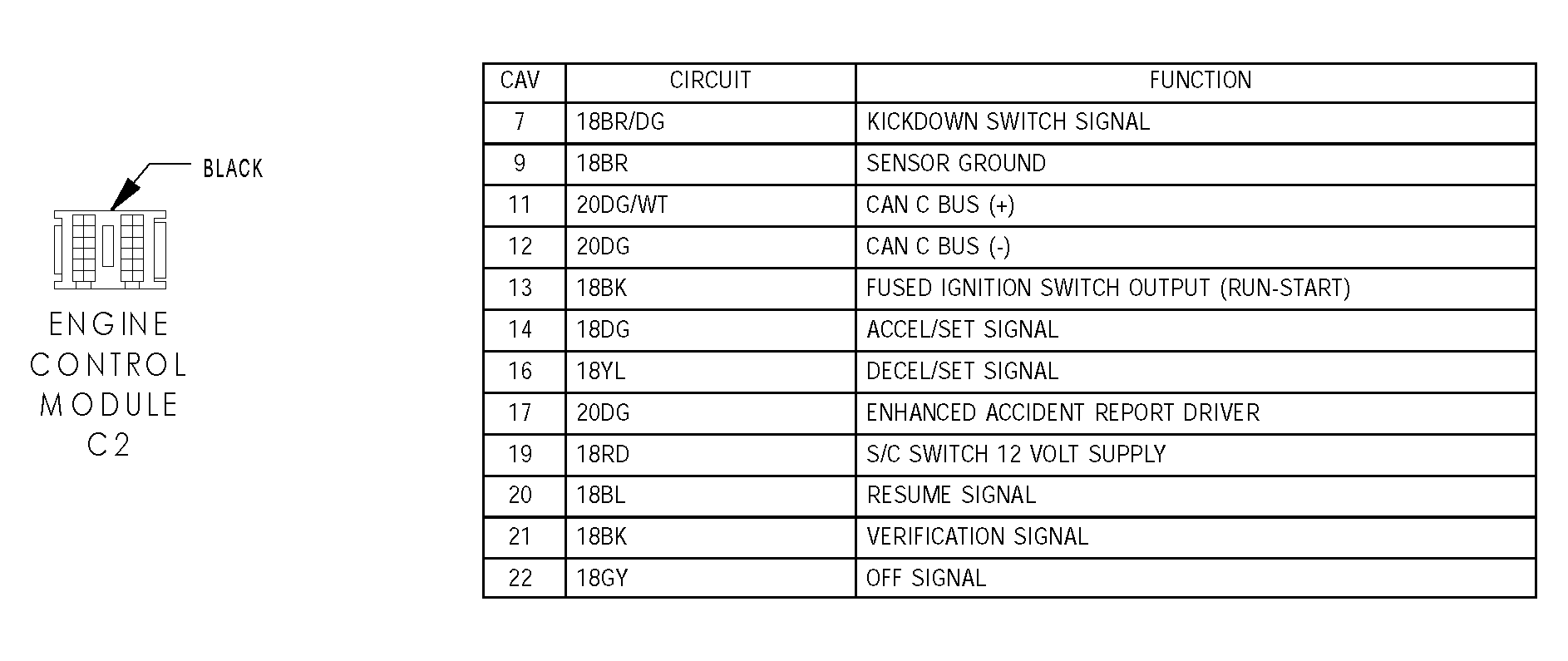

Fig 1: Identifying Engine Control Module C2 - Black Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
