Security System Module C1 - Brown

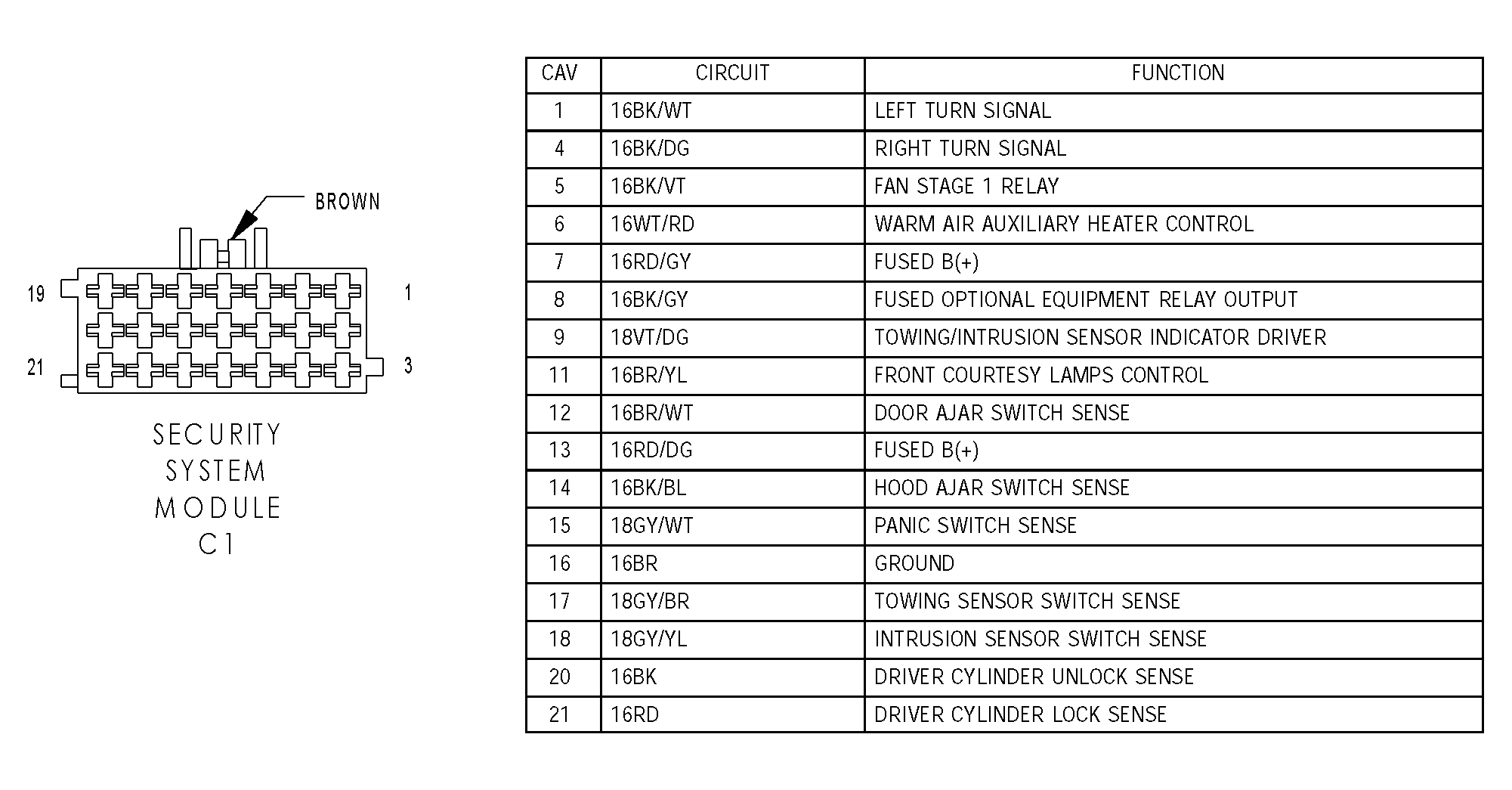

Fig 1: Identifying Security System Module C1 - Brown Connector Pinouts
G04536759Courtesy of DAIMLERCHRYSLER CORP.
