Security System Module C2 - LT. Green
Security System Module C2 - LT. Green

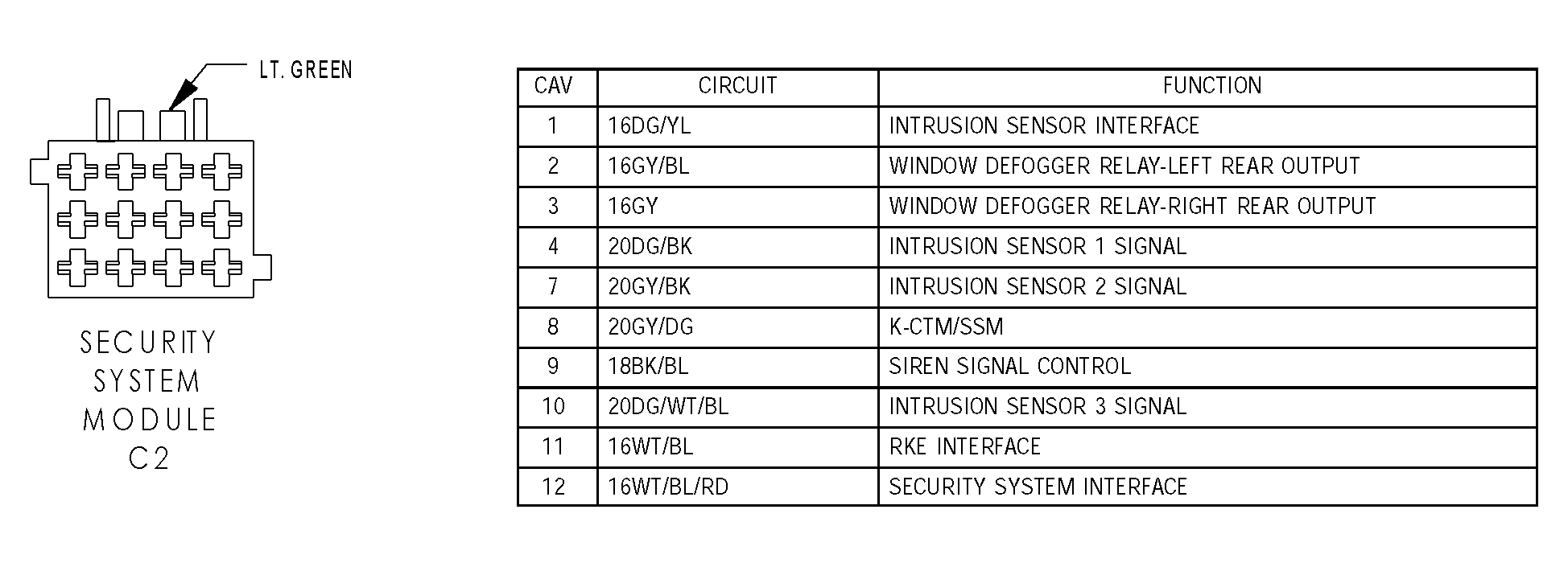

Fig 1: Identifying Security System Module C2 - Lt. Green Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
