Sentry Key Remote Entry Module (SKREEM)

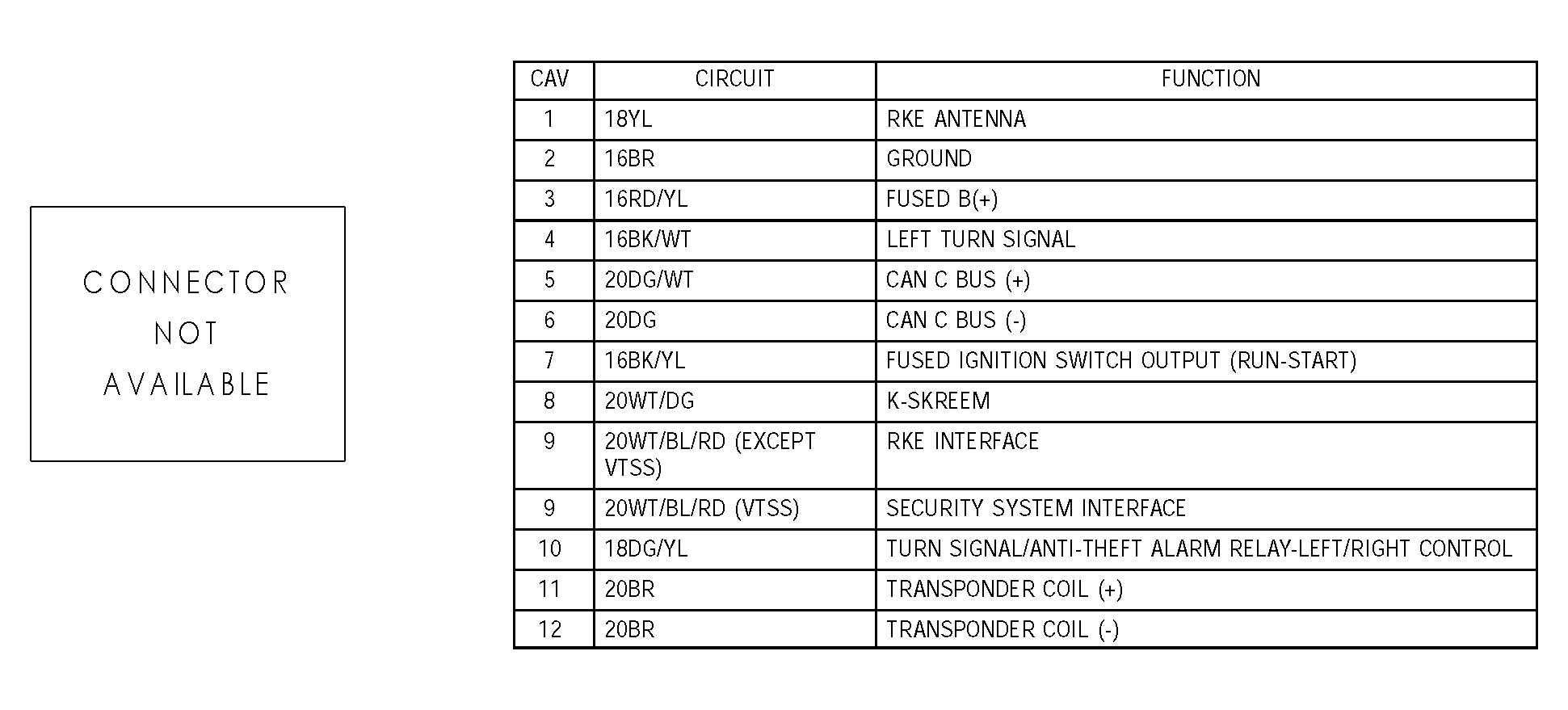

Fig 1: Identifying Sentry Key Remote Entry Module (SKREEM)
G04536761Courtesy of DAIMLERCHRYSLER CORP.
