Charts And Graphs
Charts And Graphs

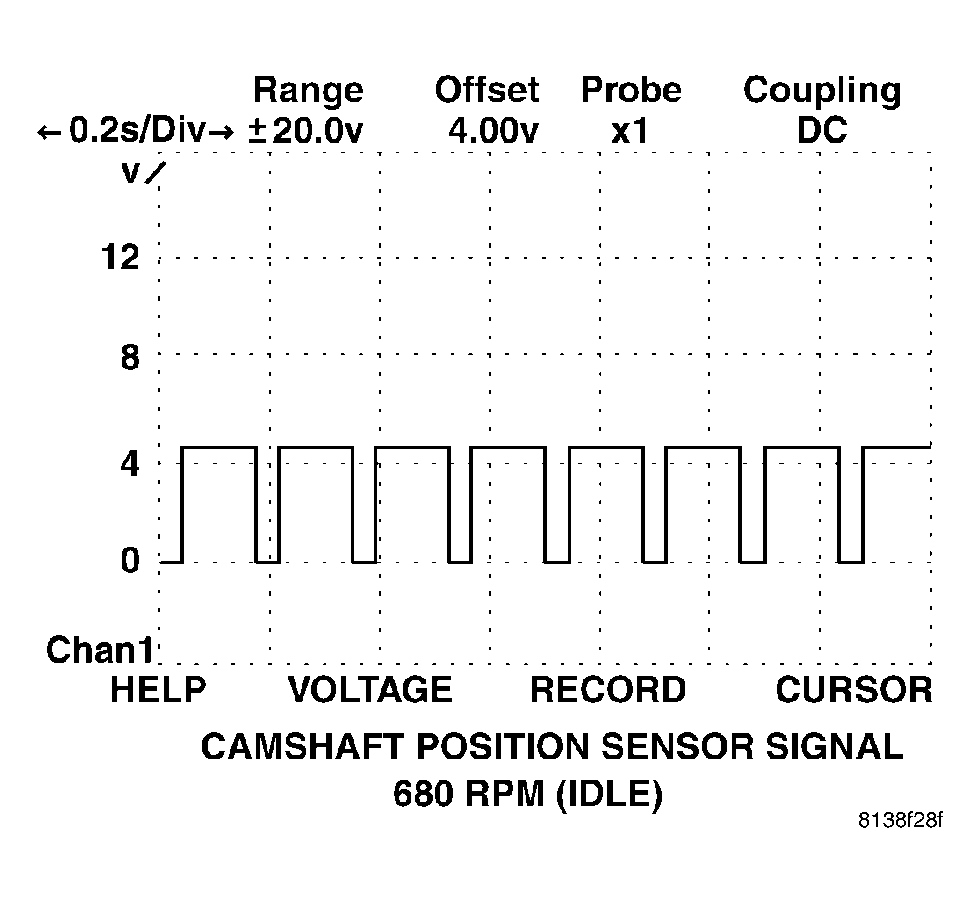

Fig 1: Camshaft Position Sensor Signal
Courtesy of DAIMLERCHRYSLER CORP.

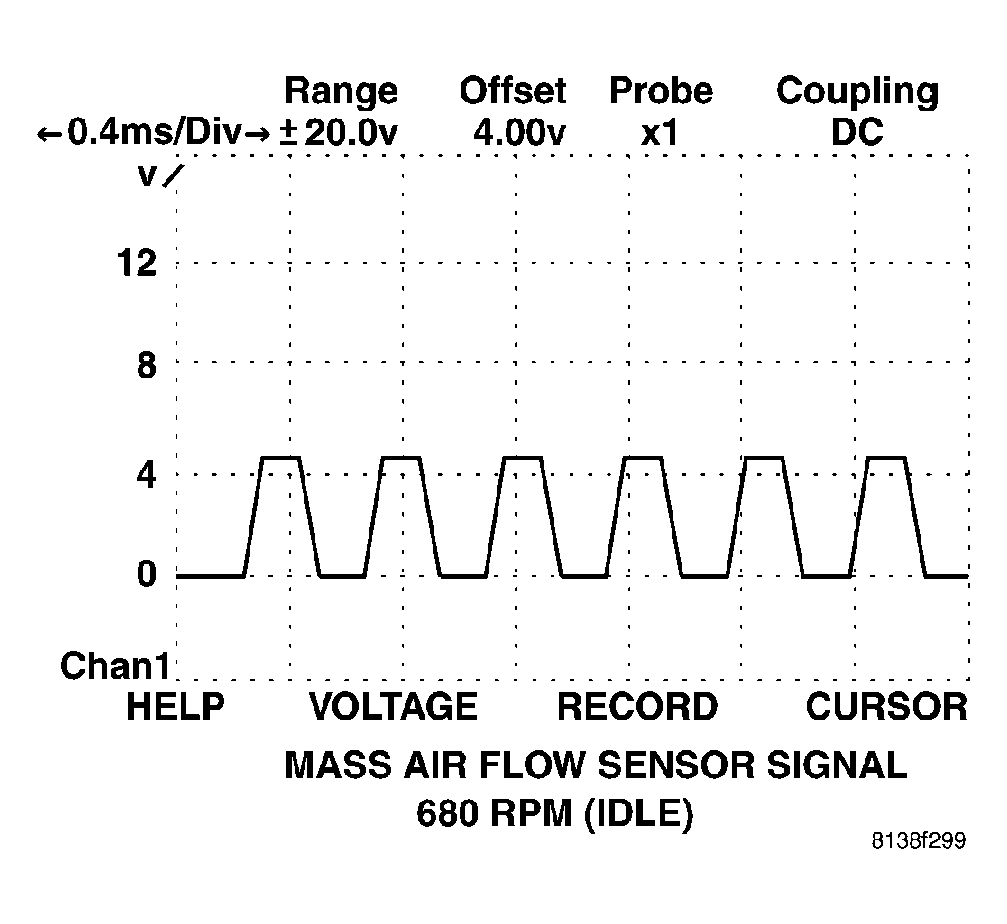

Fig 2: Mass Air Flow Sensor Signal
Courtesy of DAIMLERCHRYSLER CORP.

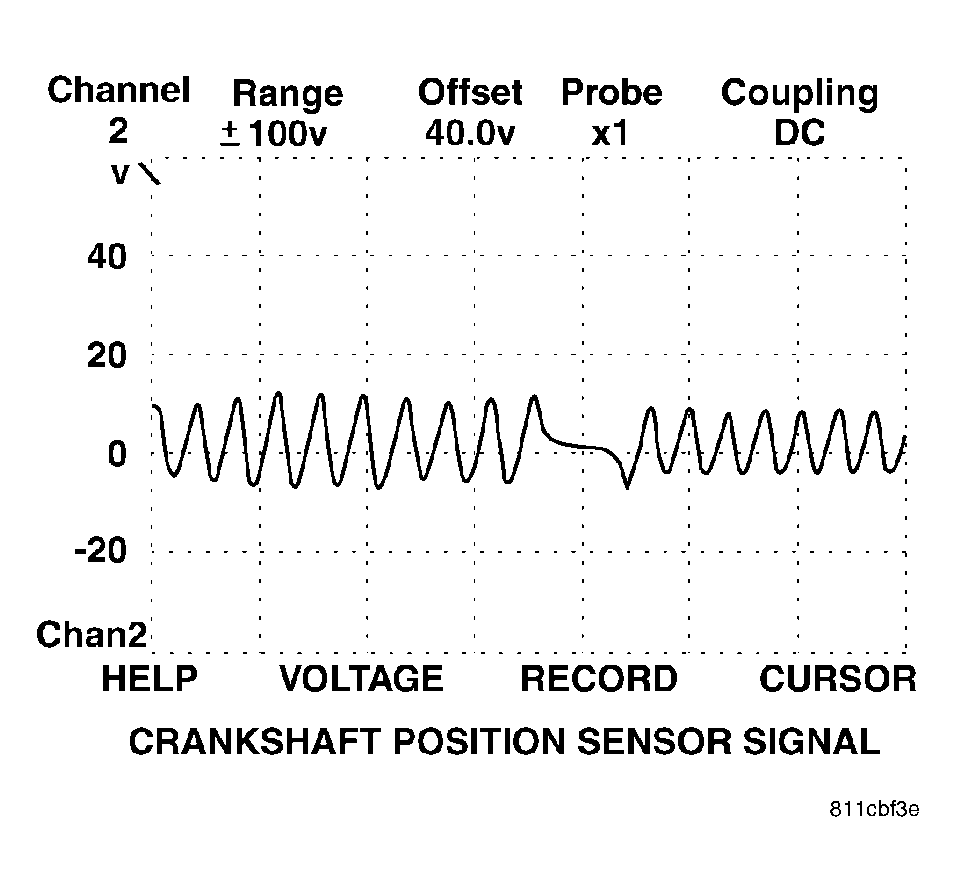

Fig 3: Crankshaft Position Sensor Signal
Courtesy of DAIMLERCHRYSLER CORP.

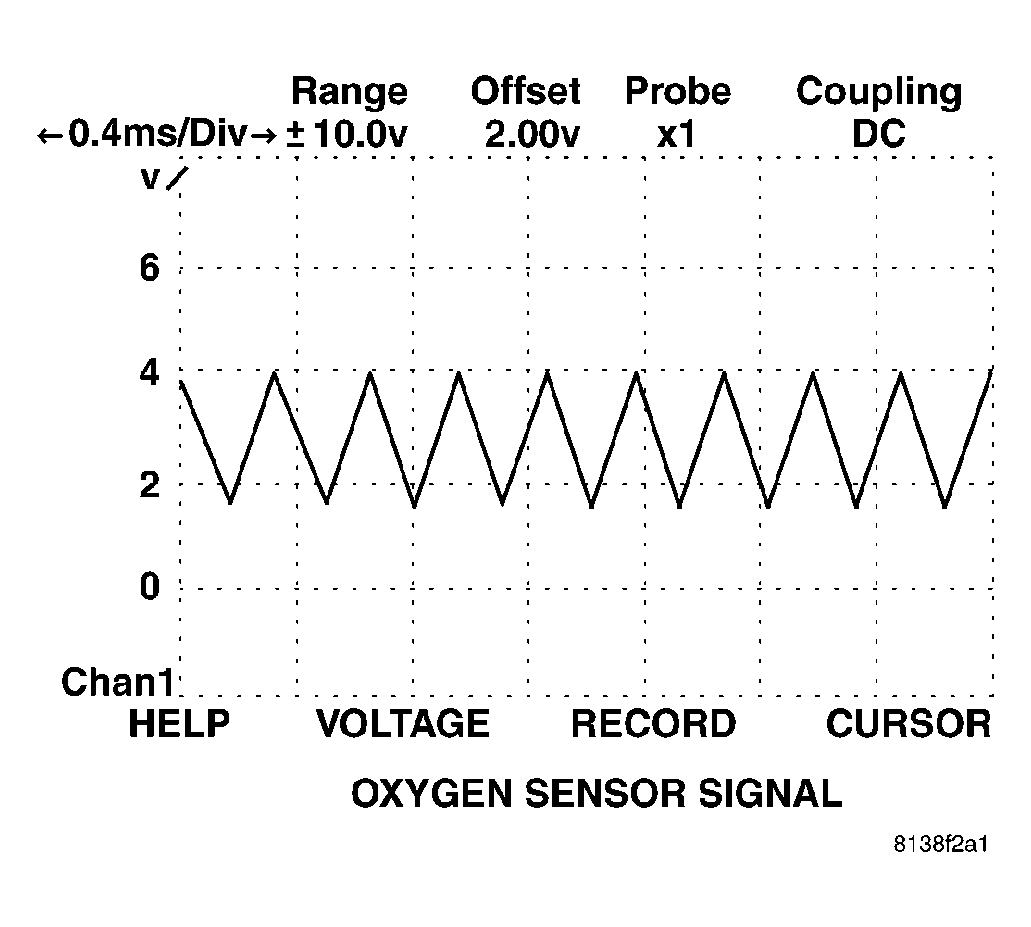

Fig 4: Oxygen Sensor Signal
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
