Airbag Control Module - Yellow
Airbag Control Module - Yellow

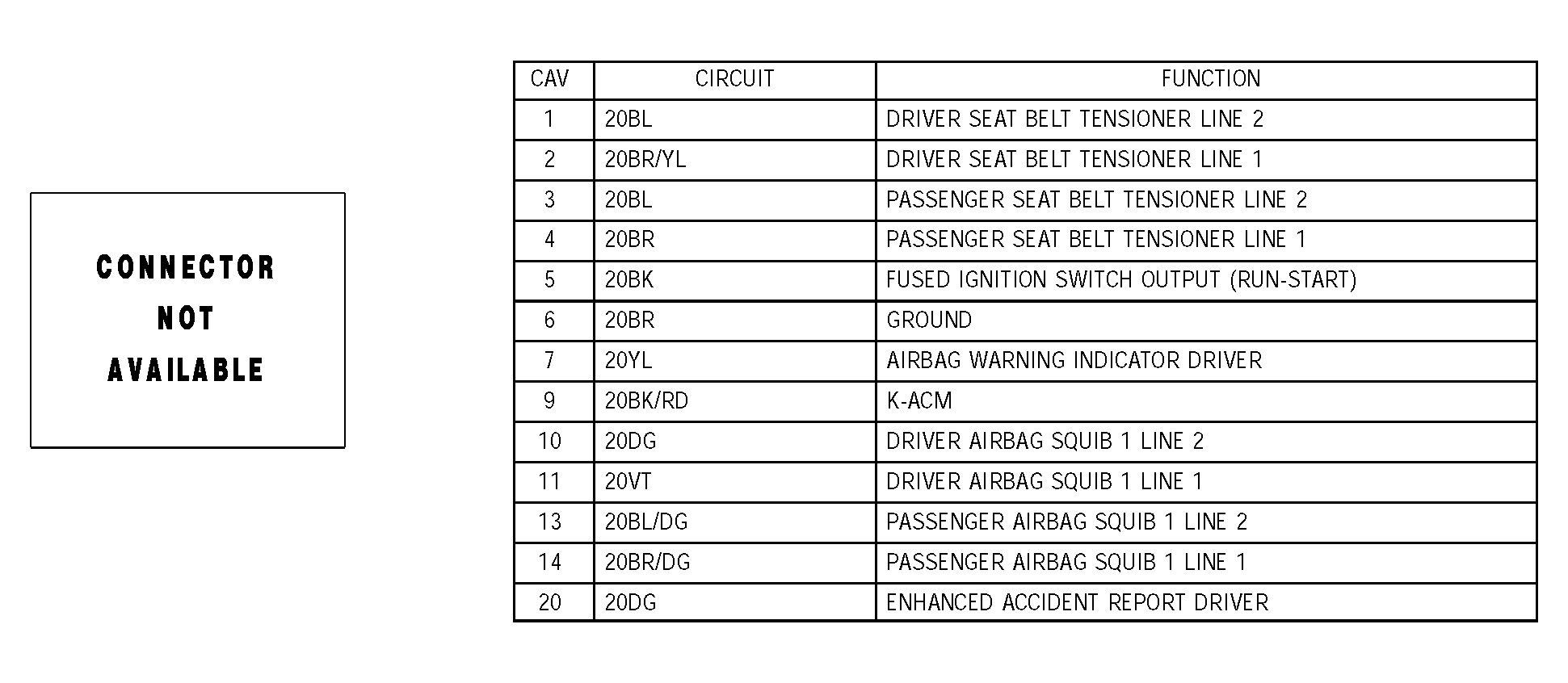

Fig 1: Identifying Airbag Control Module - Yellow Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
