Speed Control Switch
Speed Control Switch

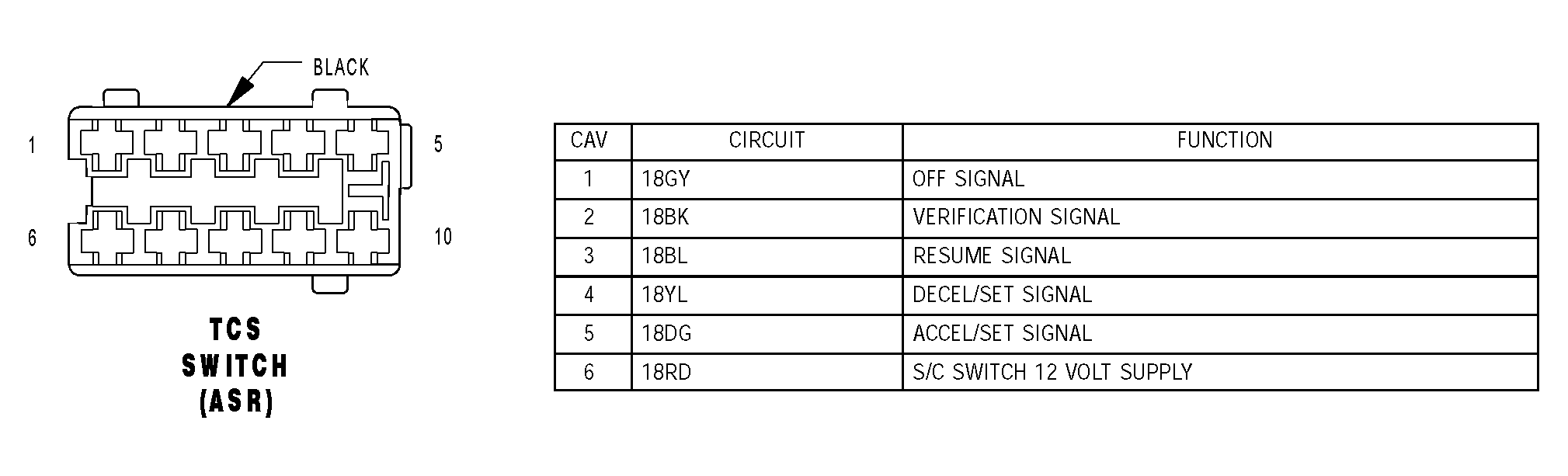

Fig 1: Identifying Speed Control Switch Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
