Starter Motor Relay (Fuse/Relay Block)

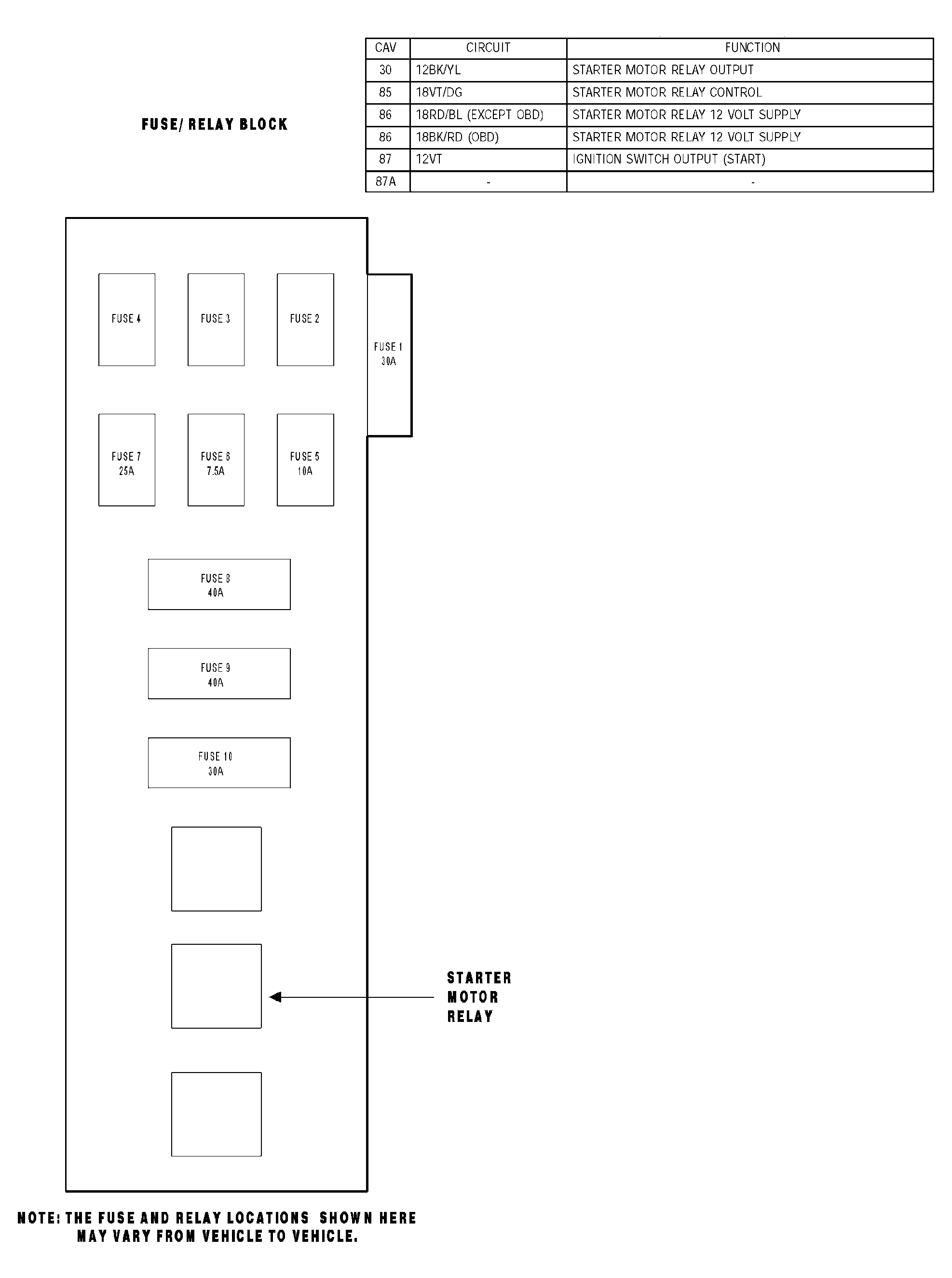

Fig 1: Identifying Starter Motor Relay (Fuse/Relay Block)
G04536646Courtesy of DAIMLERCHRYSLER CORP.
