Engine Control Module

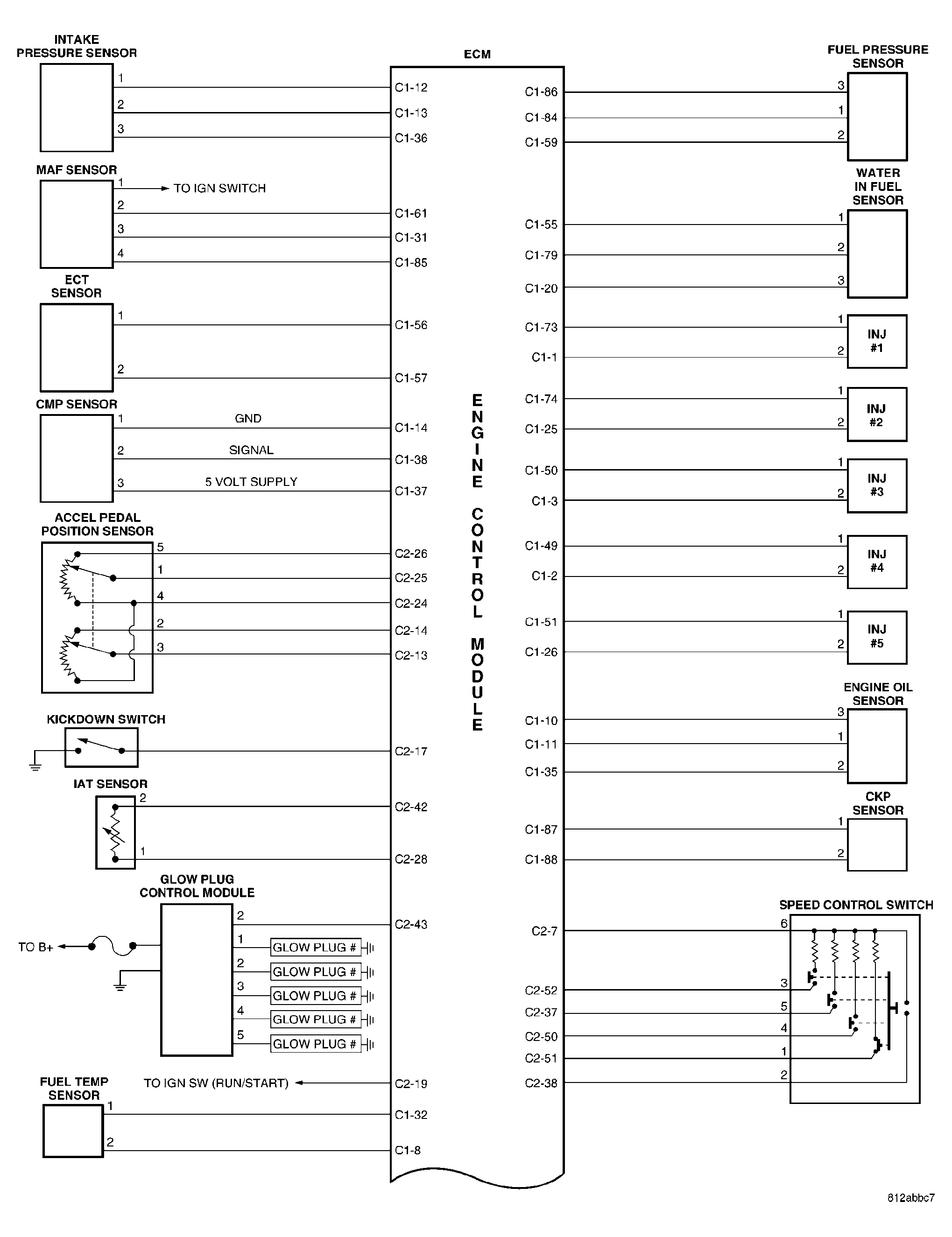

Fig 1: Engine Control Module - Schematic Diagrams (1 Of 2)
G04536661Courtesy of DAIMLERCHRYSLER CORP.

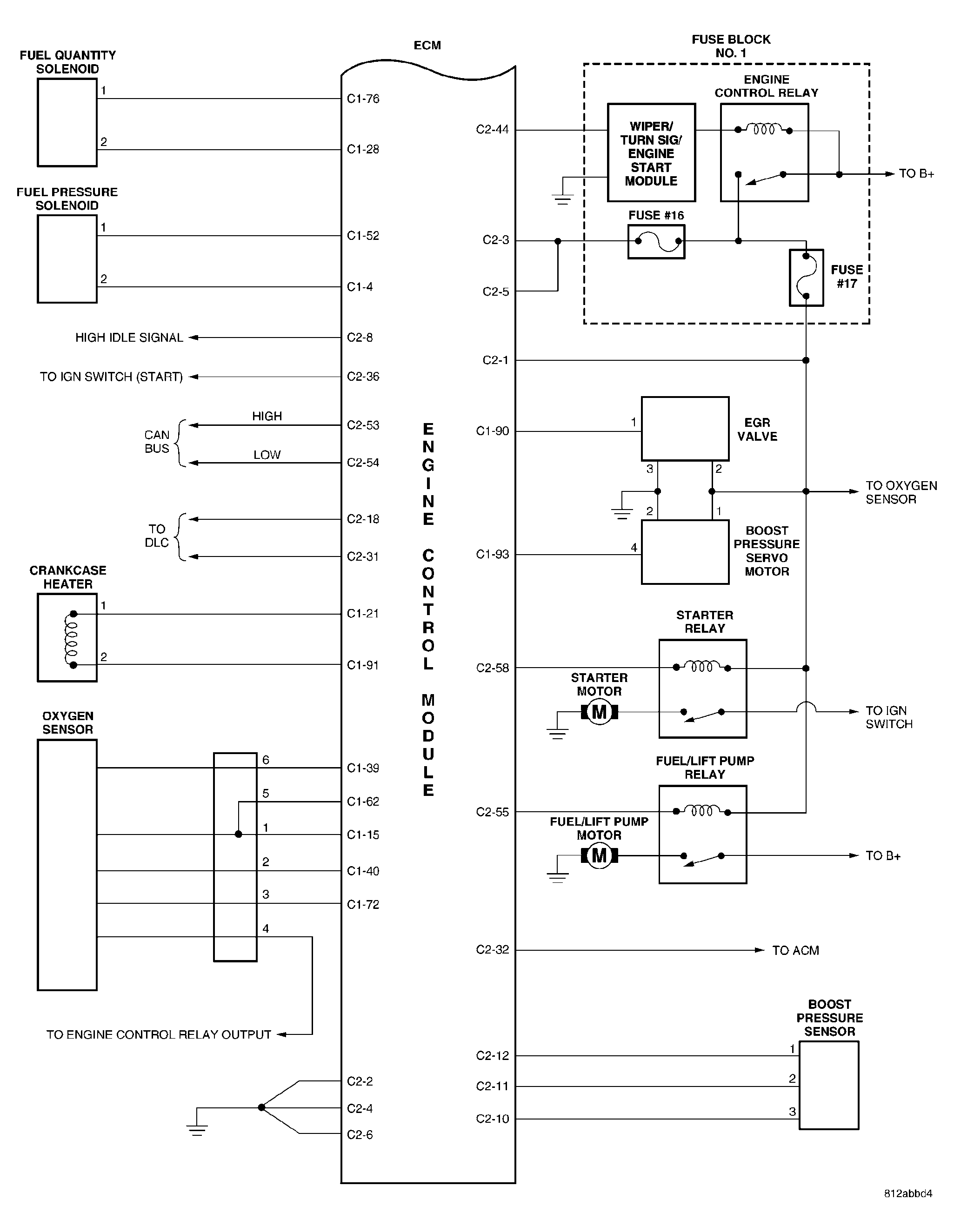

Fig 2: Engine Control Module - Schematic Diagrams (2 Of 2)
G04536662Courtesy of DAIMLERCHRYSLER CORP.
