Camshaft Position Sensor: Installation

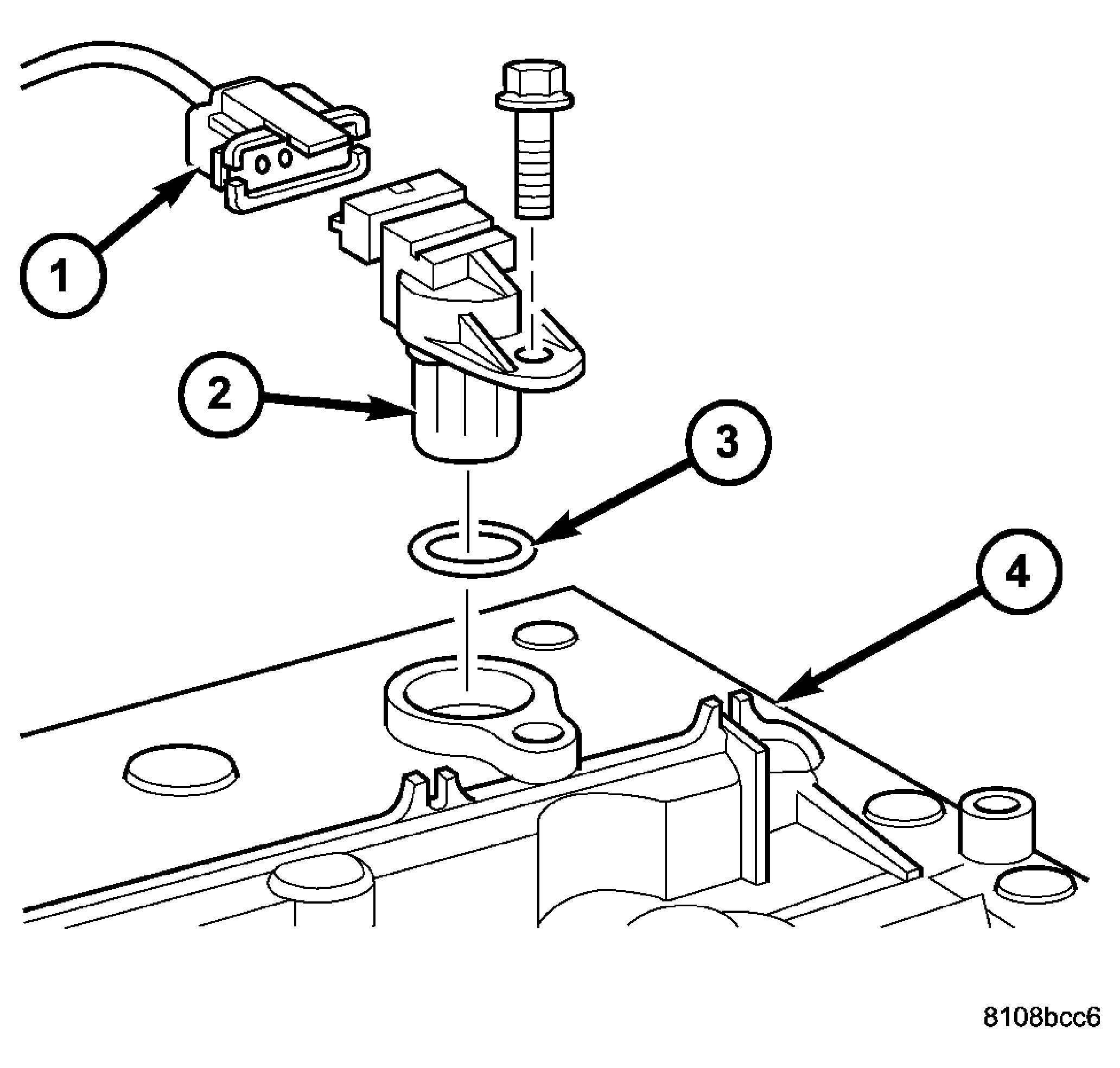

Fig 1: CAM POSITION SENSOR

Courtesy of DAIMLERCHRYSLER CORP.

1 - WIRING HARNESS CONNECTOR

2 - CAM POSITION SENSOR

3 - O-RING

4 - CYLINDER HEAD COVER

1. Install camshaft position sensor and tighten bolt. See Fig 1.
2. Reconnect electrical connector. See Fig 1.
3. Install engine cover.
4. Reconnect negative battery cable.
