Fuel Tank Module - Gray 4 Way

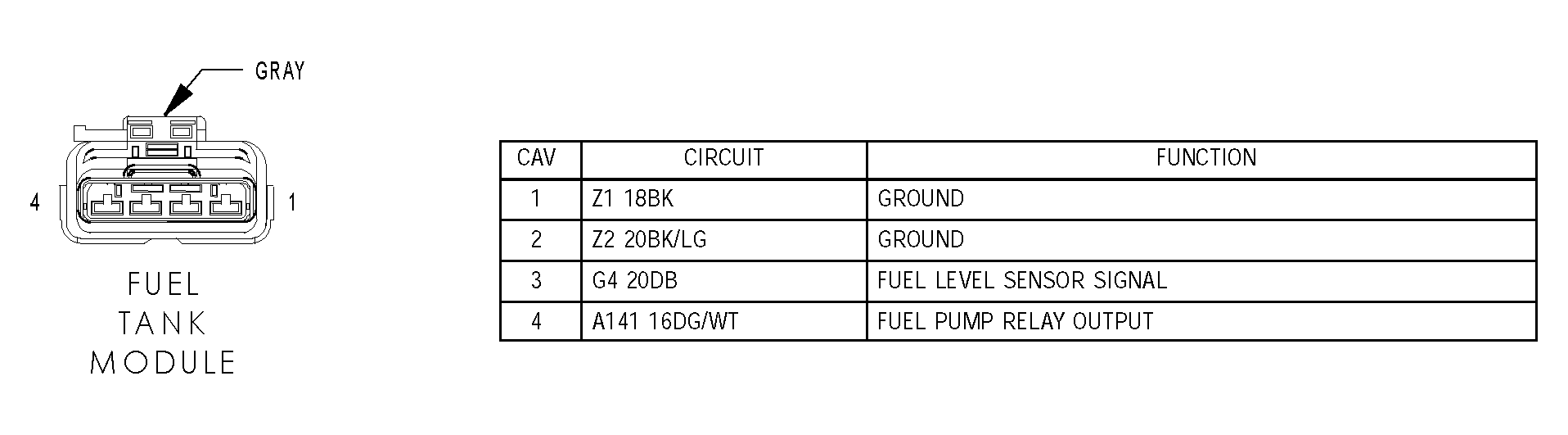

Fig 1: Identifying Fuel Tank Module - Gray 4 Way Connector Pinout
G04550339Courtesy of DAIMLERCHRYSLER CORP.
