Power Distribution Center

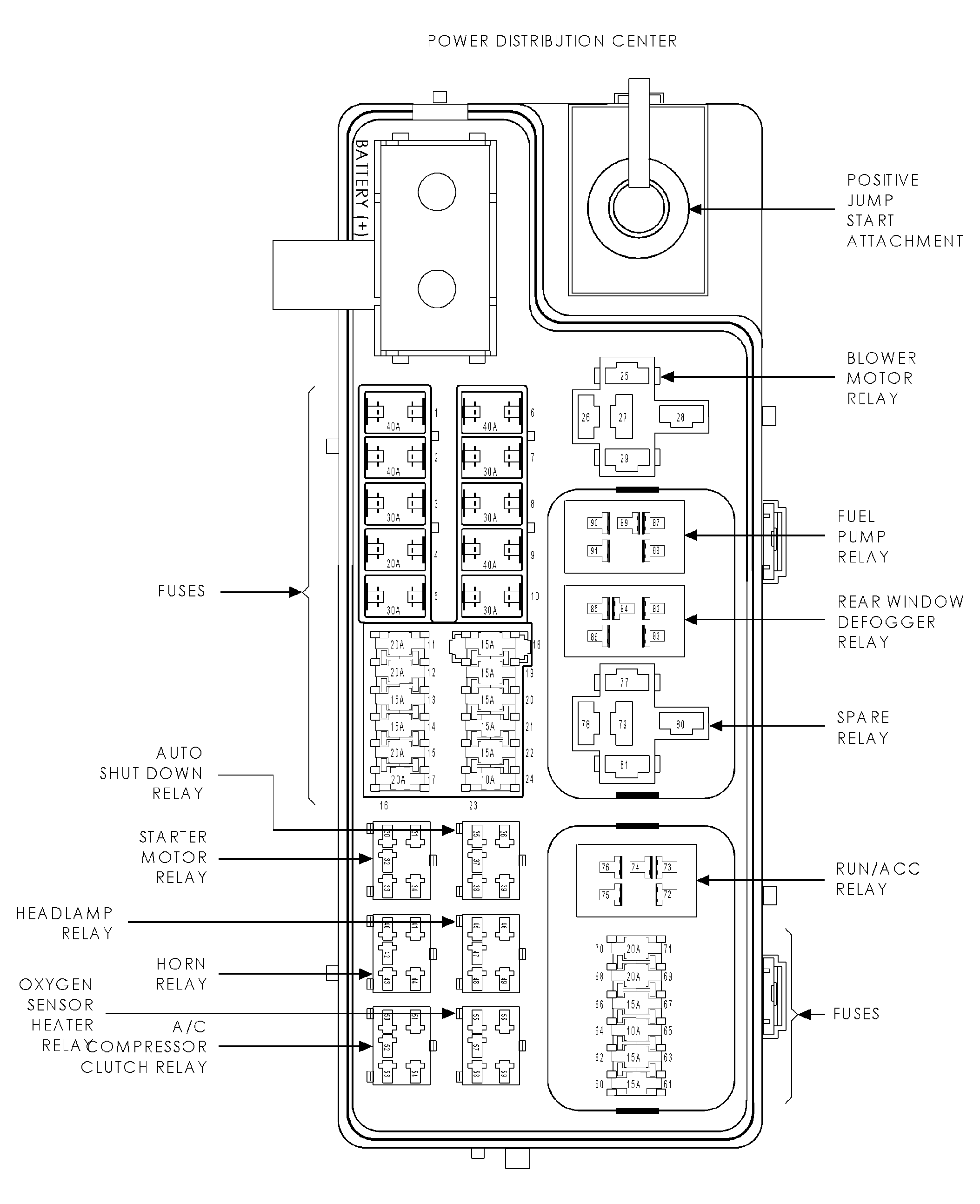

Fig 1: Identifying Power Distribution Center
G04550354Courtesy of DAIMLERCHRYSLER CORP.

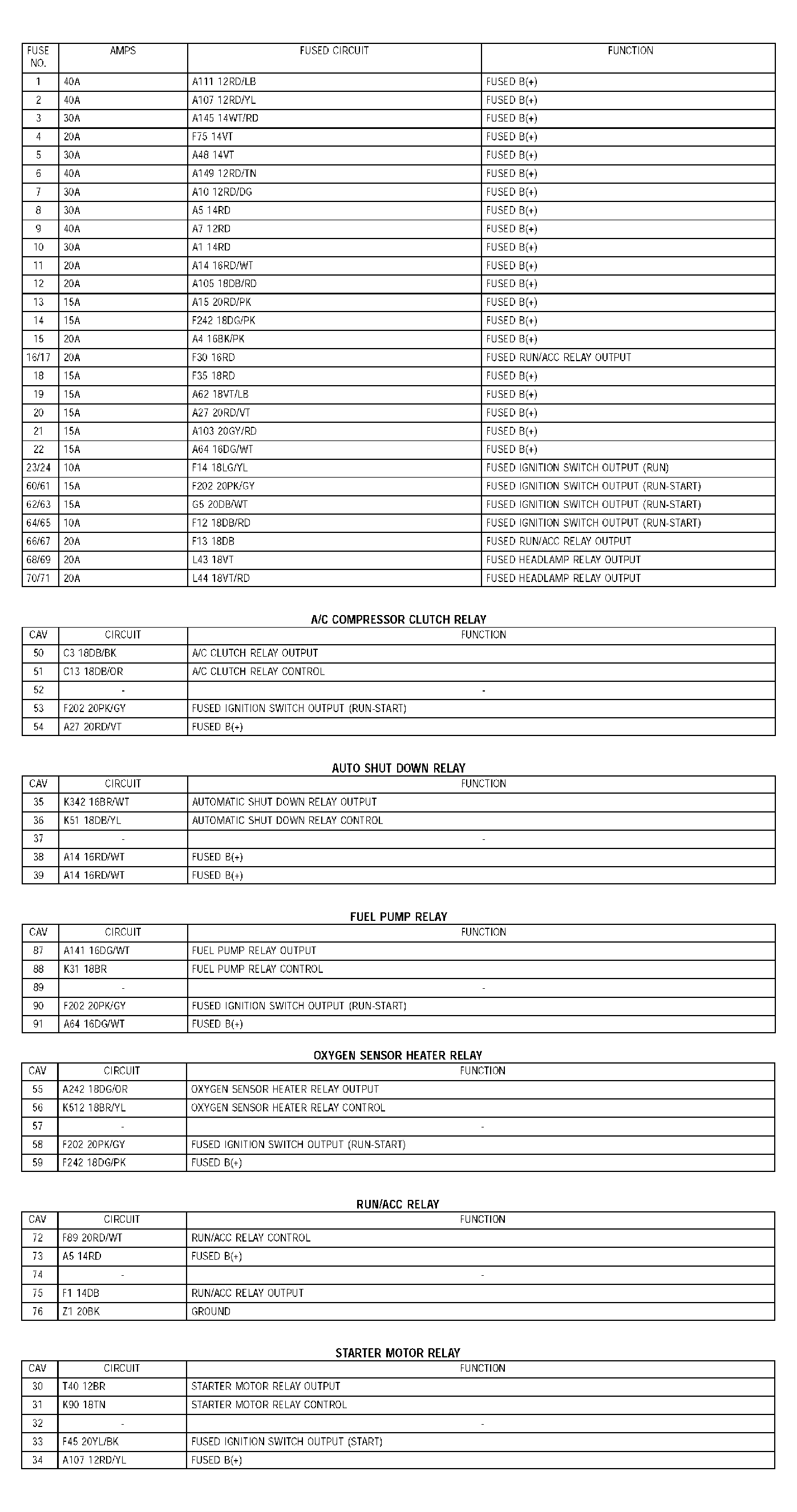

Fig 2: Identifying Power Distribution Center Fuse & Relay Charts
G04550355Courtesy of DAIMLERCHRYSLER CORP.
