Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures
›
Connector PINOUTS
›
Powertrain Control Module C2 - Black/White 32 Way
Powertrain Control Module C2 - Black/White 32 Way

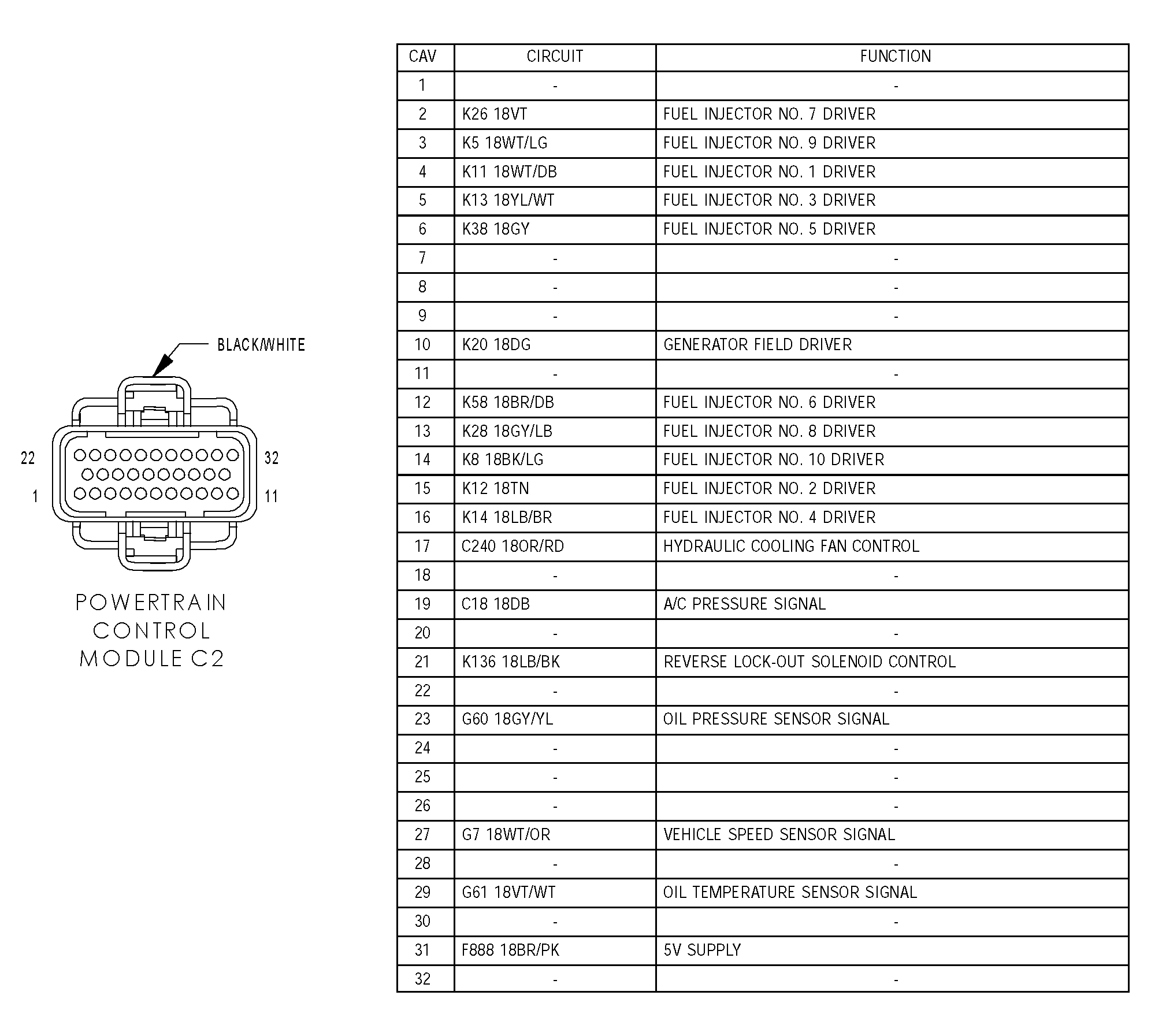

Fig 1: Identifying Powertrain Control Module C2 - Black/White 32 Way Connector Pinout
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
