Powertrain Diagnostic Procedures
›
Connector PINOUTS
›
Powertrain Control Module C3 - Black/Gray 32 Way
Powertrain Control Module C3 - Black/Gray 32 Way

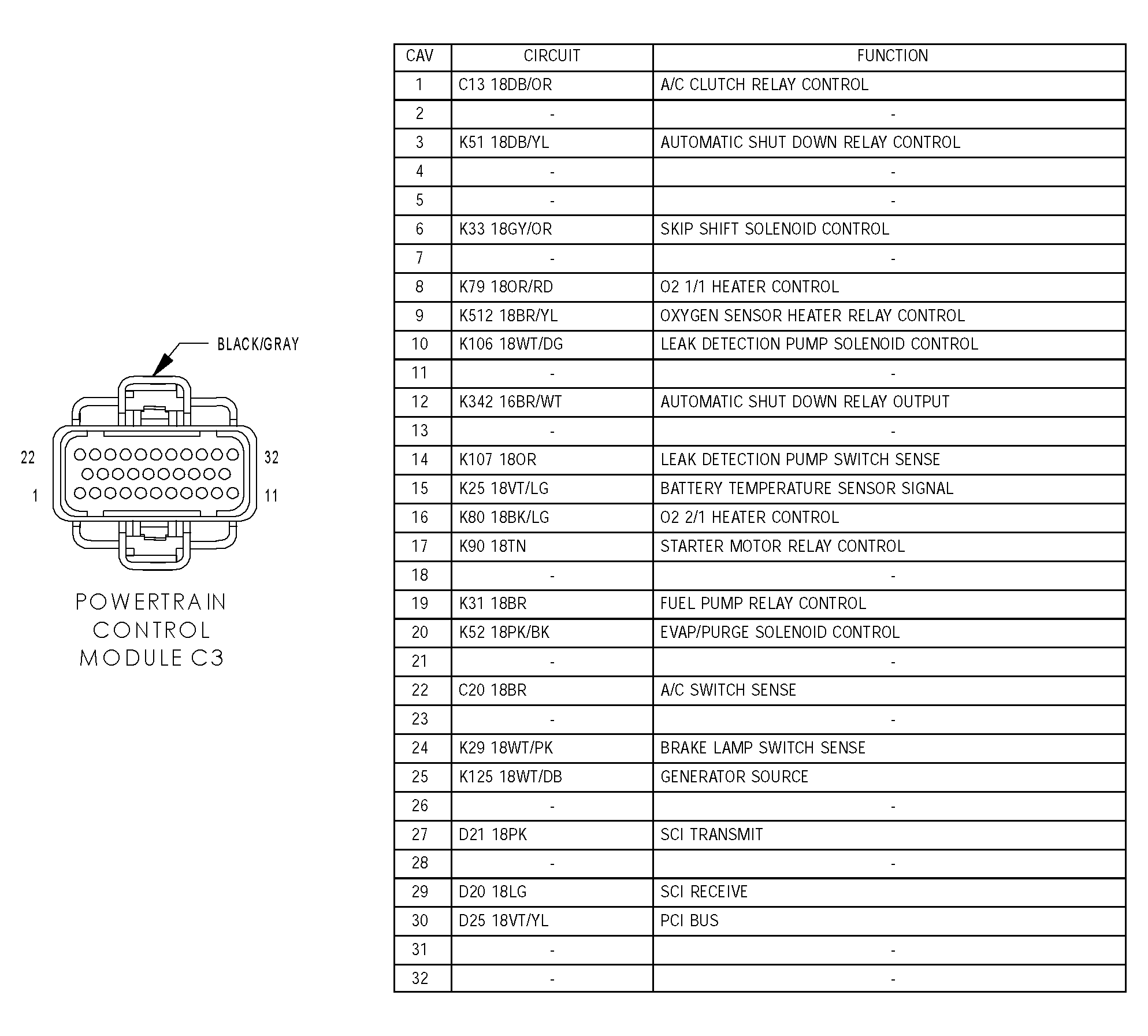

Fig 1: Identifying Powertrain Control Module C3 - Black/Gray 32 Way Connector Pinout
Courtesy of DAIMLERCHRYSLER CORP.
