Body & Frame: Windows: Interior/Exterior: DECKLID/Hatch/Liftgate/Tailgate: Handle: Removal

Fig 1: Latch Rod

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the trim panels. (Refer to BODY/LIFTGATE/TRIM PANEL - REMOVAL)
2. Disconnect the latch actuator rod (2).

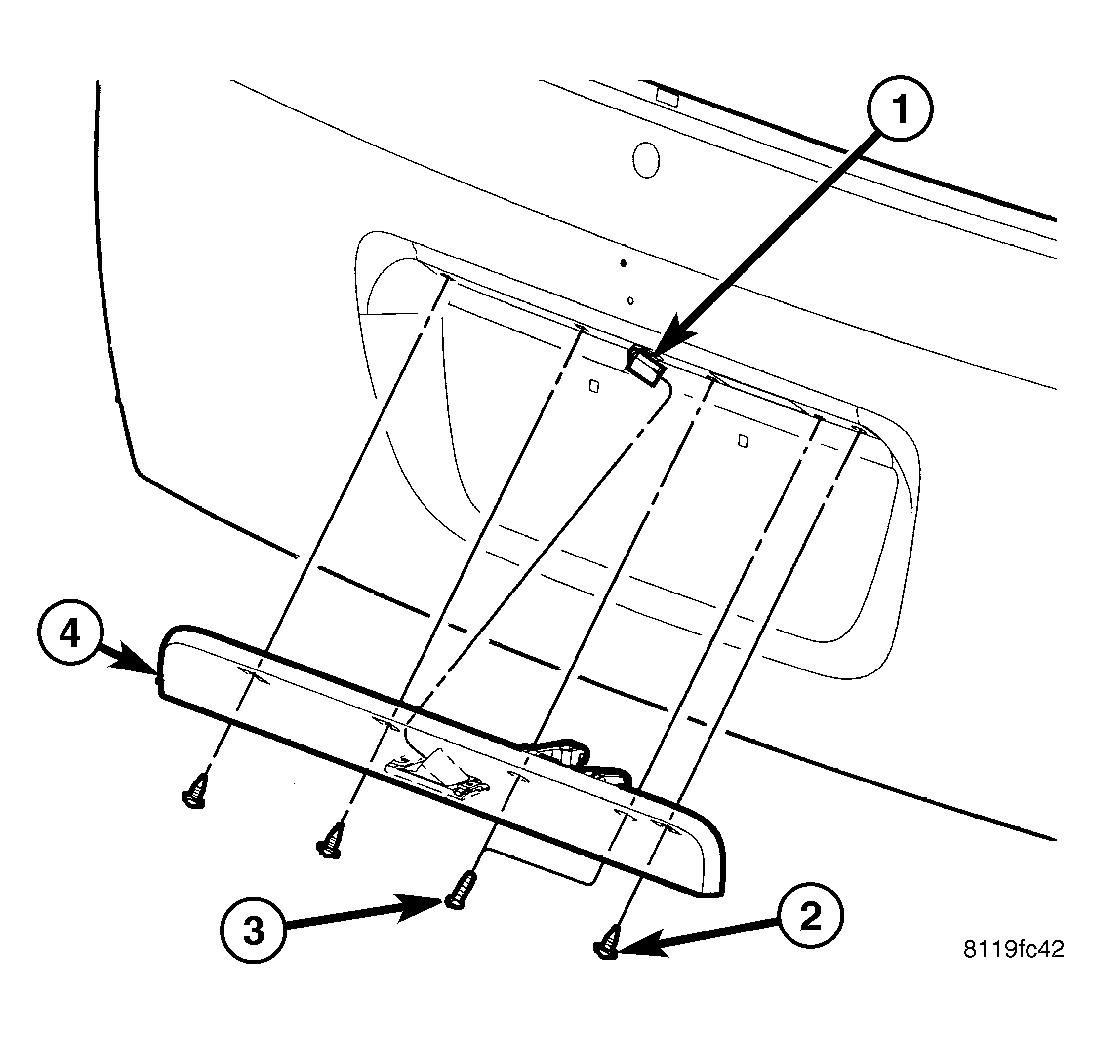

   Fig 2: Exterior Handle

   Courtesy of DAIMLERCHRYSLER CORP.
3. Remove the screws (2 & 3) and remove the handle.
4. Disconnect the electrical connector (1).
