Body & Frame: Windows: Interior/Exterior: DECKLID/Hatch/Liftgate/Tailgate: Latch: Installation

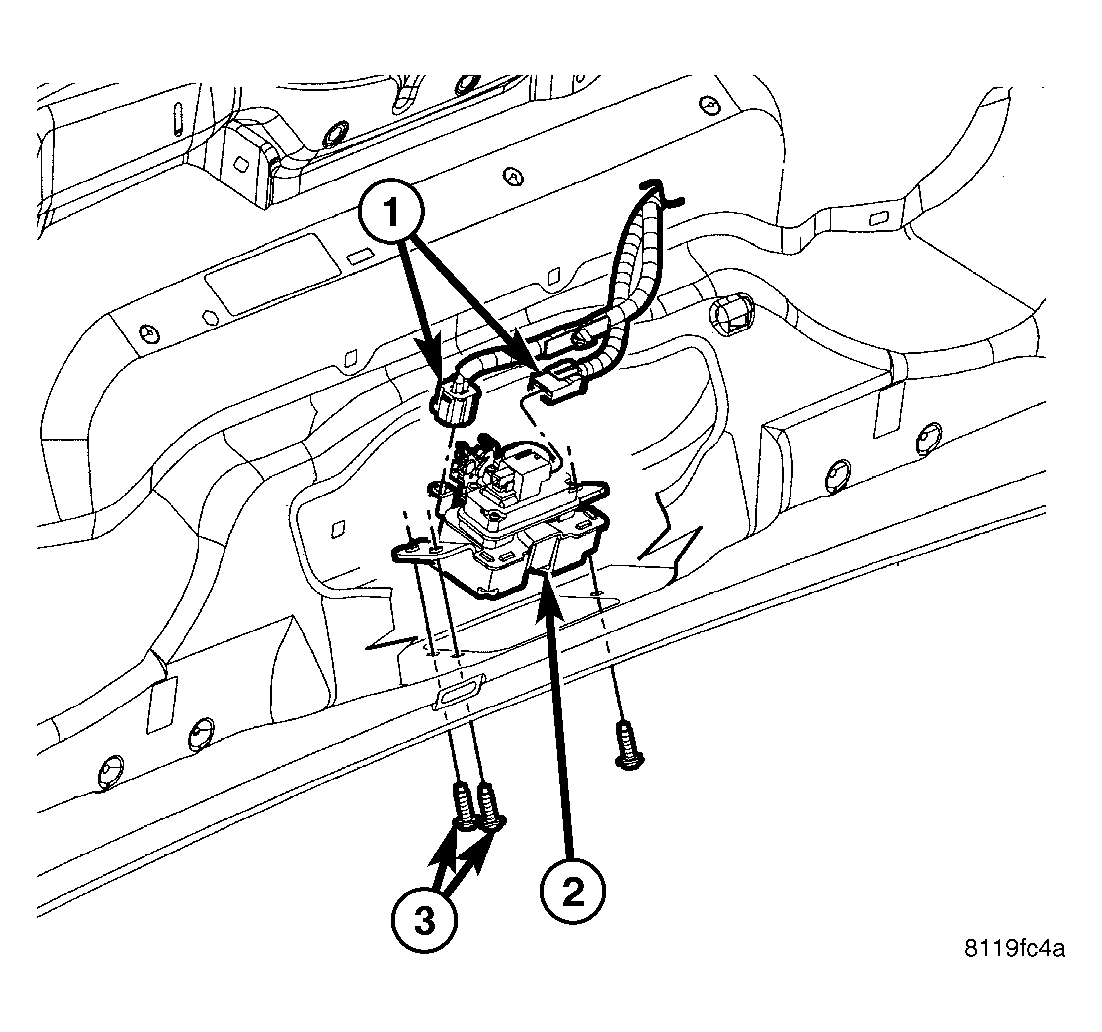

Fig 1: Latch

Courtesy of DAIMLERCHRYSLER CORP.

1. Position the latch (2) into the liftgate and install the screws (3).
2. Tighten the screws to 11 N.m (95 in. lbs.).
3. Connect the electrical connectors (1).

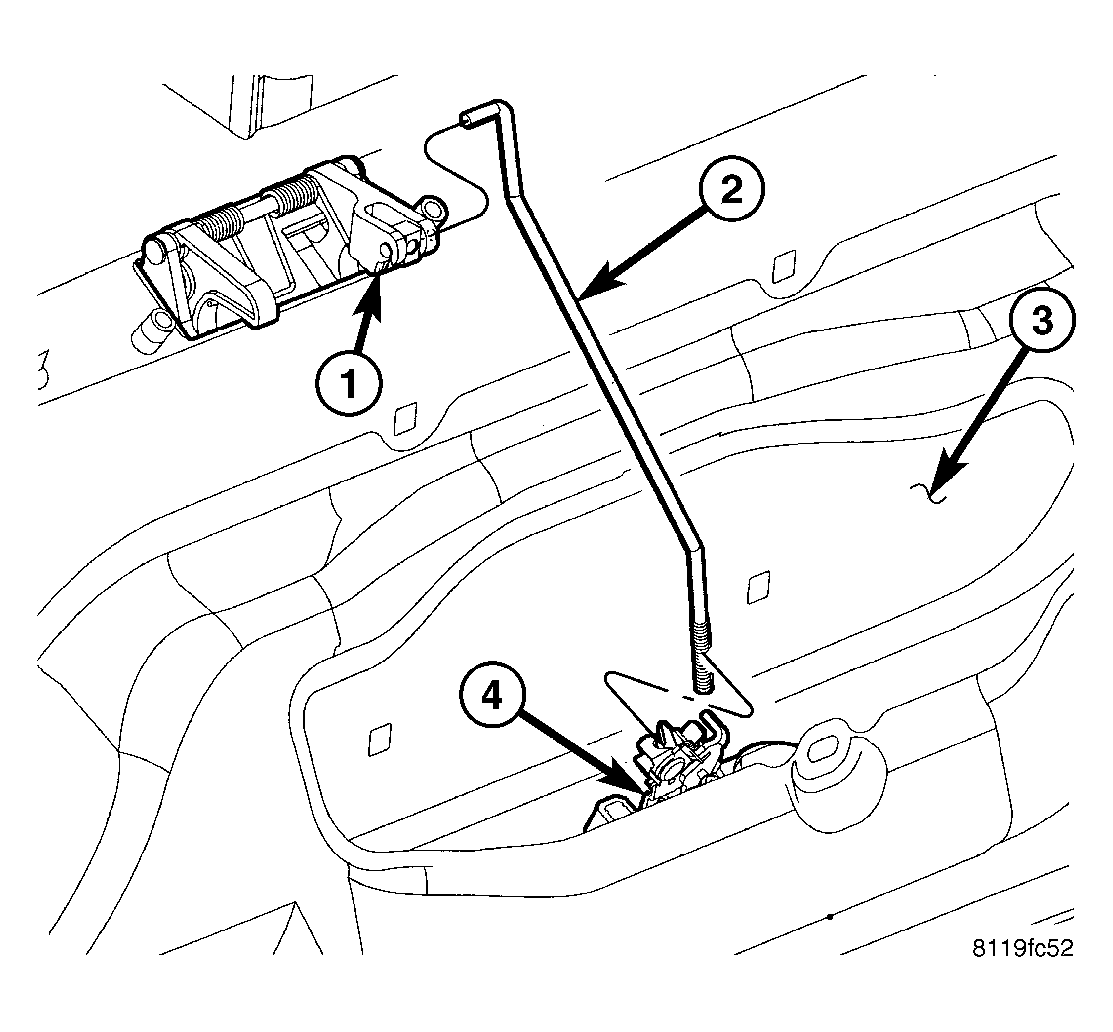

   Fig 2: Latch Rod

   Courtesy of DAIMLERCHRYSLER CORP.

   Connect the latch actuator rod (2) to the exterior handle (1) and the latch (4).

4. Install the trim panels. (Refer to BODY/LIFTGATE/TRIM PANEL - INSTALLATION)
