Body & Frame: Windows: Interior/Exterior: DECKLID/Hatch/Liftgate/Tailgate: Panel-Trim: Removal

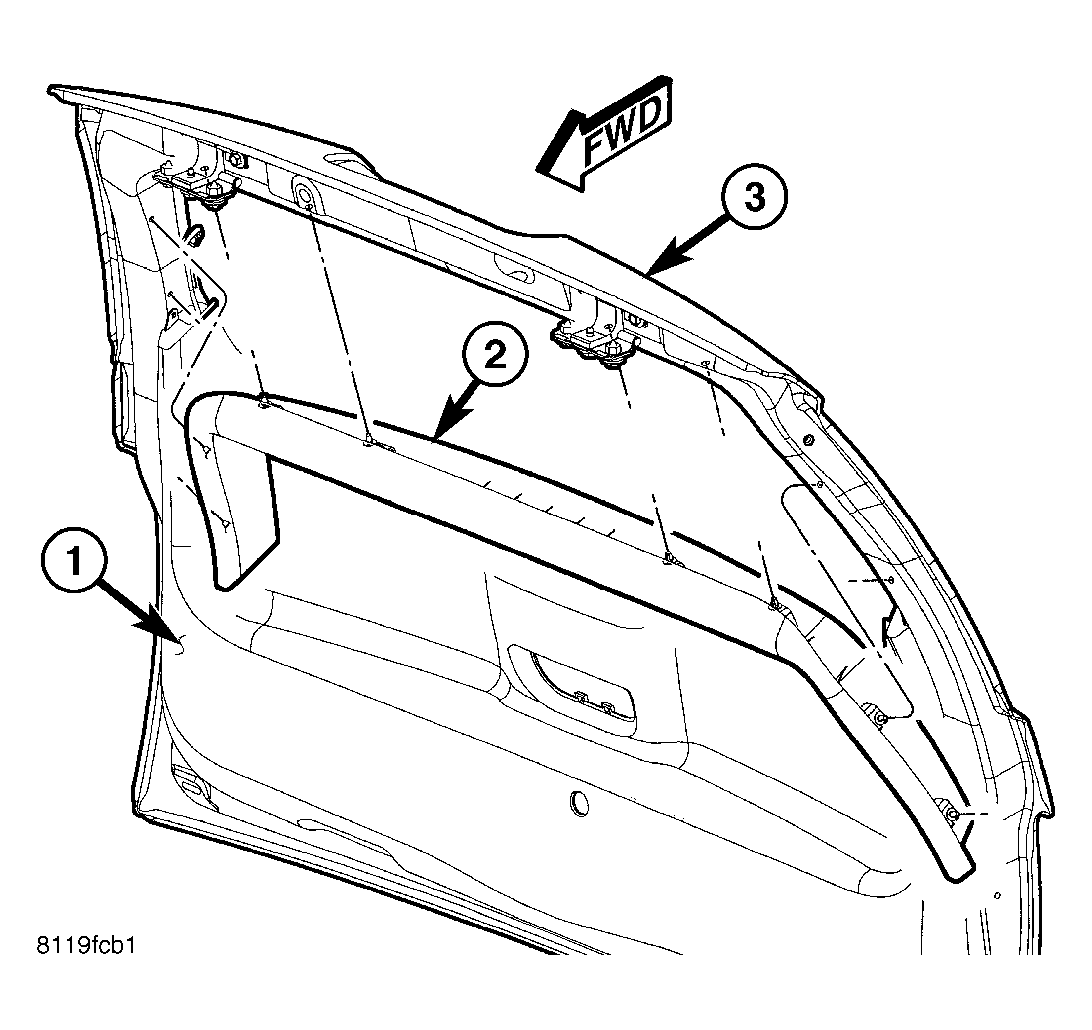

Fig 1: Upper Trim

Courtesy of DAIMLERCHRYSLER CORP.

1. Using a trim stick C-4829-A or equivalent, separate the pushpin fasteners and remove the upper trim panel (2).

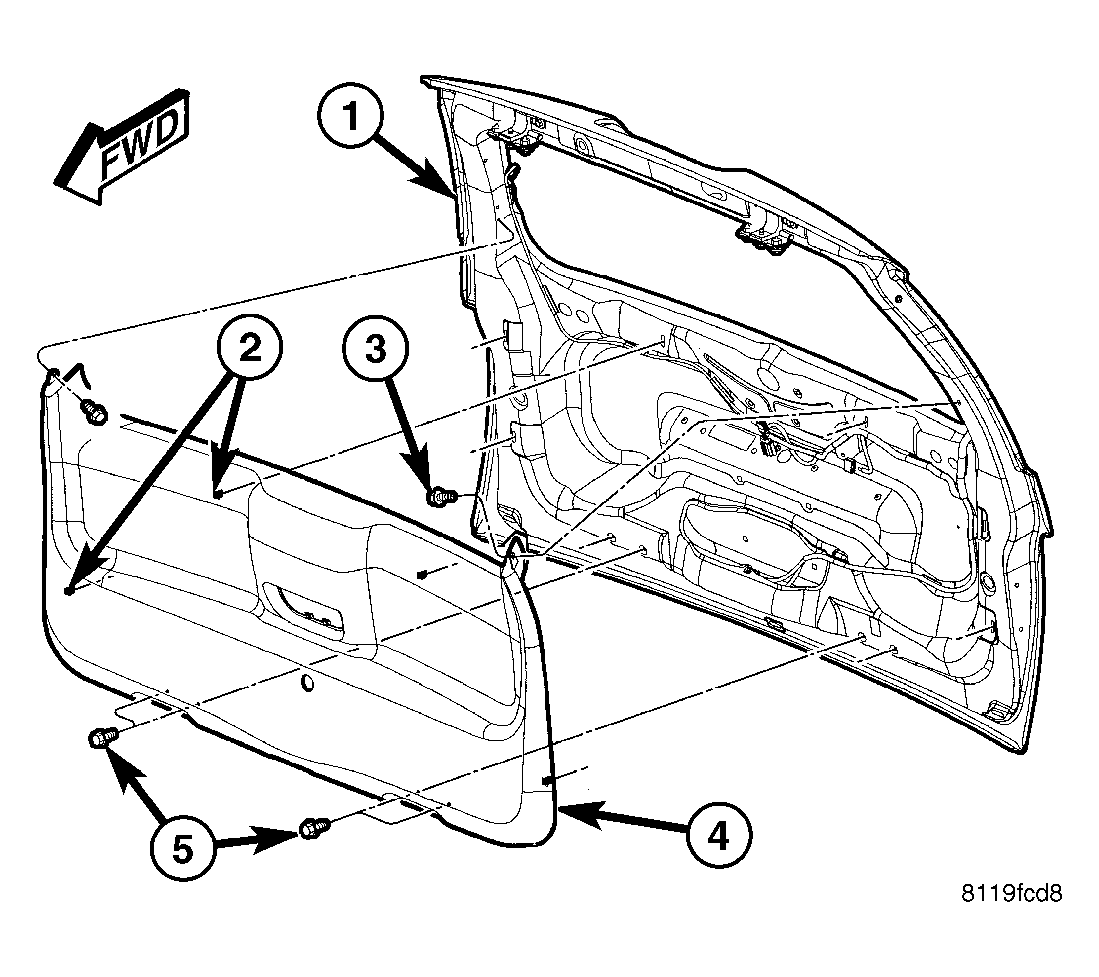

   Fig 2: Lower Trim Panel

   Courtesy of DAIMLERCHRYSLER CORP.
2. Remove the two upper screws (3) and the four lower screws (5).
3. Remove the lower trim panel (4) and disconnect the electrical connector.
