Body & Frame: Windows: Interior/Exterior: Sunroof: Assembly-Module: Removal

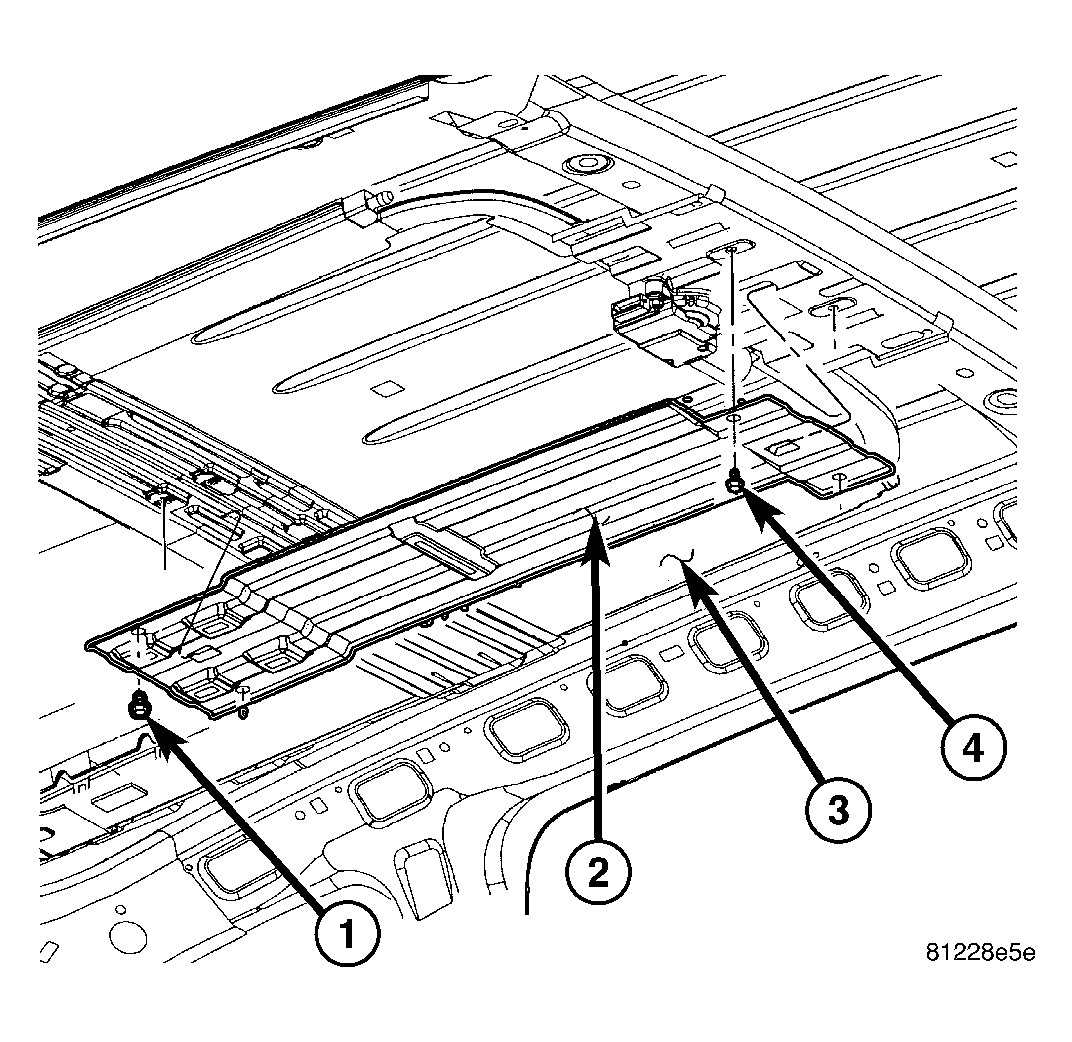

Fig 1: Digital Video Display Support Bracket

Courtesy of DAIMLERCHRYSLER CORP.

1. Move glass panel to the fully closed position.
2. Disconnect and isolate the battery negative cable.
3. Remove headliner (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
4. Remove the bolts (1 & 4) and remove the video display support bracket, if equipped.

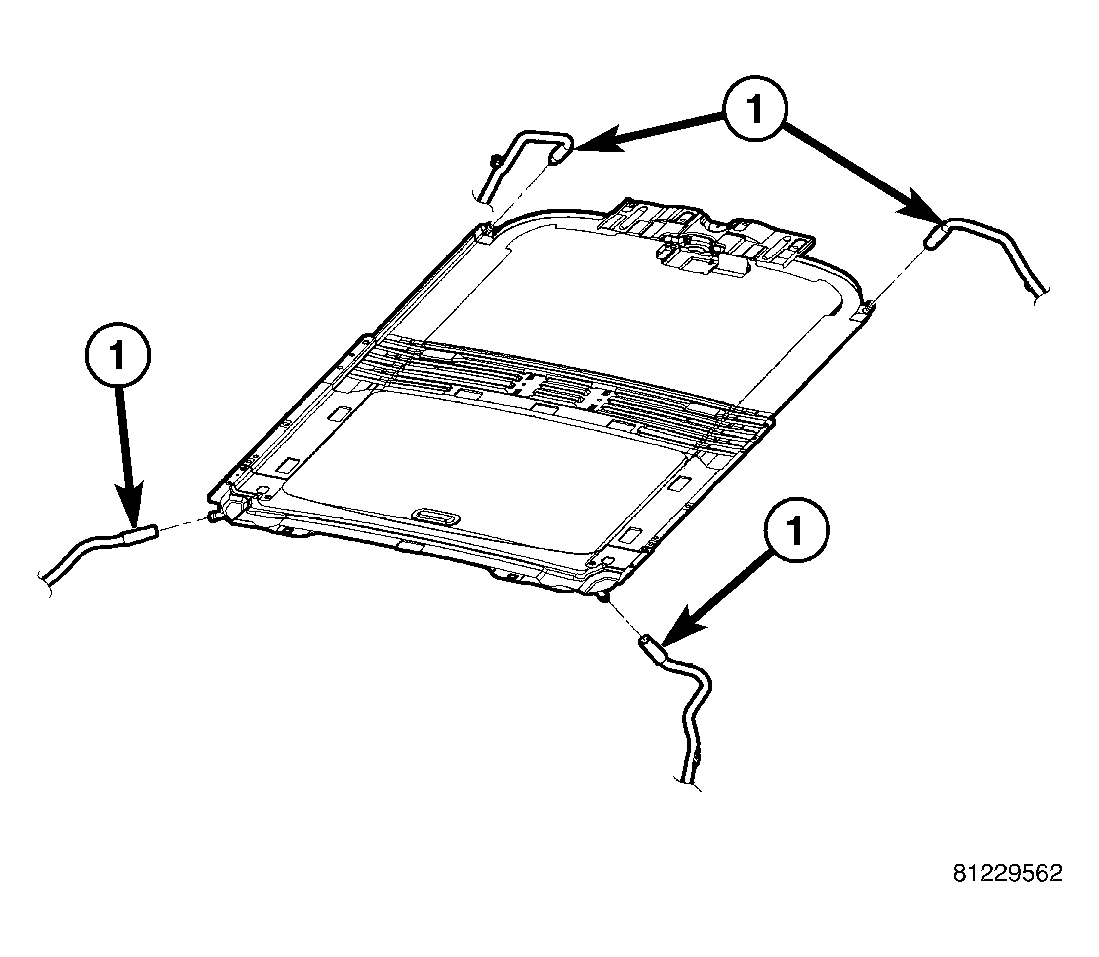

   Fig 2: DRAIN TUBES

   Courtesy of DAIMLERCHRYSLER CORP.
5. Disconnect the four drain tubes (1) from sunroof housing.

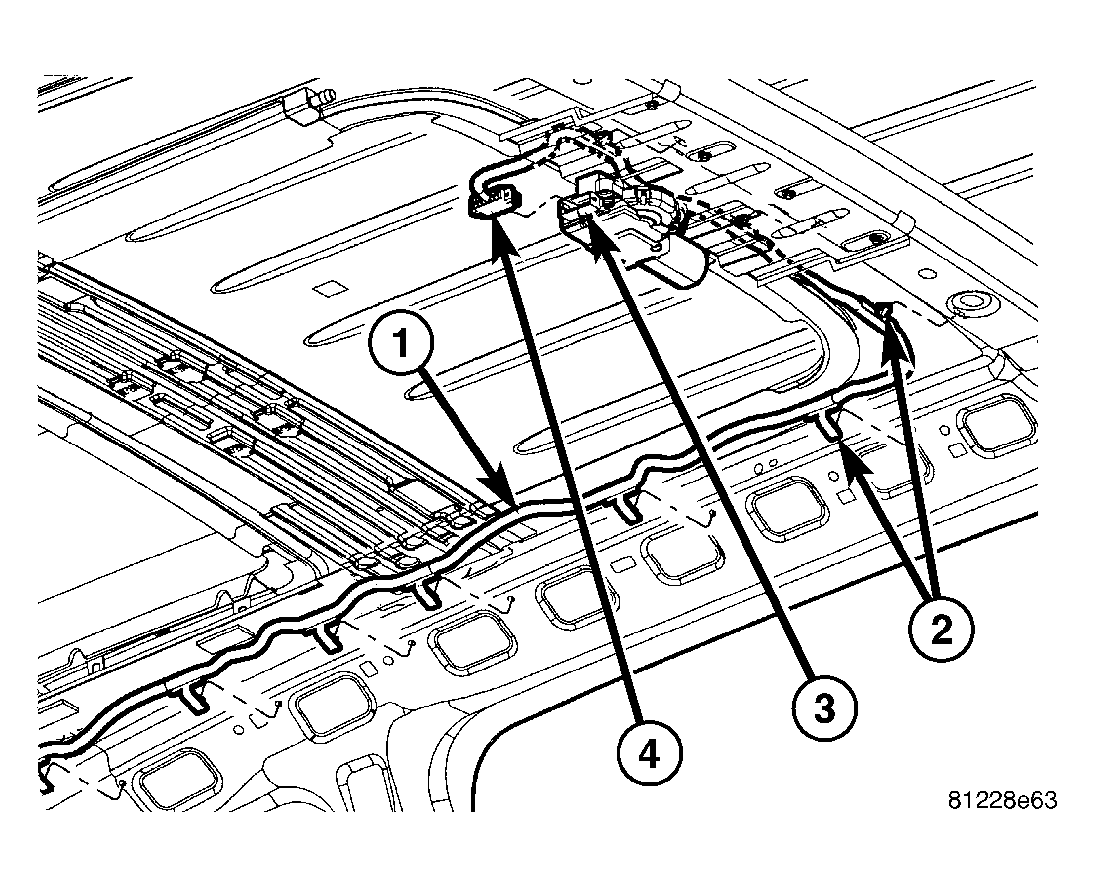

   Fig 3: SUNROOF WIRE HARNESS ELECTRICAL CONNECTOR

   Courtesy of DAIMLERCHRYSLER CORP.
6. Disconnect the sunroof wire harness (1) electrical connector (3) and (4).

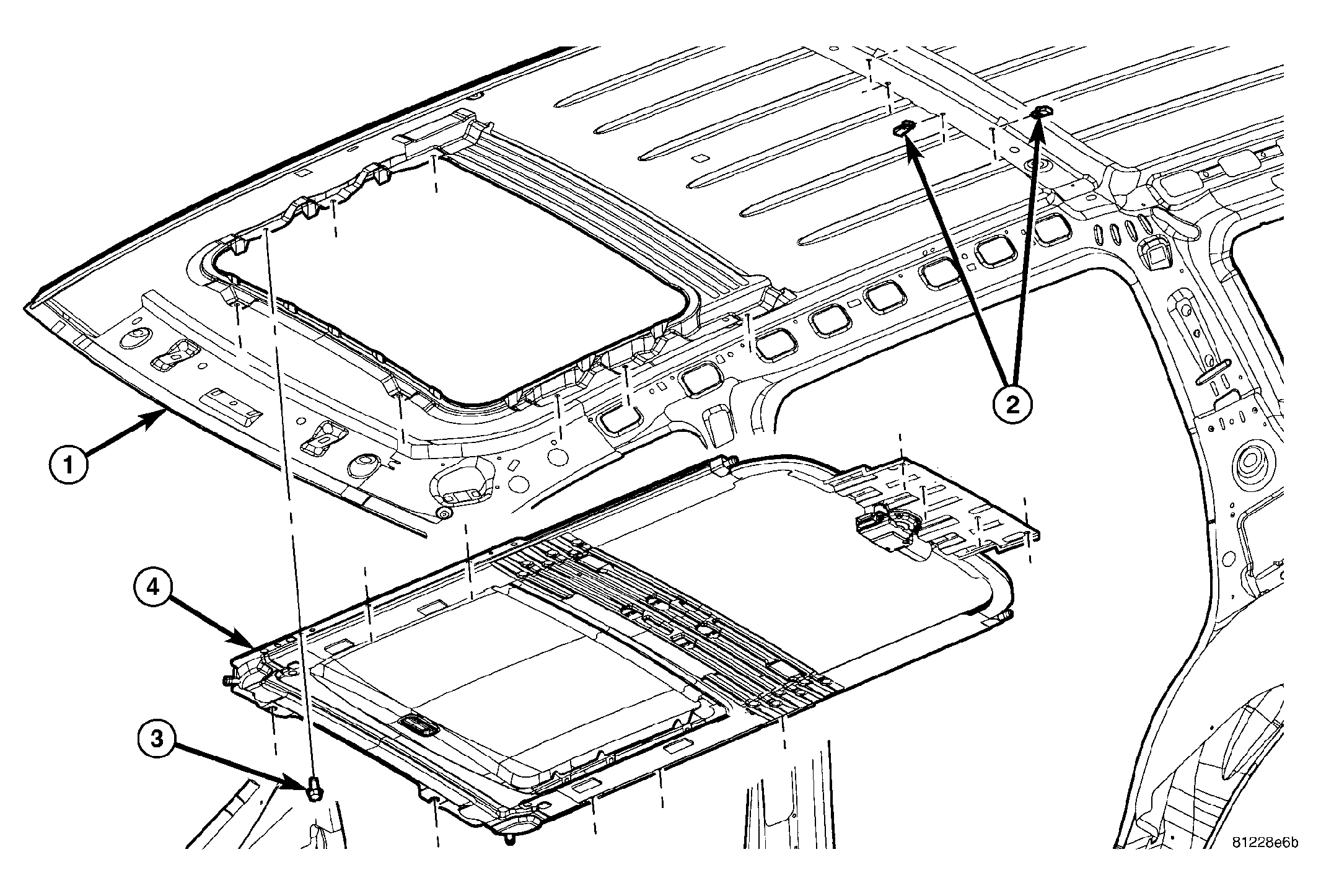

   Fig 4: SUNROOF ASSEMBLY

   Courtesy of DAIMLERCHRYSLER CORP.
7. Loosen fasteners (3) attaching sunroof assembly.
8. With the aid of a helper, support the sunroof and remove the fasteners attaching sunroof assembly (4) to roof panel (1).
9. Remove the sunroof (4) from vehicle.
