Junction Block: Removal

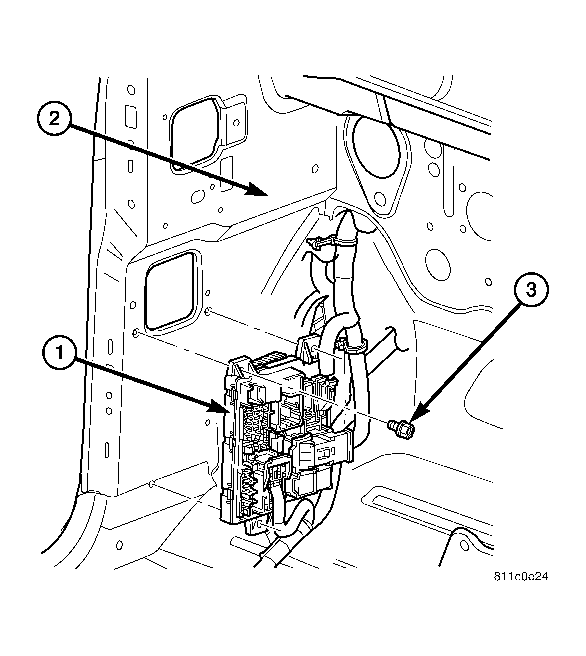

Fig 1: Locating Junction Block
GC0010162Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the cowl trim cover (Refer to PANEL-COWL TOP ).
  3. Remove the mounting fasteners (3).
  4. Disconnect the electrical harness connectors and remove Junction Block (1).
  5. Transfer components as necessary.
