Power Distribution Center: Description

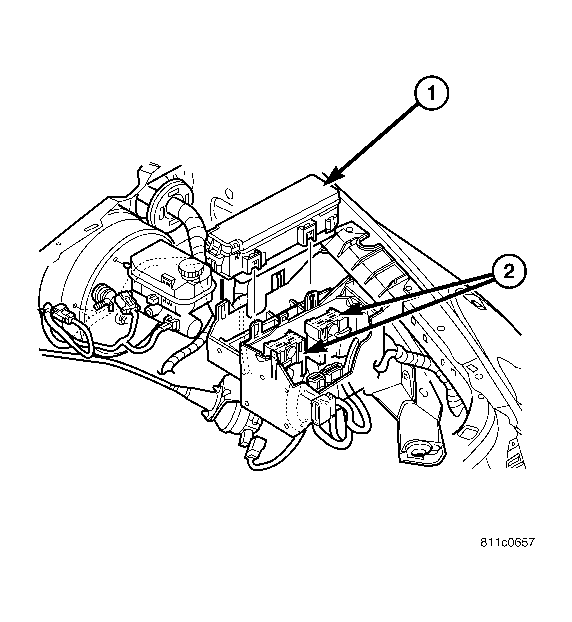

Fig 1: Identifying Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.

All of the electrical current distributed throughout this vehicle is directed through the Power Distribution Center (PDC) (1). The molded plastic PDC housing is located in the left front corner of the engine compartment, just behind the battery. The PDC houses the generator cartridge fuse and maxi-type cartridge fuses, which replace all in-line fusible links. The PDC also houses blade-type fuses, relays and a fuse puller.
