Engine Control Module

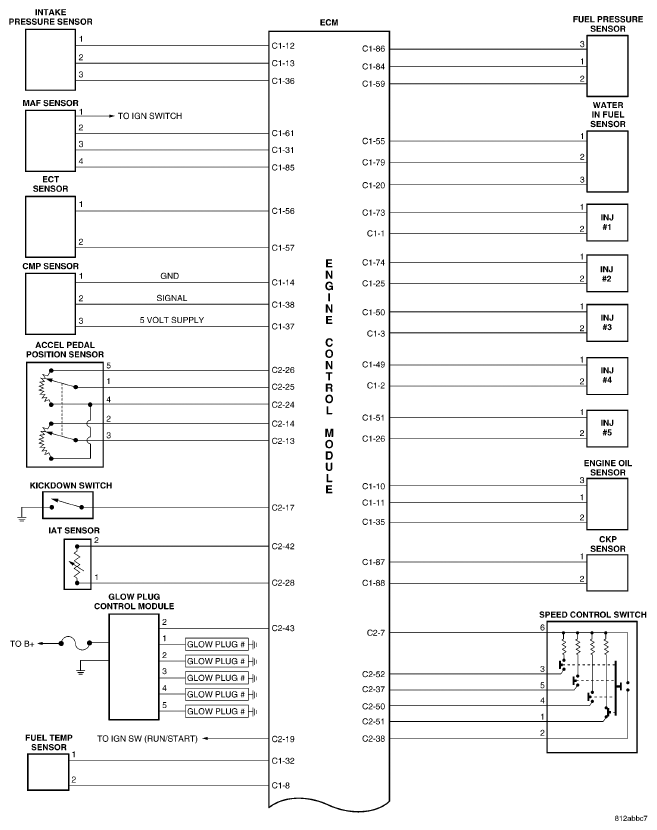

Fig 1: Schematic Diagrams - Engine Control Module (1 of 2)

G04762918

Courtesy of CHRYSLER

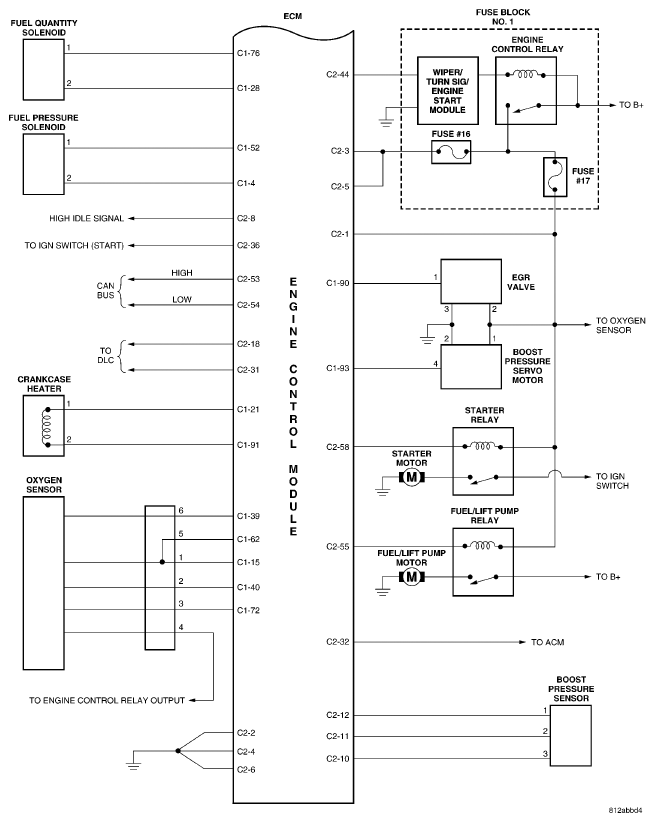

Fig 2: Schematic Diagrams - Engine Control Module (2 of 2)

G04762919

Courtesy of CHRYSLER
