Sentry Key Remote Entry Module Transponder Ring

  1. Maneuver wiring through instrument panel. See Figure.
  2. Connect the transponder electrical connect or to the SKREEM. See Figure.
  3. Install the top cover - cluster (Refer to BODY/INSTRUMENT PANEL/TOP COVER - CLUSTER - INSTALLATION)

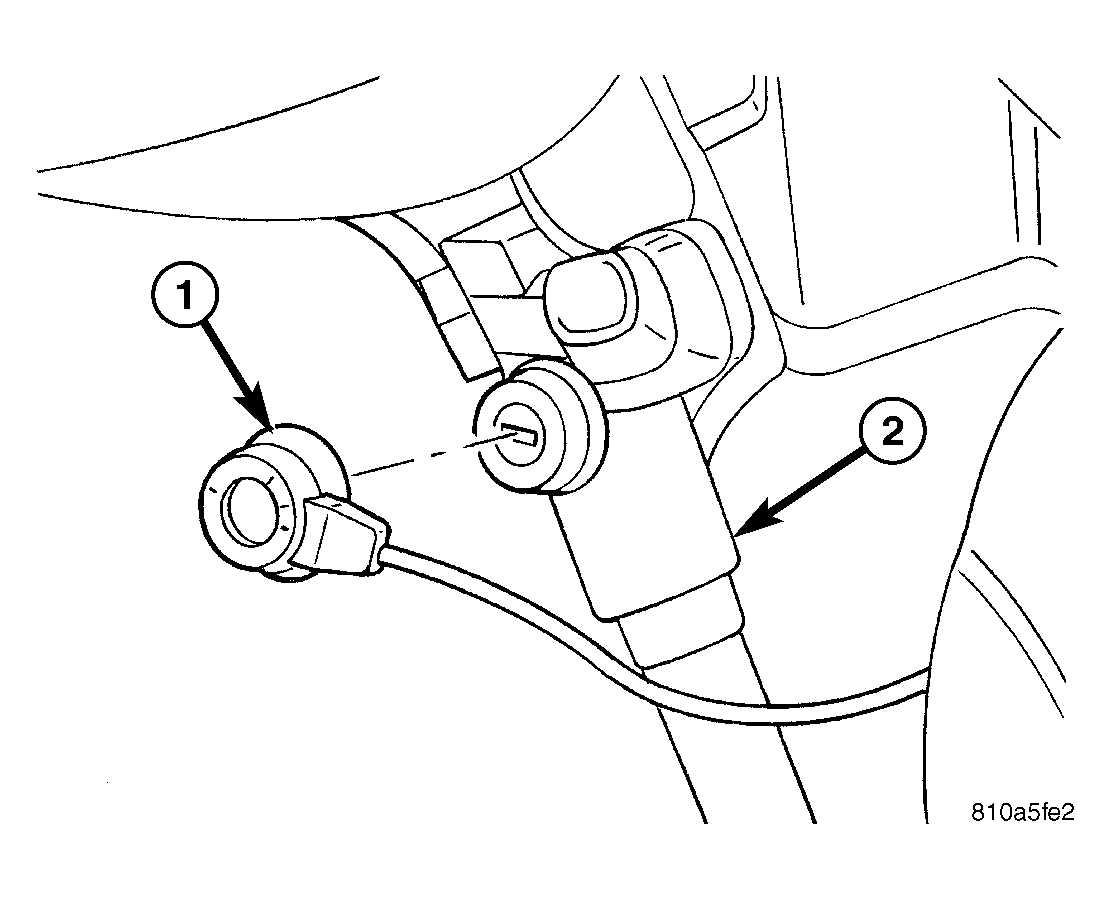

  4. Snap the SKREEM transponder in place around the ignition cylinder. See Figure.
  5. Install the steering column shrouds.
  6. Connect the battery negative cable.
  7. Verify vehicle and system operation.
  8. Close hood.
