Controller Antilock Brake
Controller Antilock Brake

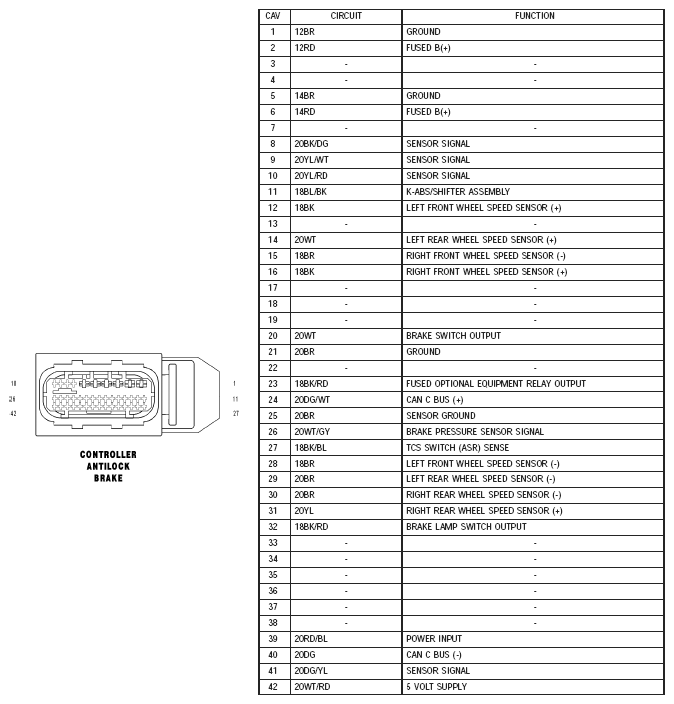

Fig 1: Identifying Controller Antilock Brake Connector Pinouts
Courtesy of CHRYSLER
