Crankshaft Position Sensor: Removal

The sensor is located at the rear lower passenger side of motor. See Fig 1.

1. Disconnect electrical connector from crankshaft position sensor. See Fig 2.
2. Remove sensor mounting bolt.
3. Pull sensor out. A light tap to top of sensor may ease removal.

Fig 1: Crankshaft Position Sensor - 8.3L

Courtesy of DAIMLERCHRYSLER CORP.

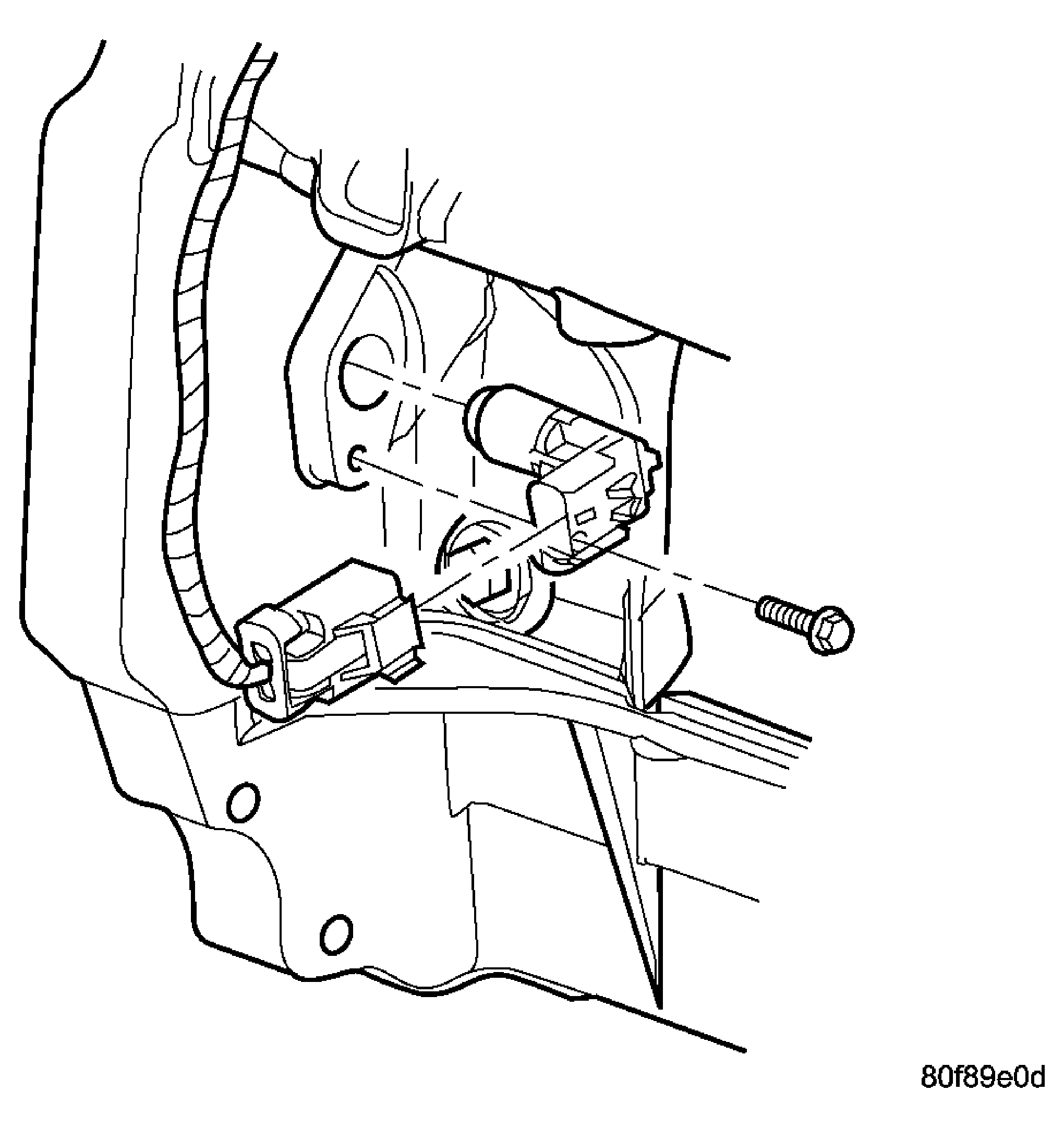

Fig 2: Crankshaft Position Sensor Assembly - 8.3L

Courtesy of DAIMLERCHRYSLER CORP.
