Power Distribution Center

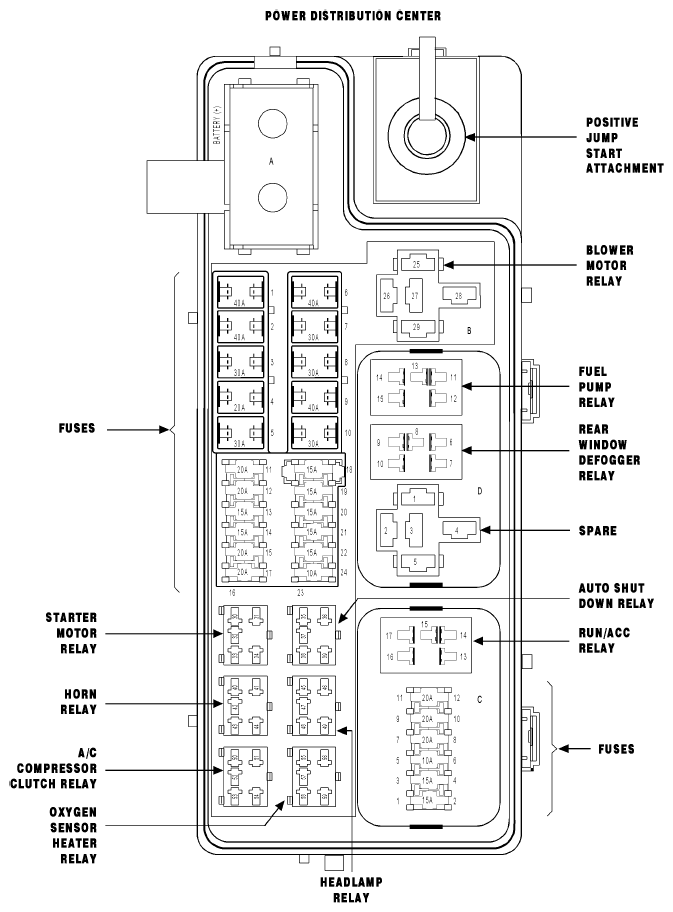

Fig 1: Identifying Power Distribution Center
G04763753Courtesy of CHRYSLER

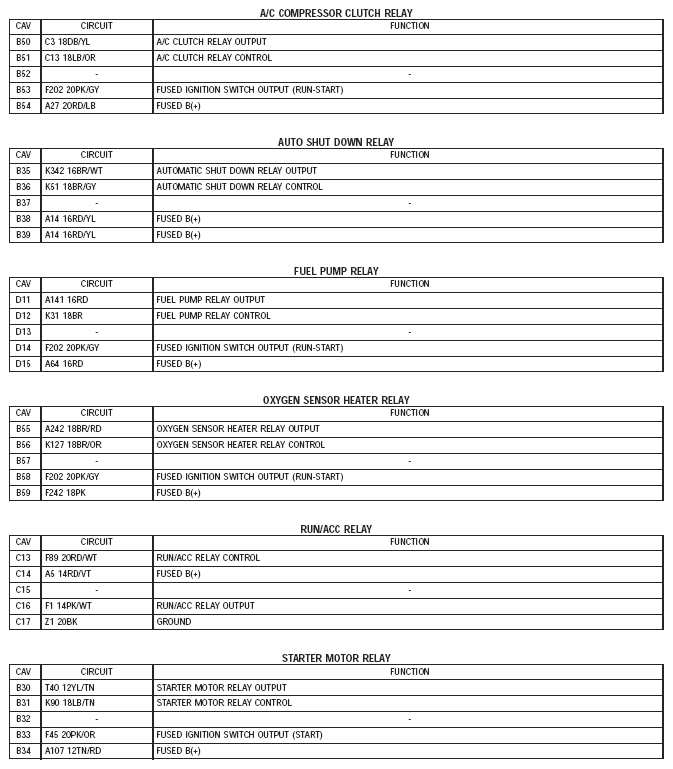

Fig 2: Power Distribution Center Relay Connector Pinouts Reference Chart
G04763754Courtesy of CHRYSLER
