Schematic Diagrams

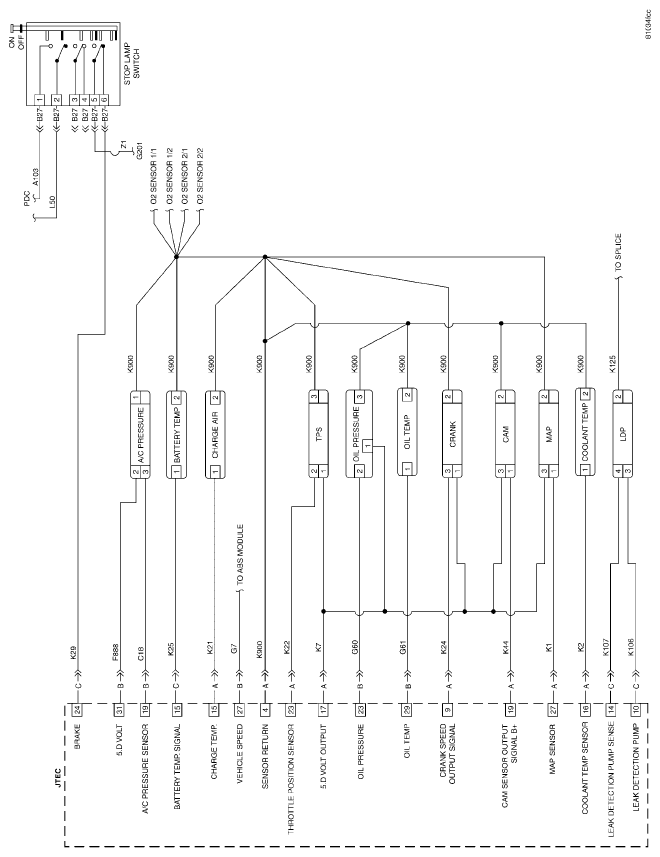

Fig 1: Engine Performance Schematic Diagrams (1 Of 3)

G04763762

Courtesy of CHRYSLER

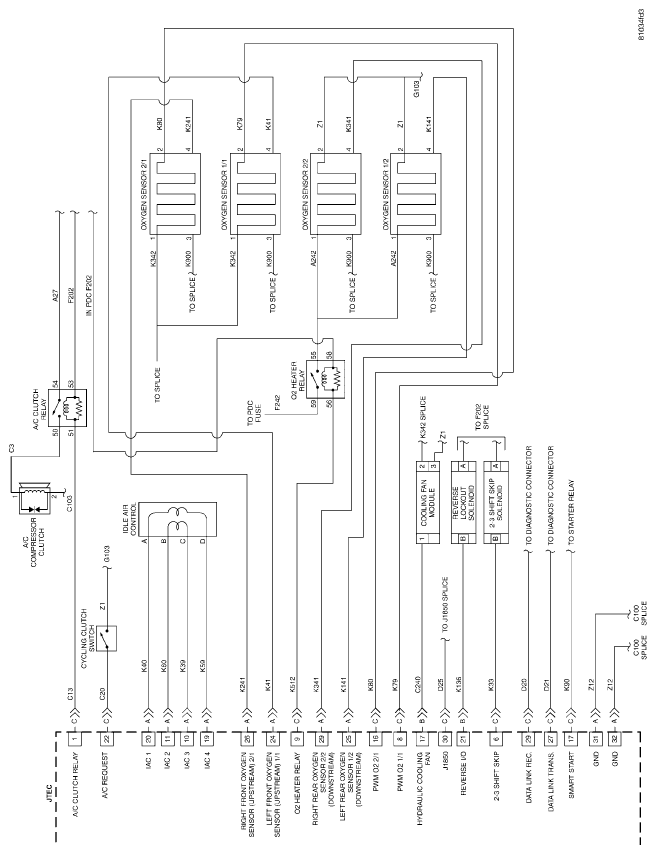

Fig 2: Engine Performance Schematic Diagrams (2 Of 3)

G04763763

Courtesy of CHRYSLER

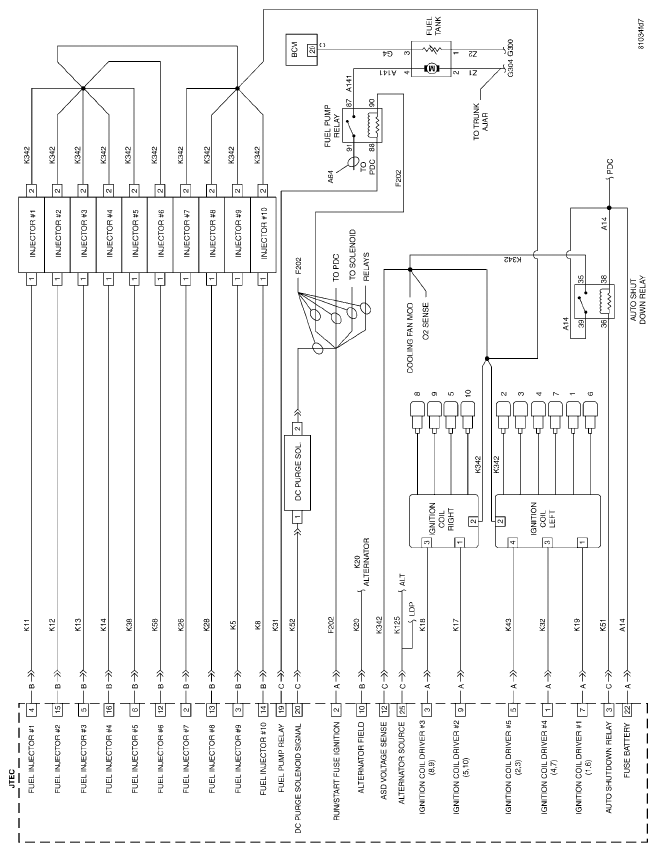

Fig 3: Engine Performance Schematic Diagrams (3 Of 3)

G04763764

Courtesy of CHRYSLER
