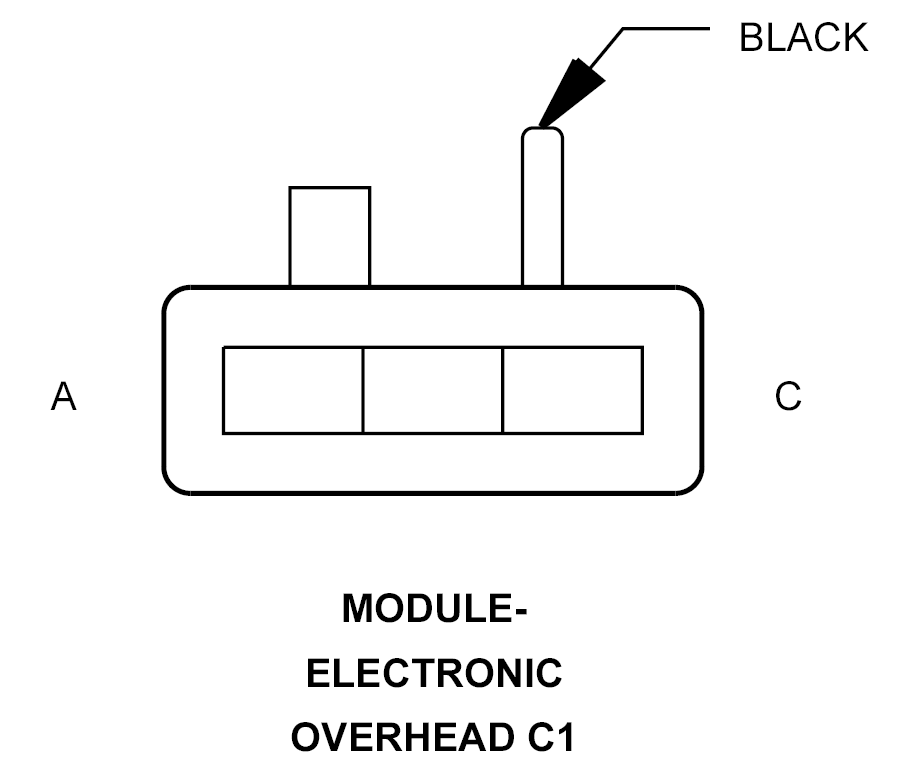

Electronic Overhead Module Connector End View (C1)

MODULE-ELECTRONIC OVERHEAD C1 - BLACK 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
A	M27 20YL/LB	READING/RAIL LAMPS DRIVER
B	Z936 20BK/LB	GROUND
C	M24 20YL/WT	COURTESY LAMPS DRIVER
