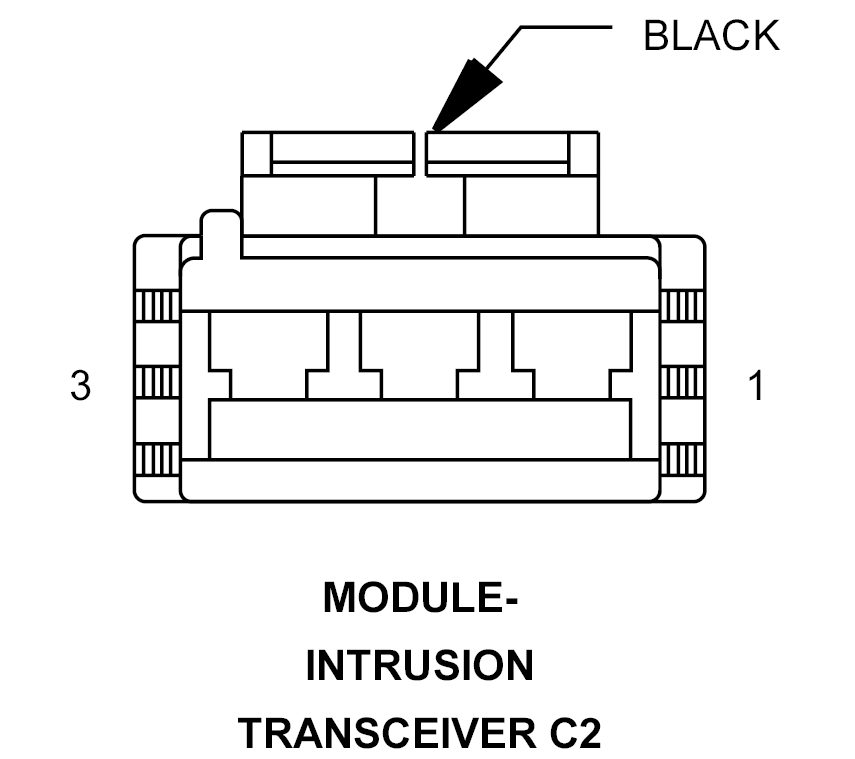

Intrusion Transceiver Module Connector End View (C2)

MODULE-INTRUSION TRANSCEIVER C2 - BLACK 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	M24 20YL/WT	COURTESY LAMPS DRIVER
3	Z941 20BK/WT	GROUND
