Sensor-Rear Camshaft Position

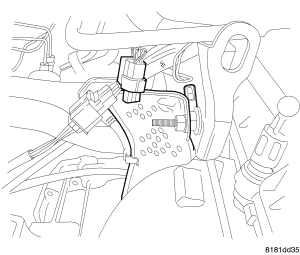

Fig 1: REAR CAM SENSOR SHIELD INSTALLED
GC0053381Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Disconnect electrical connector at sensor.
  3. Remove nut retaining heat shield.

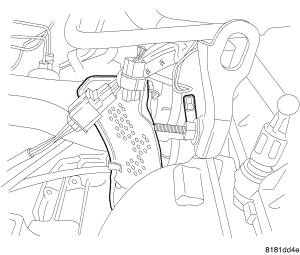

    Fig 2: REAR CAM SENSOR SHIELD REMOVED
    GC0053382Courtesy of CHRYSLER LLC
  4. Pull heat shield out to uncover sensor.
  5. Remove mounting bolt.
    Fig 3: CAM SENSOR
    GC0053380Courtesy of CHRYSLER LLC
  6. Remove sensor.
