Diesel Engine

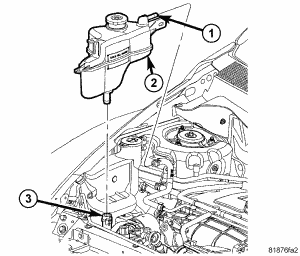

Fig 1: COOLANT CONTAINER - DIESEL ENGINE

Courtesy of CHRYSLER LLC

1 - RETURN FITTING

2 - PRESSURE CONTAINER

3 - COOLANT HOSE

Lower pressure container (2) into engine compartment and connect coolant hose (3) at bottom of pressure container (2).
Position container (2) and install mounting bolts. Tighten to 3 N.m (40 lbs. in.).
Connect coolant return hose to coolant recovery container (2).
Refill cooling system. See STANDARD PROCEDURE .
