Power Liftgate Control Module
Courtesy of CHRYSLER LLC
- Disconnect and isolate the battery negative cable.
- Remove the left quarter trim panel from the vehicle. Refer to REMOVAL
.

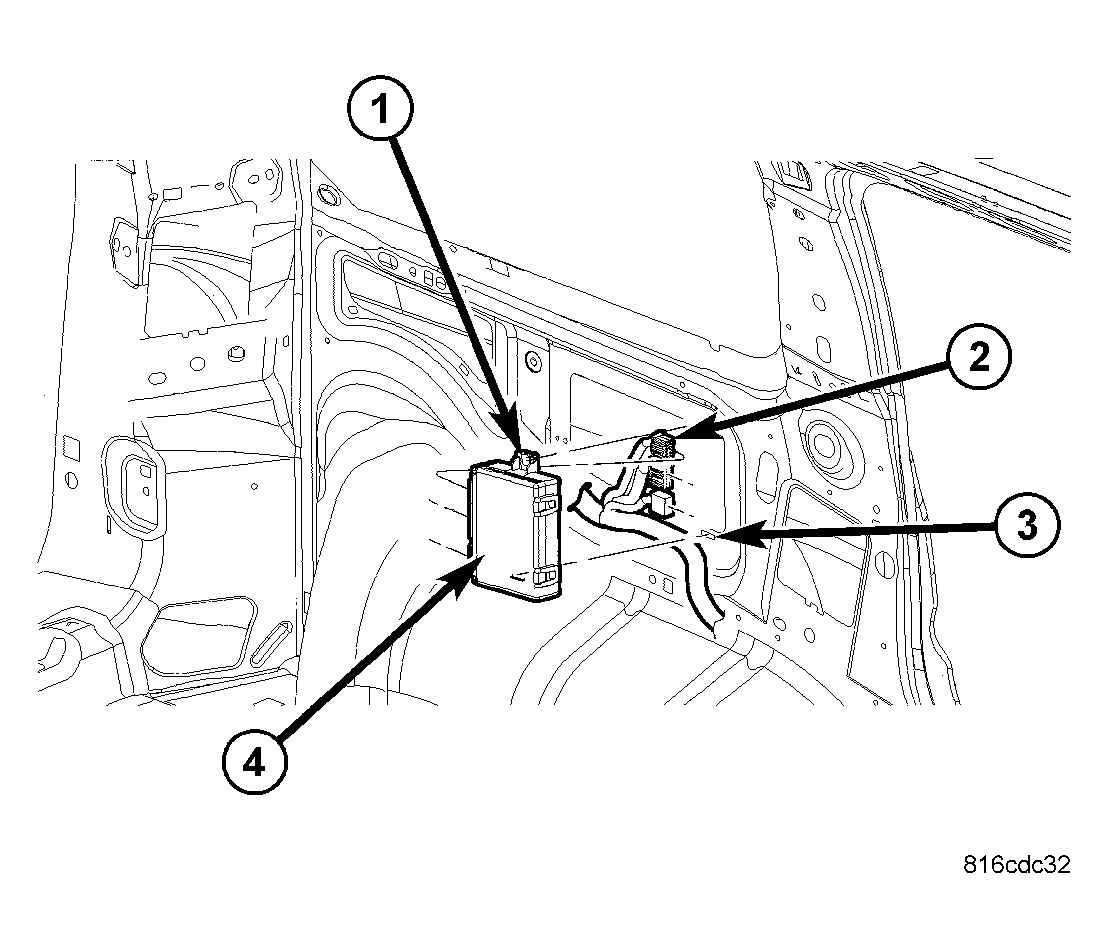

- Disconnect the wire harness connectors (2) from the power liftgate control module (4).
- Using molding remover C-4829-A gently pry the clip (1) out of the retaining hole holding the power liftgate control module (4) to the quarter panel.
- Tilt the top of the module (4) away from the quarter panel and lift upward to disengage the mounting tab from the locating slot (3).
- Remove the power liftgate control module (4) from the vehicle.
